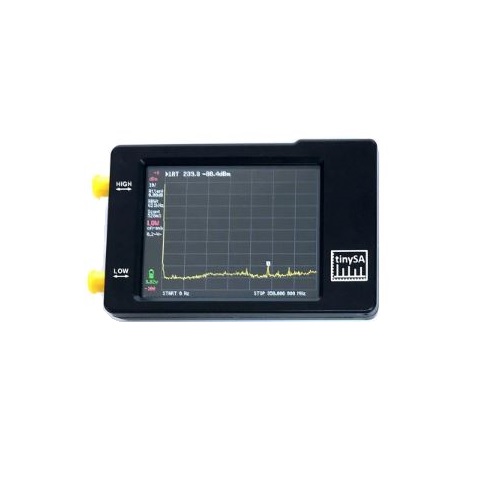

Handheld Spectrum Analyzer 2.8" (100 kHz – 960 MHz)
Price: 358.70 €
| Products ID: | 170854 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000991211 |
Delivery options to:
Choose countryA portable spectrum analyzer equipped with a 2.8-inch color touchscreen and built-in signal generator functions for radio frequency measurements from 100 kHz to 960 MHz.
Key Features
- Display: 2.8-inch resistive touch screen with 320x240 resolution
- Input Range: Low input mode covering 100 kHz to 350 MHz and high input mode covering 240 MHz to 960 MHz
- Signal Generator Modes: Sine wave output (100 kHz – 350 MHz) and square wave output (240 MHz – 960 MHz)
- Reference Generator: Selectable square wave output at 1 MHz, 2 MHz, 4 MHz, 10 MHz, 15 MHz, or 30 MHz
- Battery Life: At least 2 hours of continuous operation on a full charge
| Screen Size | 2.8" |
|---|---|
| Display Resolution | 320 x 240 pixels |
| Color Depth | 16 bits per RGB pixel |
| Controls | Resistive touch, jog switch, USB serial port |
| Low Input Frequency Range | 100 kHz – 350 MHz |
| High Input Frequency Range | 240 MHz – 960 MHz |
| Input Impedance (Low Input) | 50 ohms (with attenuation 10 dB or more) |
| Input Attenuator (Low Input) | 0 dB – 31 dB in 1 dB steps (manual / auto) |
| Low Output Frequency Range | 100 kHz – 350 MHz (sine wave) |
| High Output Frequency Range | 240 MHz – 960 MHz (square wave) |
| Reference Generator Frequencies | 1 MHz, 2 MHz, 4 MHz, 10 MHz, 15 MHz, 30 MHz |
| Scanning Speed | > 1000 points/second |
| Battery Life | At least 2 hours |
| Charging Time | Max 1 hour (500 mA minimum USB) |
| Warranty | 24 months |
How long does the battery last and how is it charged?
The device operates for at least 2 hours on a full charge and recharges in under 1 hour using a minimum 500 mA USB port or charger.
What frequency ranges are supported for input measurement?
The analyzer supports 100 kHz to 350 MHz in low input mode and 240 MHz to 960 MHz in high input mode.
