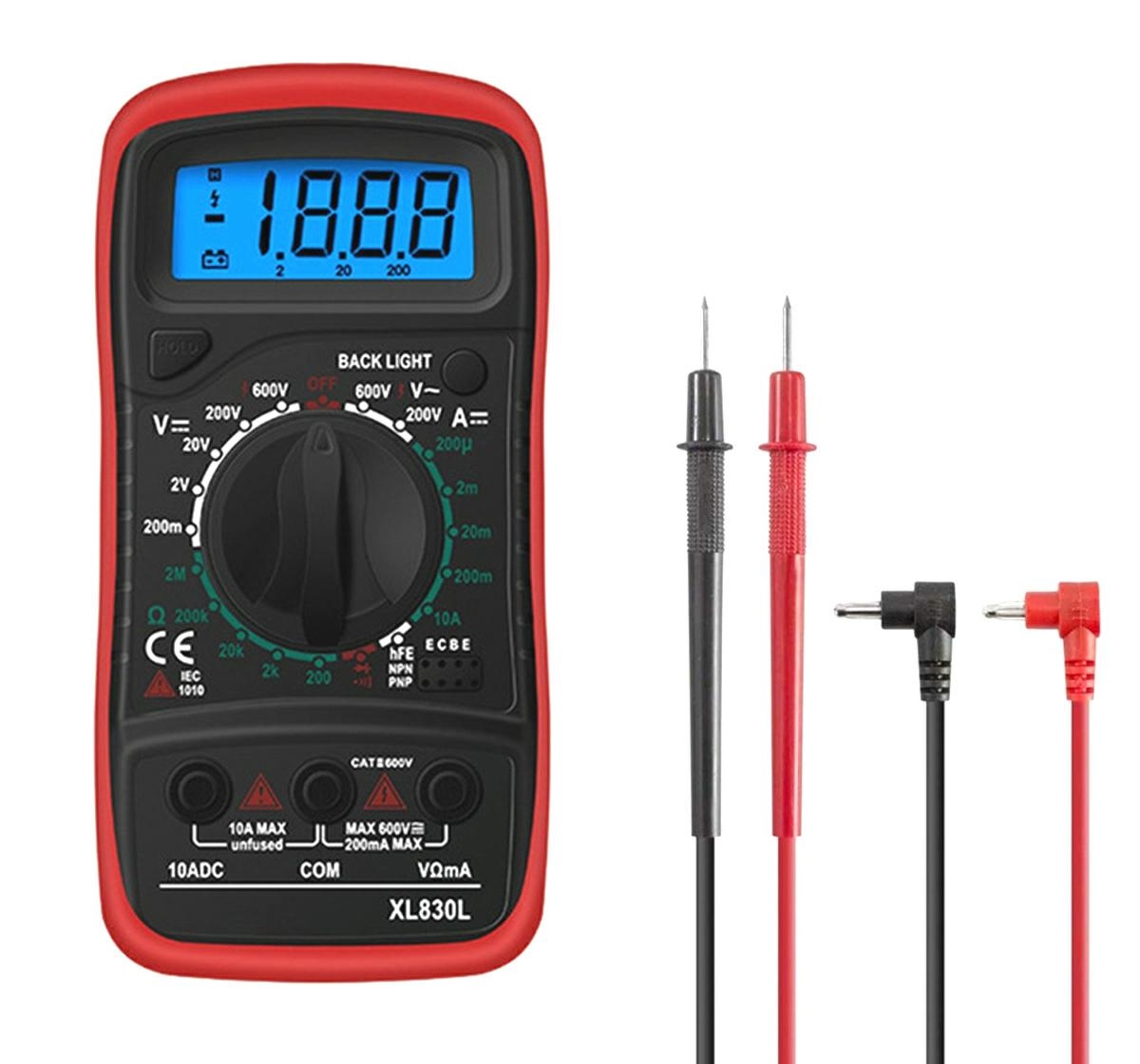

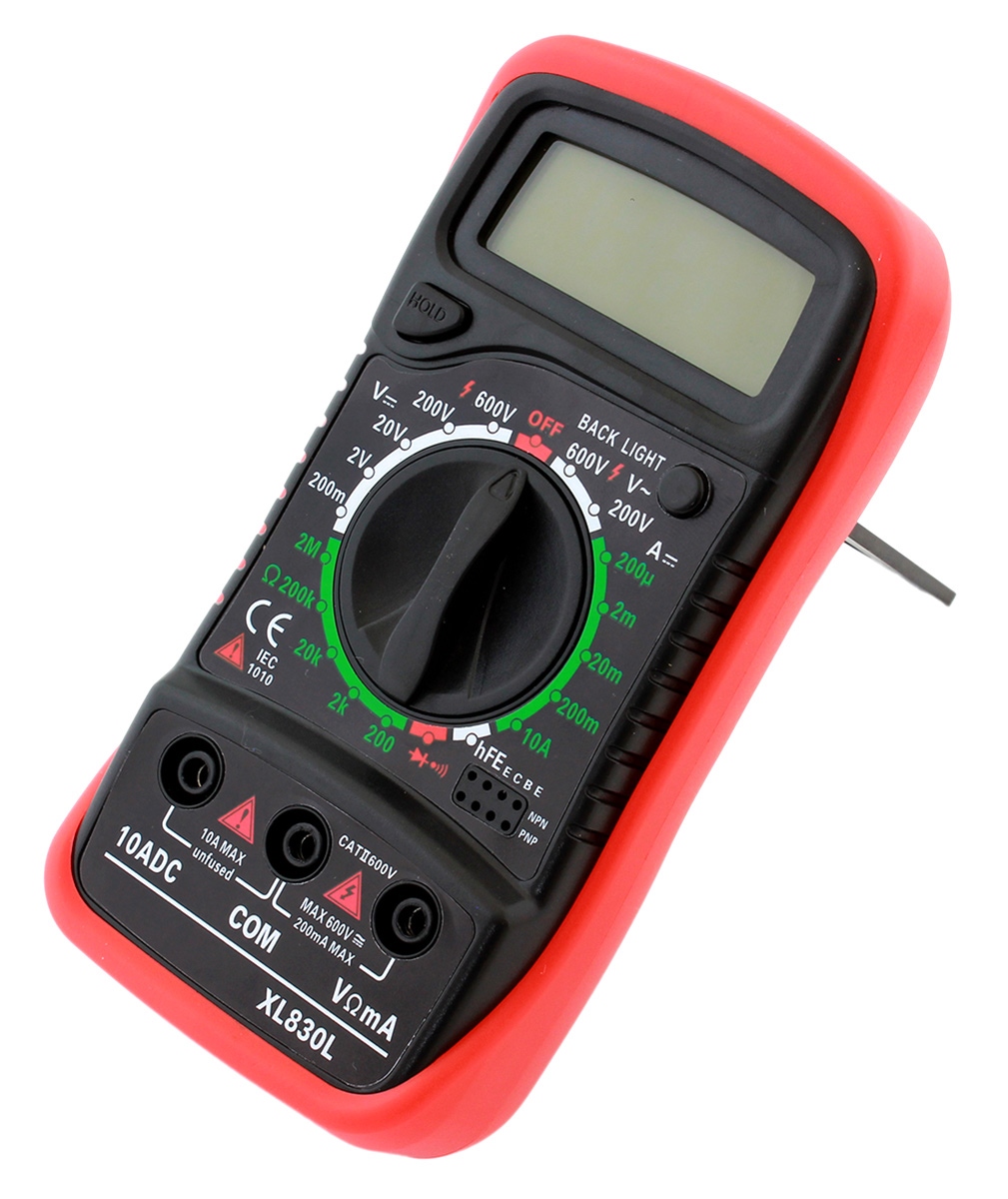

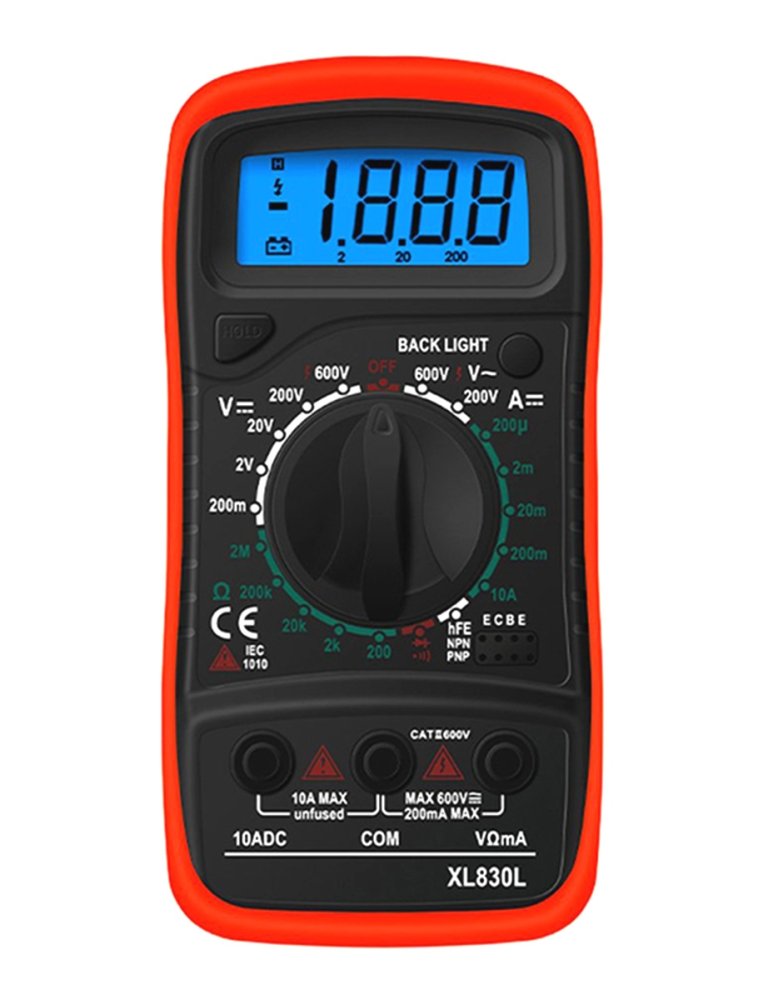

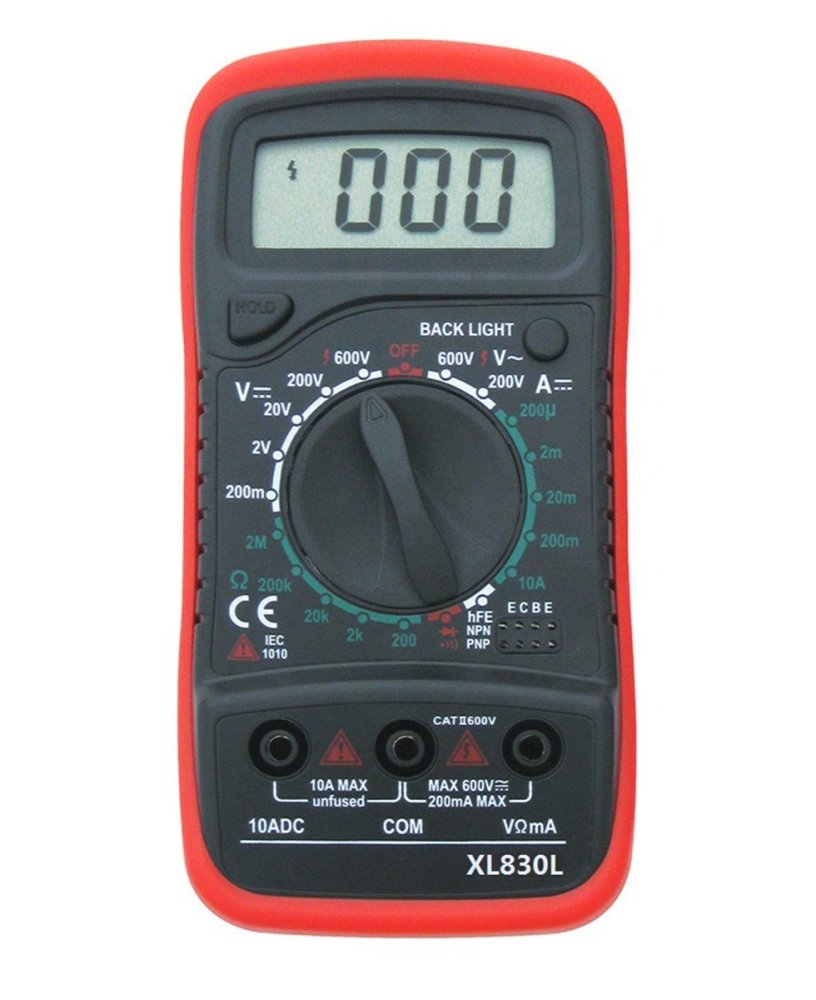

Digital Multimeter XL830L with 2 Probes, Red

Electronic meter (multimeter) with a clear LCD display. Perfect for both advanced and amateur use. The product is not equipped with a recording device (does not remember previous measurements).

Product features:

• High-quality meter with advanced capabilities.
• Suitable for home use and for electrical industry specialists.
• Equipped with a low battery indicator.
• Adjustable stand greatly facilitates reading results.

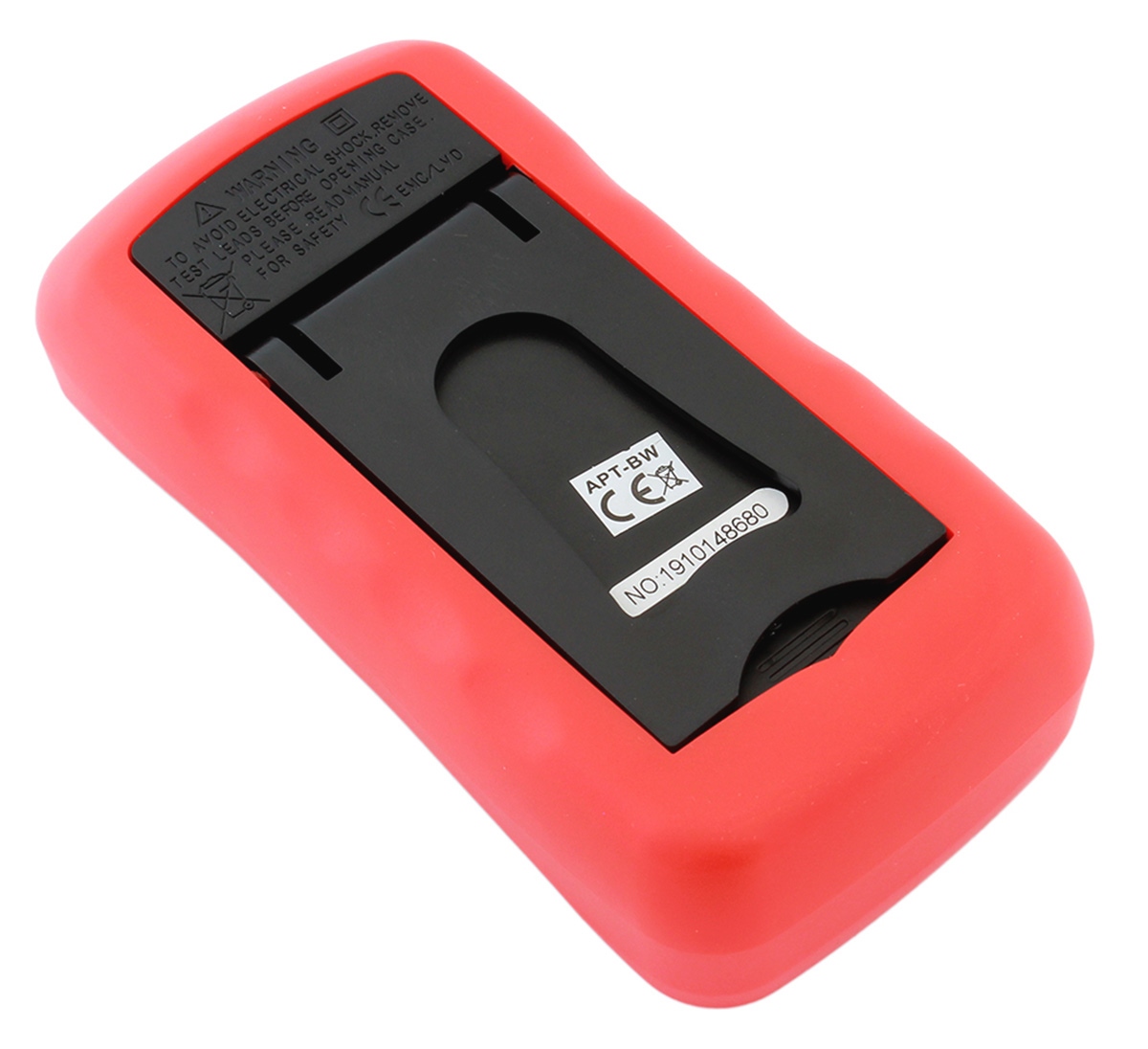

• Equipped with a durable, removable rubber cover.

Specification:

• Material: plastic (ABS)
• Power supply: 9V battery 6F22 (not included)
• Clear LCD display with blue backlight
• Rotary switch (20 positions)
• Overload protection
• Circuit continuity signal: yes (audible)
• Memory for last measurements
• Polarity indication
• Transistor test
• Diode test
• Dimensions: 6.9 cm x 13.8 cm x 3.1 cm
• Color: black-red
• Packaging: cardboard

Indications:

• DC voltage: 200mV 2V 20V 200V 600V
• AC voltage: 200 V / 100 mV, 600 V / 1 V
• DC current: 200 μA 2mA 20mA 200mA 10A
• Resistance: 200Ω 2kΩ 20kΩ 200kΩ 2MΩ
• Transistor hFE test: NPN and PNP 0 ~ 1000 1b = 10mA Vce = 3V
• Diode test
• Circuit continuity signal
• Polarity indication

Included in the set:

• Digital multimeter
• Set of measuring wires
• Rubber case
• User manual
• All packed in a sturdy and aesthetic box

We invite you to place an order!
