Digital Coating and Paint Thickness Gauge (0–1700 µm)

Digital Coating and Paint Thickness Gauge (0–1700 µm) — image 3

Price: 154.50 €

Products ID:	171036
Manufactured by:	Sndway
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6971978410853

Delivery options to:

Choose country

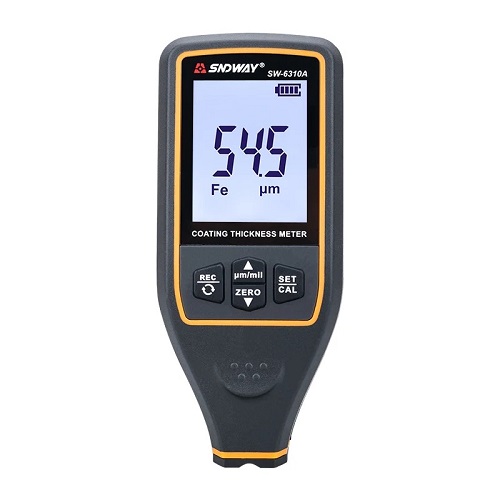

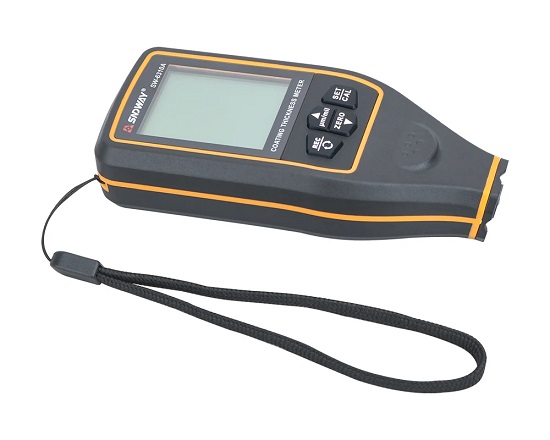

Digital Coating and Paint Thickness Gauge (0–1700 µm)

This digital coating thickness gauge enables non-invasive measurement of paint, varnish, and other non-magnetic coatings on magnetic (iron, steel) and non-magnetic (aluminum, copper) metal substrates.

Key Features

Wide measurement range from 0 to 1700 µm on both magnetic and non-magnetic materials.
Backlit 2-inch display with 180-degree rotation capability for easy reading.
Internal memory stores up to 30 measurement sets without loss when powered off.
Single and continuous measurement modes with acoustic signal feedback.
Upper and lower limit warning function.
Automatic shut-off after 60 seconds of inactivity.

Measuring range	0~1700 µm (magnetic and non-magnetic materials)
Resolution	0.1 µm @(0~99.9 µm); 1 µm @(100~1700 µm)
Indication error	+/-(2+2%H) µm @(0–500 µm); +/-(2.5%H) µm @(500–1700 µm)
Min. measuring area	25x25 mm
Min. curvature	Convex 5 mm; concave 30 mm
Min. substrate thickness	Magnetic 0.2 mm; non-magnetic 0.05 mm
Measurement units	mil / µm
Data storage	30 sets
Power supply	2x 1.5V AAA batteries (included)
Automatic shutdown	After 60 seconds
Operating temperature	0°C ~ +50°C
Storage temperature	-10°C ~ +60°C
Gauge dimensions	120x52x26 mm
Weight	87 g
Warranty	24 months

What substrates can this gauge measure coatings on?

It measures coatings on magnetic substrates such as iron, steel, and galvanized steel, as well as non-magnetic substrates such as aluminum and copper.

What items are included in the package?

The set includes the gauge, 2x AAA batteries, a handstrap, a zippered carrying case, a storage box for calibration films, 5 calibration films, an FE substrate, an NFE substrate, and a user manual.
