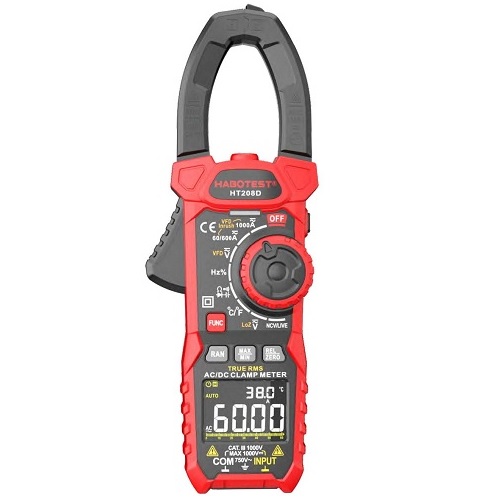

Digital Clamp Meter DC 1000V / 1000A, AC 750V / 1000A
Price: 80.50 €
| Products ID: | 170505 |
|---|---|
| Manufactured by: | Habotest |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000991846 |
Delivery options to:
Choose countryDigital clamp meter integrates multiple measurement functions for AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and temperature.
Key Features
- Measures DC voltage up to 1000V and AC voltage up to 750V
- Measures AC and DC current up to 1000A
- NCV non-contact voltage detection and True RMS support
- Backlit 6000-count display and built-in flashlight
- Auto power off and low battery warning
- Supplied with test leads, temperature probe, and soft storage case
| DC Voltage | 600mV / 6V / 60V / 600V / 1000V (+/-0.5%+3) |
|---|---|
| AC Voltage | 600mV / 6V / 60V / 600V / 750V (+/-0.8%+3) |
| DC Current | 60A / 600A / 1000A (+/-2.5%+5) |
| AC Current | 60A / 600A / 1000A (+/-2.5%+5) |
| Resistance | 600Om / 6kOm / 60kOm / 600kOm / 6MOm / 60MOm (+/-0.8%+3) |
| Capacitance | 10nF / 100nF / 1uF / 10uF / 100uF / 1mF / 10mF / 100mF (+/-4.0%+5) |
| Frequency | 10Hz / 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz (+/-1.0%+3) |
| Duty Cycle | 1%-99% (+/-1.0%+2) |
| Temperature | -20 to 1000°C (+/-1.0%+2) |
| Display Counts | 6000 |
| True RMS | Yes |
| NCV | Yes |
| Power Supply | 3x 1.5V AAA batteries (not included) |
| Dimensions | 240 x 85 x 47 mm |
| Jaw Size | 35 x 35 x 60 mm |
| Weight | 380 g |
| Safety Rating | EN61010-1, -2-030, EN61010-2-033, EN61326-1 CATIII 1000V, CATIV 600V |
| Warranty | 24 months |
What is included in the package?
The package includes the digital clamp meter, test leads, a thermometer probe, and a soft case. Batteries are not included.
What batteries are required to operate the device?
The device operates on 3 standard 1.5V AAA batteries.
