Stanley STHT77616-0 Rotary Laser Level, Red Beam
Stanley Black&Decker
| Products ID: | 186090 |
|---|---|
| Manufactured by: | Stanley Black&Decker |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 3253560776169 |
Delivery options to:
Choose country

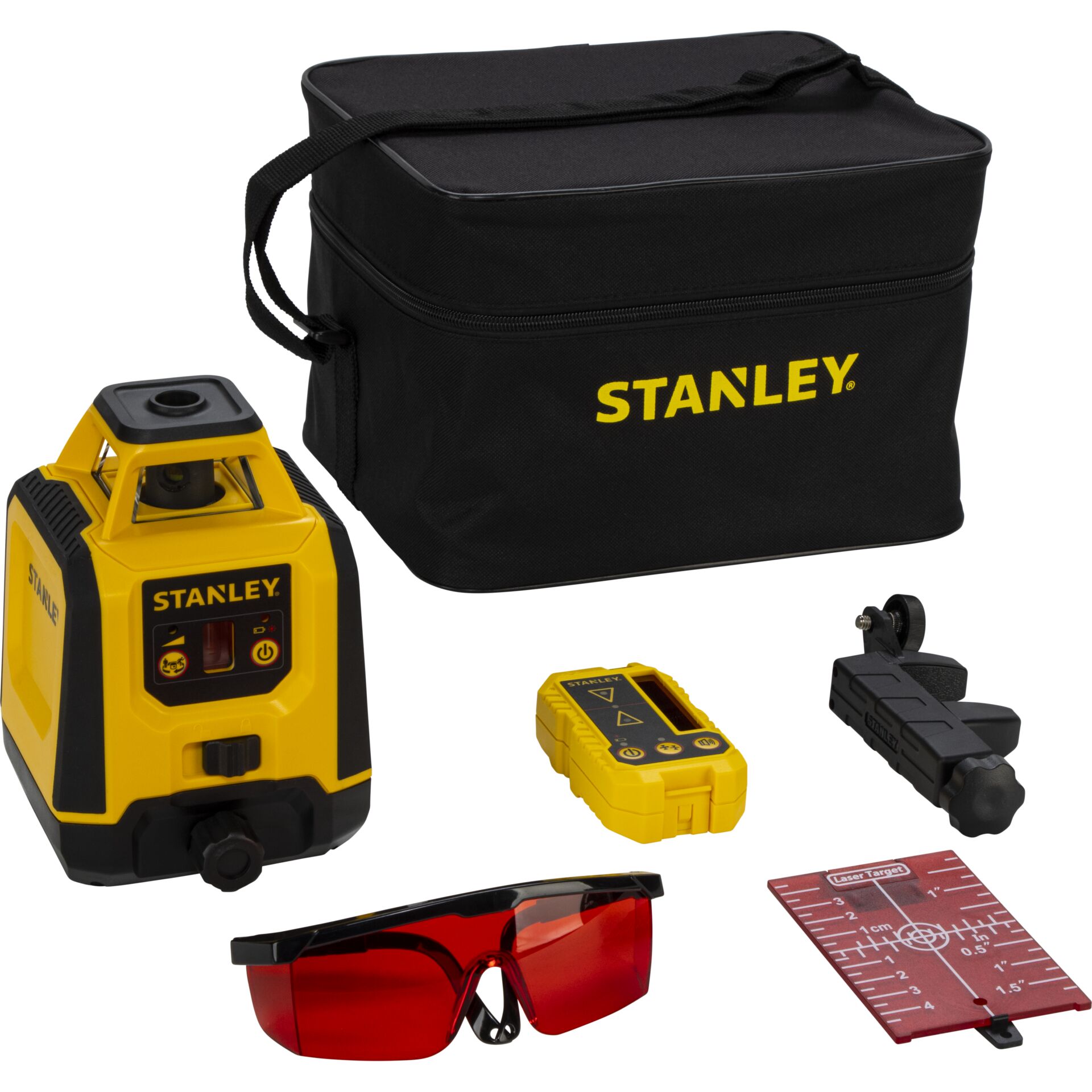

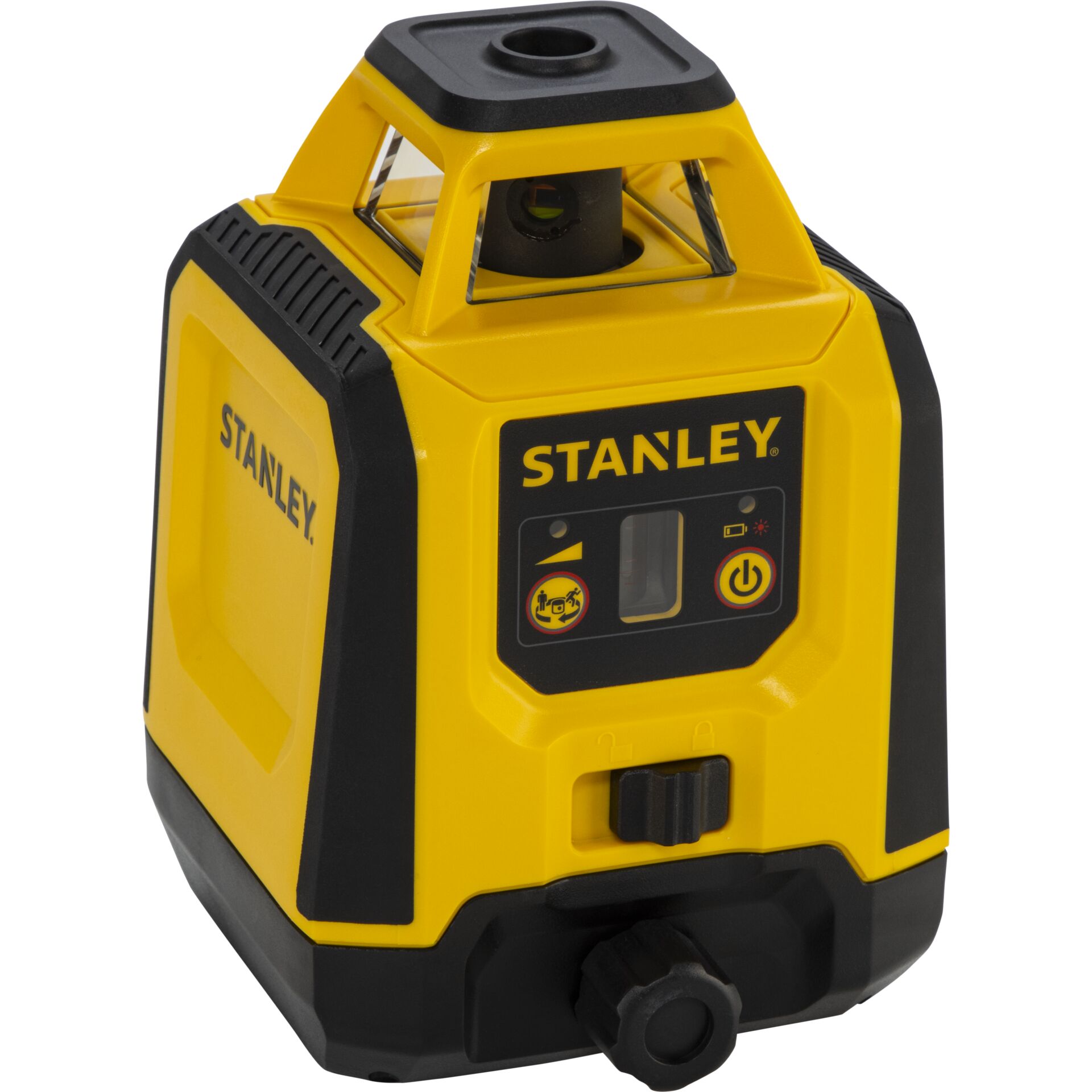

The Stanley STHT77616-0 is a fully automatic rotary laser level with a red beam and an upward plumb function, designed for accurate levelling and alignment work indoors and outdoors.
Accurate and Fast Levelling
This rotary laser delivers an accuracy of +/- 6 mm at 30 m and completes self-levelling in ≤ 20 seconds. An automatic compensation range of ≥ 3° reliably corrects slight tilts during operation.
Flexible Range and Rotation Speeds

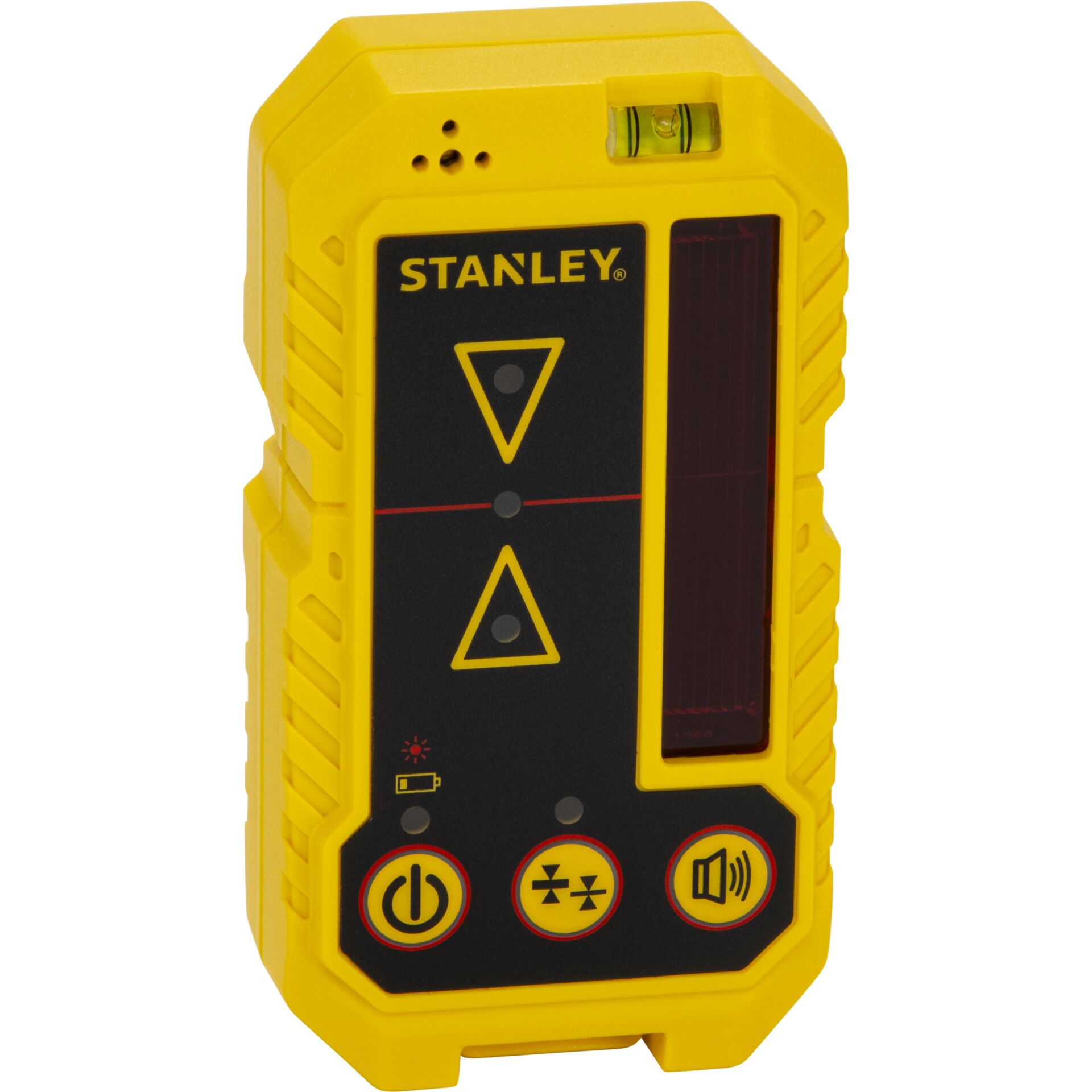

The standard operating range reaches up to 30 m and can be extended up to 240 m using a compatible detector. To suit various tasks, the head offers rotational speeds of 0, 150, 300, and 600 rpm.
Jobsite Durability and Extended Runtime
- IP54-rated housing protects against dust ingress and water splashes
- Powered by 2x D (Mono) batteries for an operating time of ≥ 20 hours

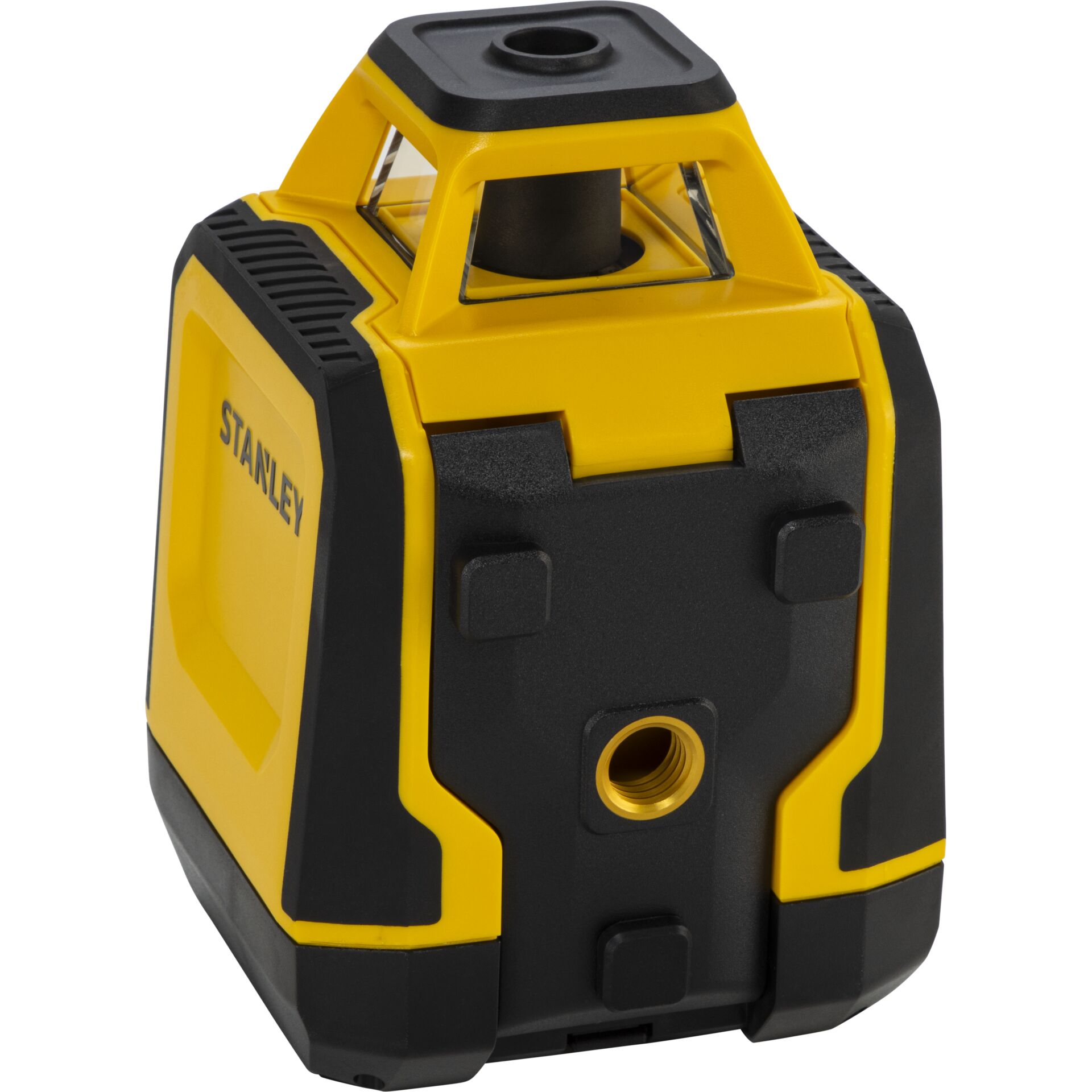

- Equipped with an industry-standard 5/8" tripod mount
- Class 2 laser using a 635 nm red laser diode
| Device type | Rotary laser level |
|---|---|
| Laser beam colour | Red |
| Laser class | 2 |
| Laser diode wavelength | 635 nm |
| Measurement range | 0 - 30 m (up to 240 m with detector) |
| Levelling accuracy | +/- 6 mm at 30 m |
| Compensation range | ≥ 3° |
| Levelling time | ≤ 20 s |
| Rotational speed | 0, 150, 300, 600 rpm |
| Protection class | IP54 |
| Tripod mount | 5/8" |
| Battery type and quantity | 2x Mono (D) |
| Batteries included | No |
| Operating time | ≥ 20 h |
| Housing colour | Black / Yellow |
| Weight | 1680 g |
What is the working range of this rotary laser?
It has a working range of up to 30 m on its own, which can be extended up to 240 m when used with an optional detector.
Are batteries supplied with the device?
No, the two D (Mono) batteries required for operation are not included.
