Multi-Line Laser STABILA LAX 600 G 12 V System, 3 x 360°, Green Beam

Q: What is included with the STABILA LAX 600 G?

The scope of delivery includes the LAX 600 G multi-line laser, SUB 10 universal holder, and SWB 10 wall holder. The battery and charger are not included.

Q: What is the operating range and accuracy of this laser level?

The visible line range is up to 40 m with a levelling accuracy of ± 0.30 mm/m and a self-levelling range of ± 4°.

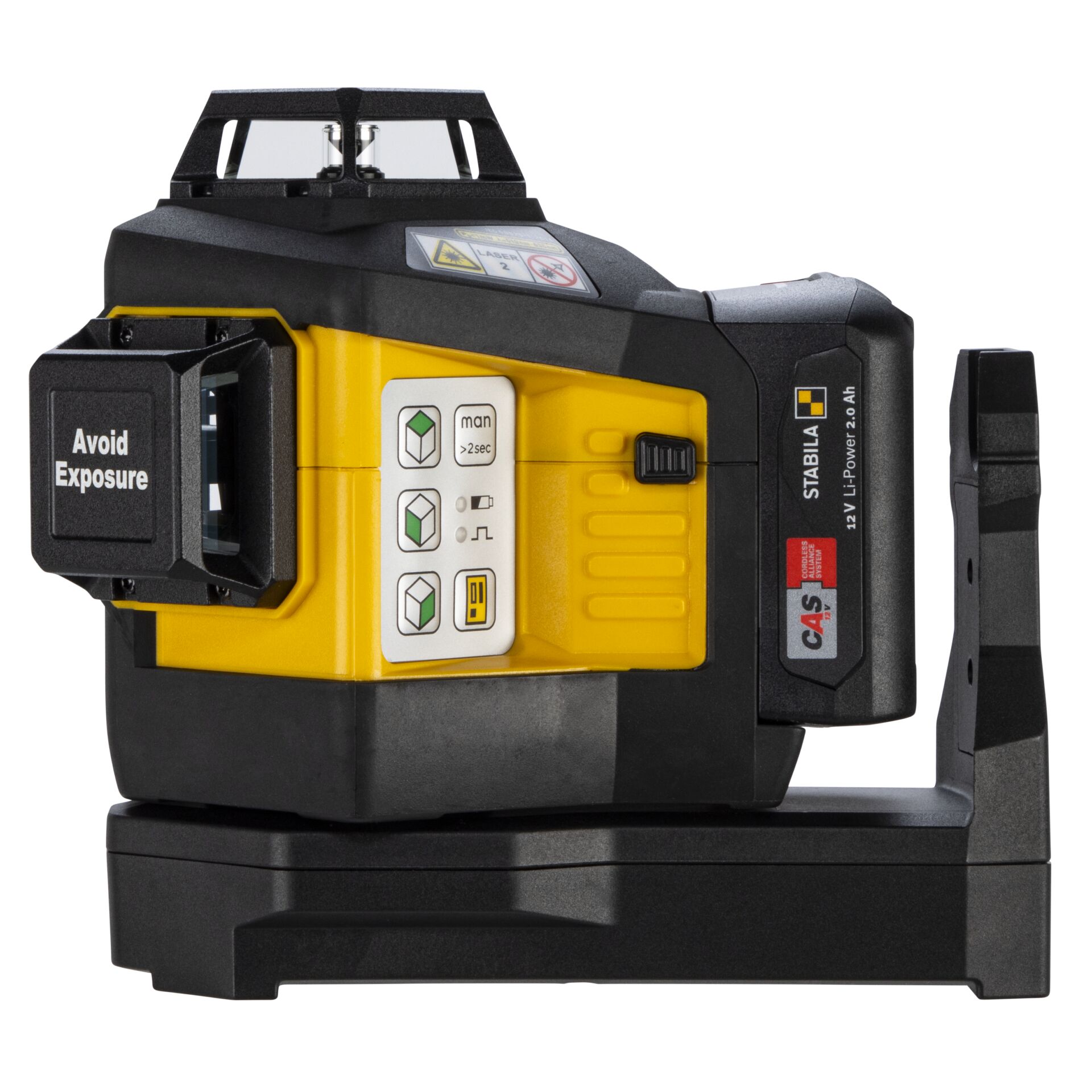

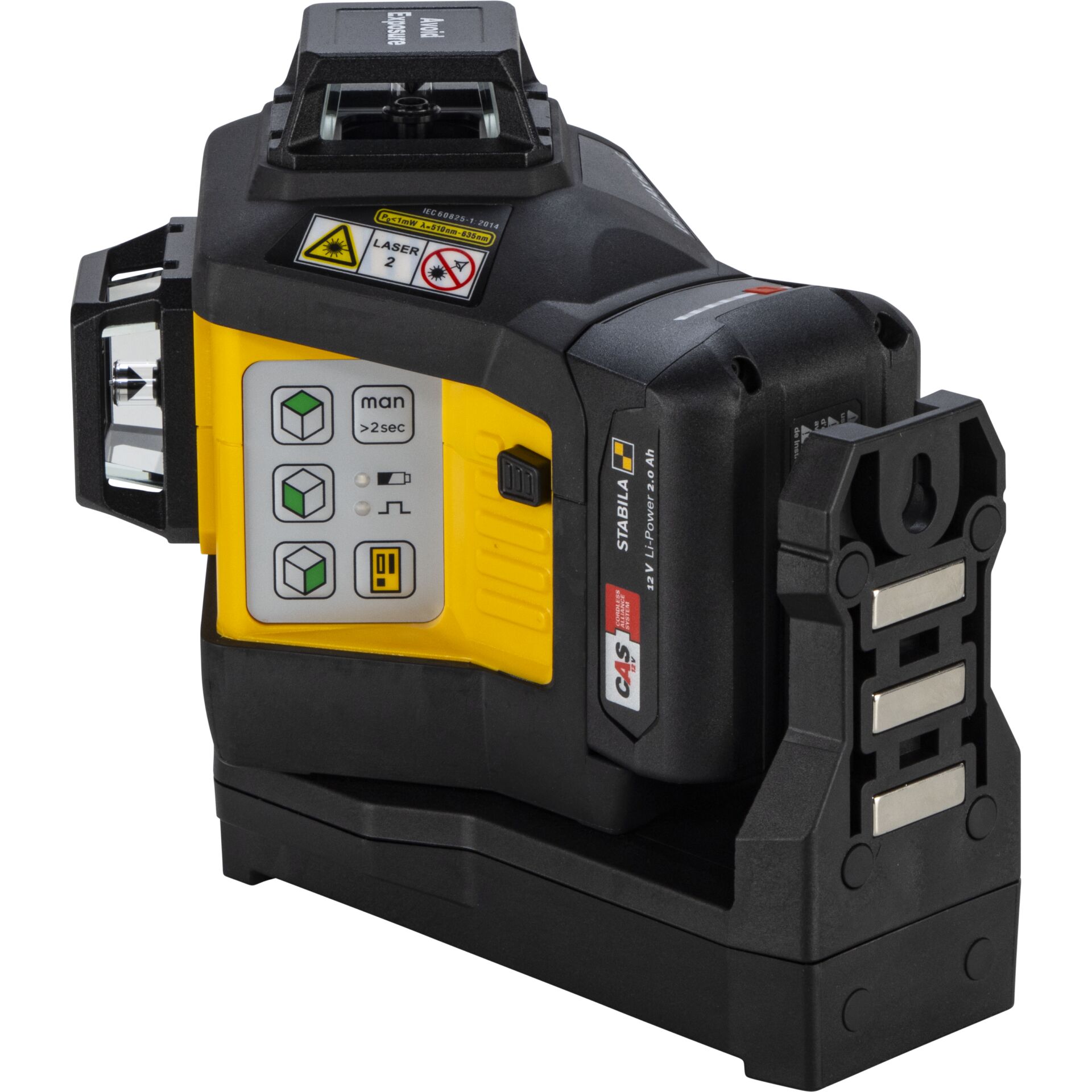

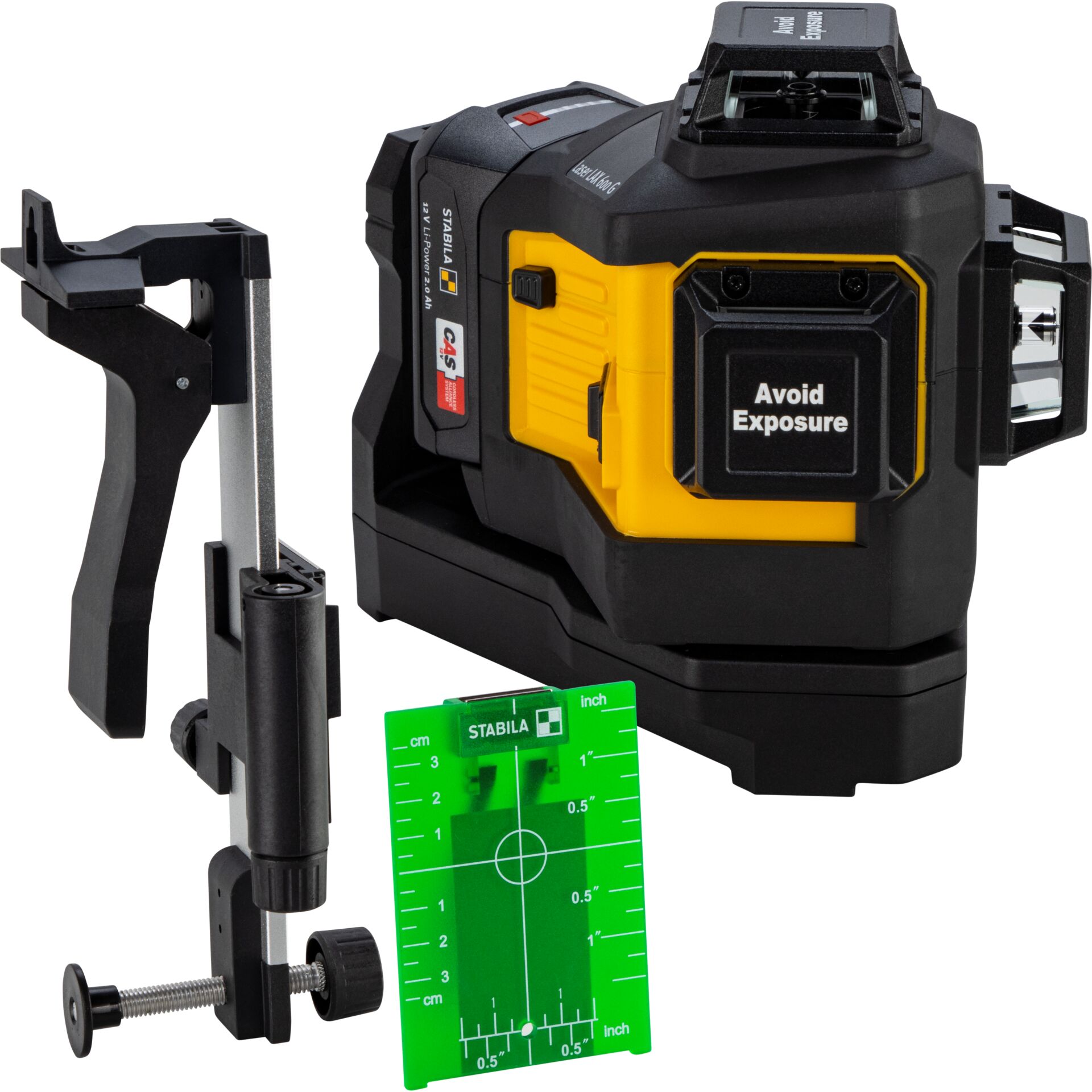

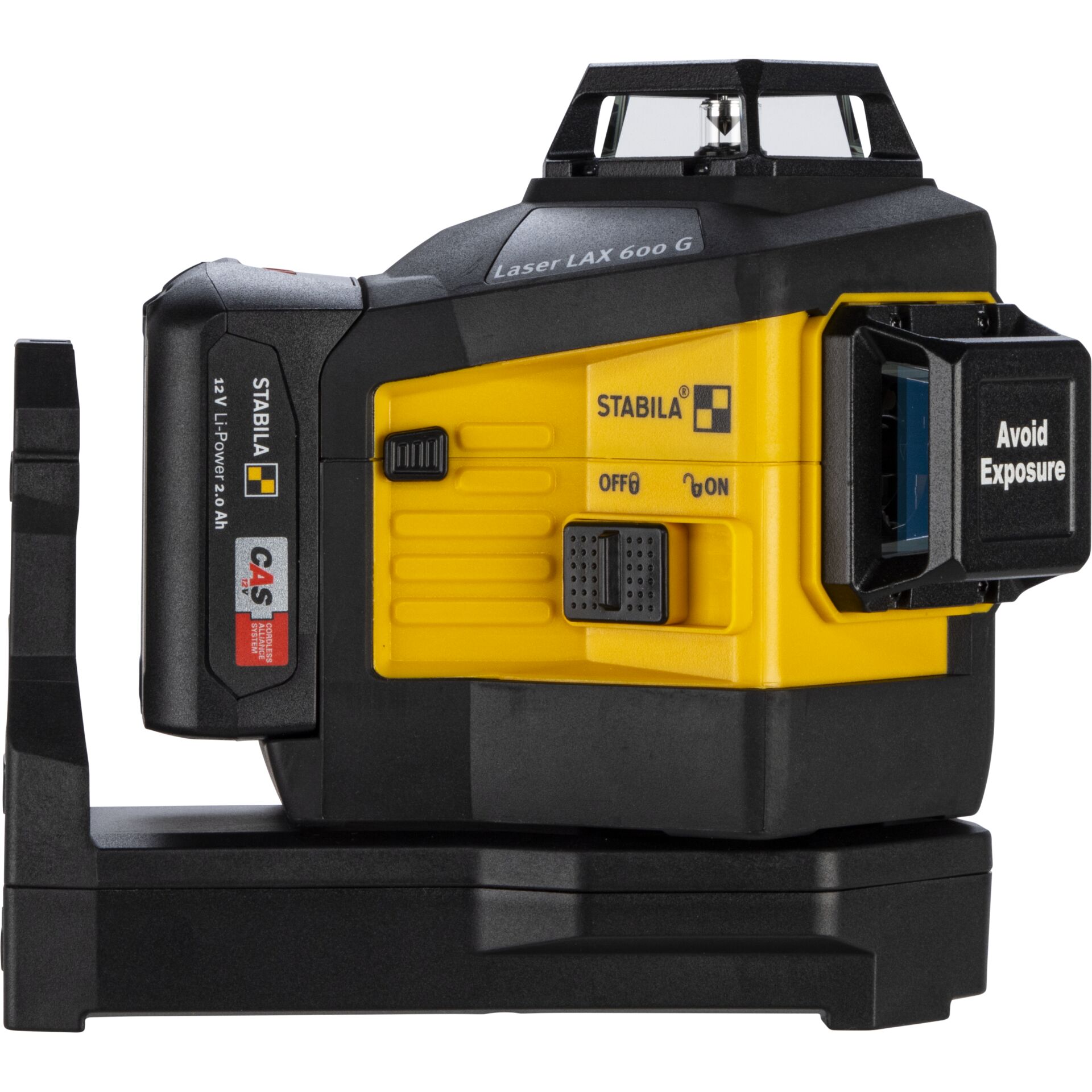

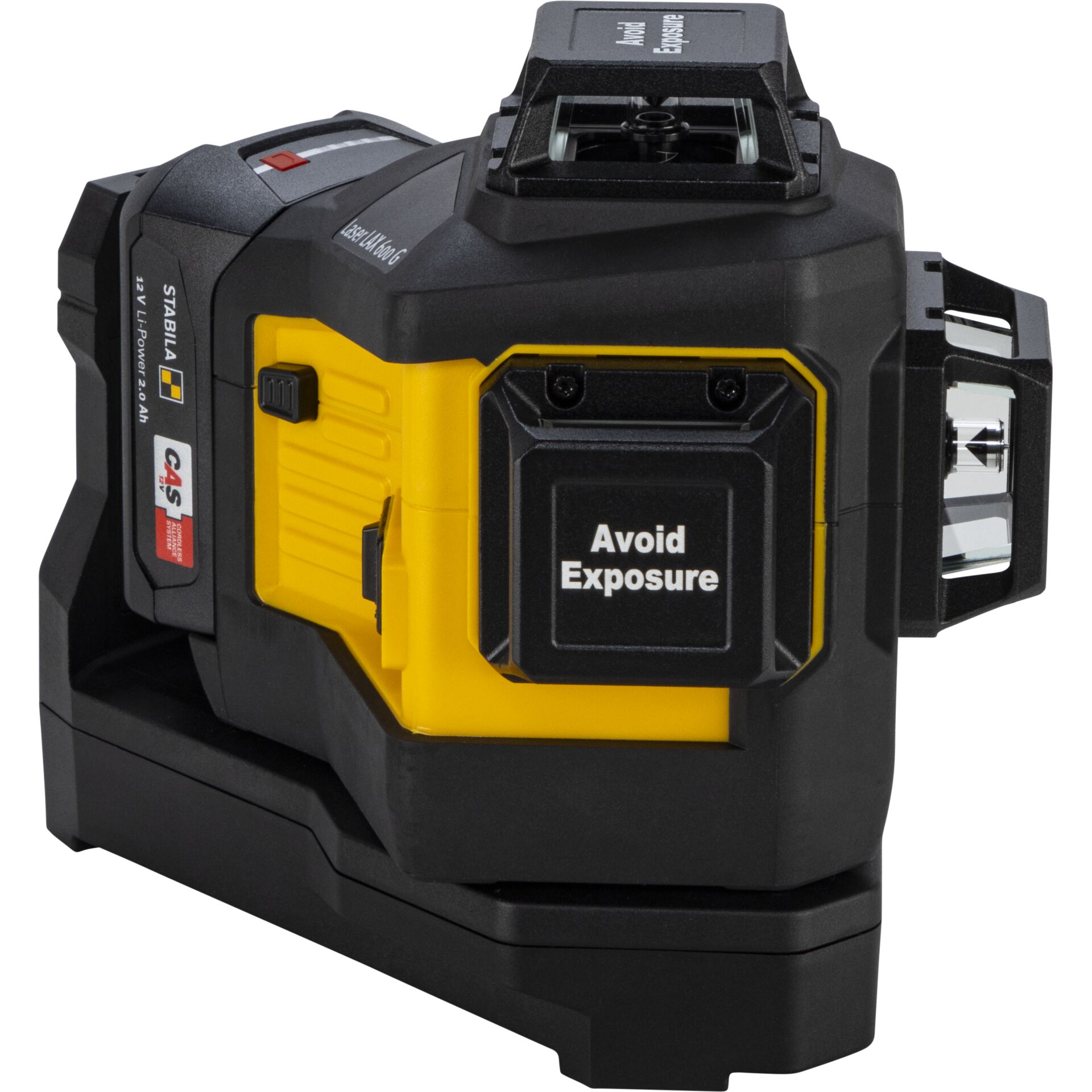

Multi-Line Laser STABILA LAX 600 G 12 V System, 3 x 360°, Green Beam — primary image

Multi-Line Laser STABILA LAX 600 G 12 V System, 3 x 360°, Green Beam — image 2

Multi-Line Laser STABILA LAX 600 G 12 V System, 3 x 360°, Green Beam — image 3

Multi-Line Laser STABILA LAX 600 G 12 V System, 3 x 360°, Green Beam — image 4

Multi-Line Laser STABILA LAX 600 G 12 V System, 3 x 360°, Green Beam — image 5

Price: 769.10 €

Products ID:	183792
Manufactured by:	Stabila
Availablity:	Ready to Order
Delivery Time	7-15 business days
EAN:	4005069197971

Delivery options to:

Choose country

Multi-Line Laser STABILA LAX 600 G 12 V System, 3 x 360°, Green Beam

The STABILA LAX 600 G is a multi-line laser designed for indoor alignment, providing clear green 3 x 360° lines. Durable aluminium and glass cages protect the optical system from dust and impact.

Key Features

GREENBEAM technology creates crisp lines visible up to 40 m.
Fast self-levelling with an accuracy of ± 0.30 mm/m.
Dustproof and waterproof housing rated to IP65 for job site use.
Vertical and horizontal lines with plumb points for full-room alignment.
CAS 12 V battery system compatibility delivers up to 15 hours of operating time.
1/4" and 5/8" threads provide versatile mounting options.

Laser class	2
Power	< 1 mW
Laser wavelength	510–530 nm
Self-levelling range	± 4°
Levelling accuracy	± 0.30 mm/m
Visible line range	40 m
Operating time	15 h
Protection class	IP65
Tripod connection	1/4" + 5/8"
Laser beam colour	Green
Automatic switch-off	No
Display	No
Voltage	12 V
Required number of batteries	1
Battery type	Li-Ion
Batteries included	No
Colour	Black / Yellow

What is included with the STABILA LAX 600 G?

The scope of delivery includes the LAX 600 G multi-line laser, SUB 10 universal holder, and SWB 10 wall holder. The battery and charger are not included.

What is the operating range and accuracy of this laser level?

The visible line range is up to 40 m with a levelling accuracy of ± 0.30 mm/m and a self-levelling range of ± 4°.
