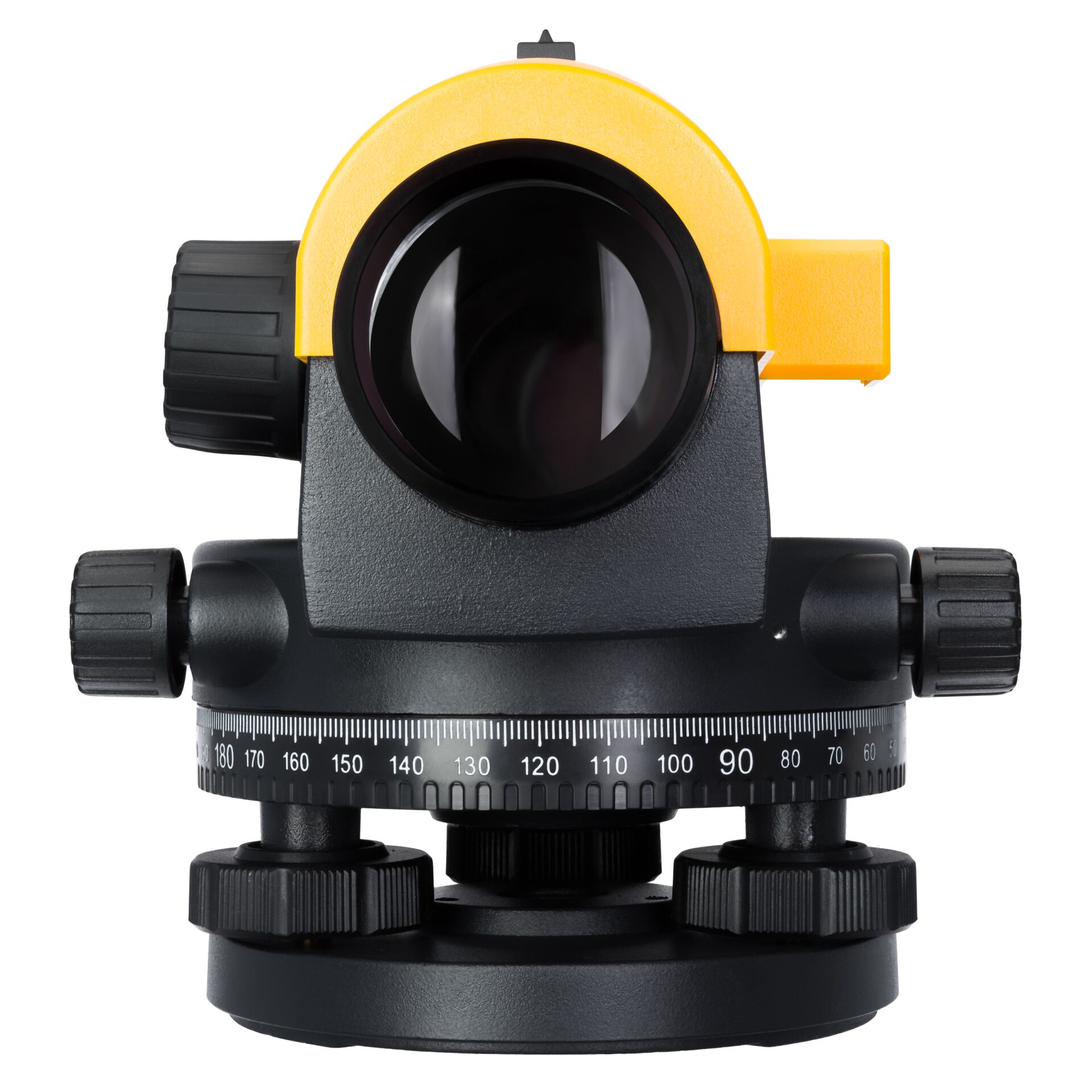

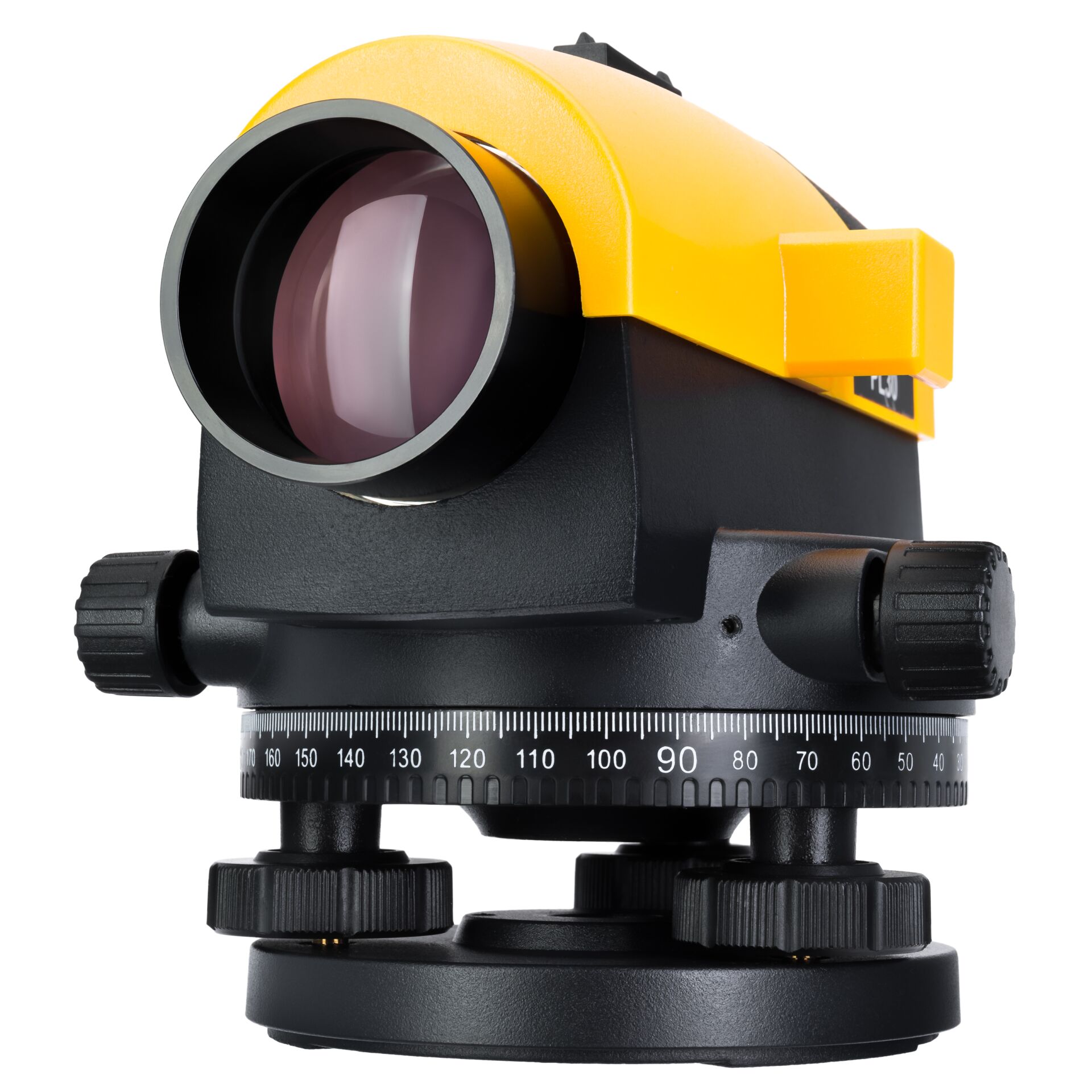

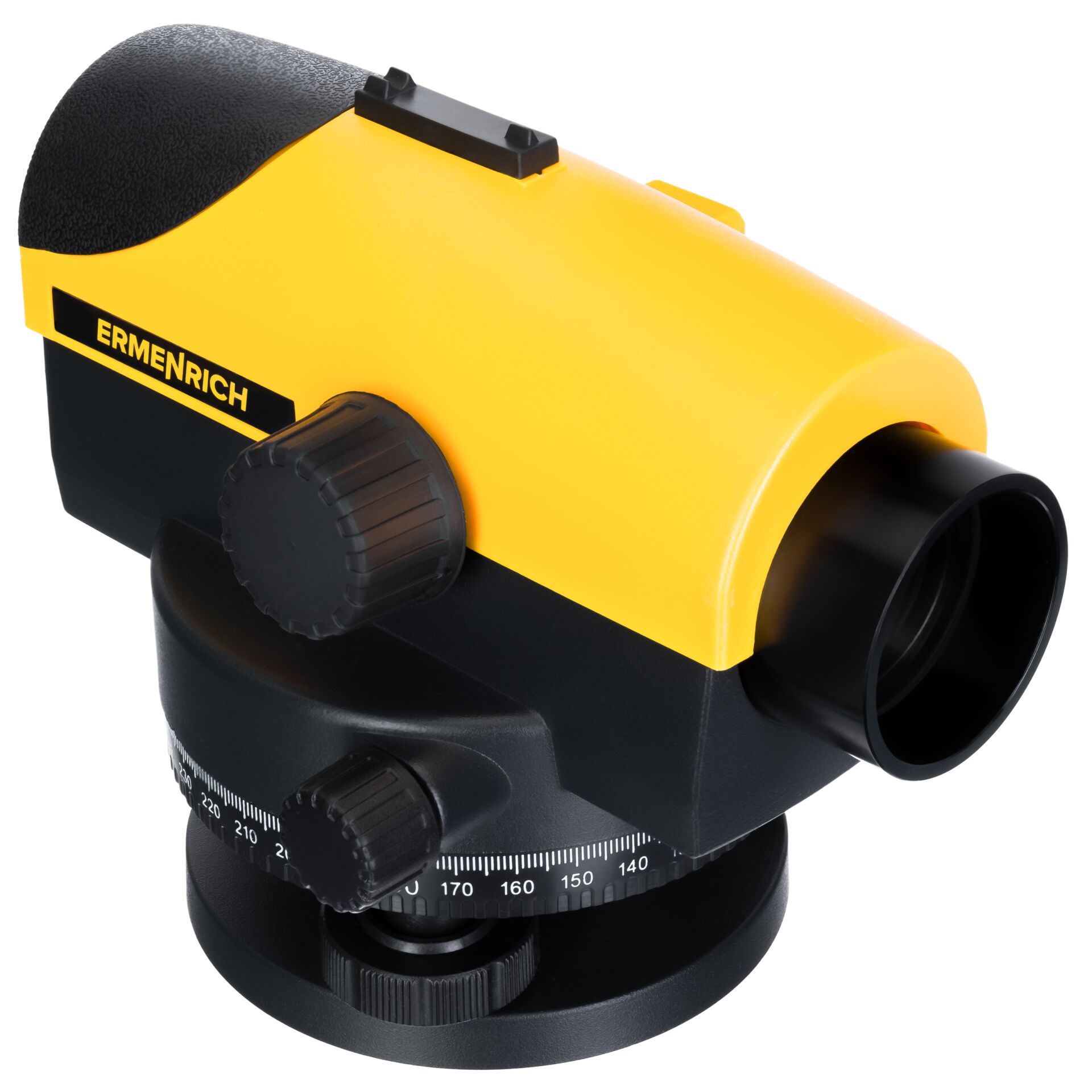

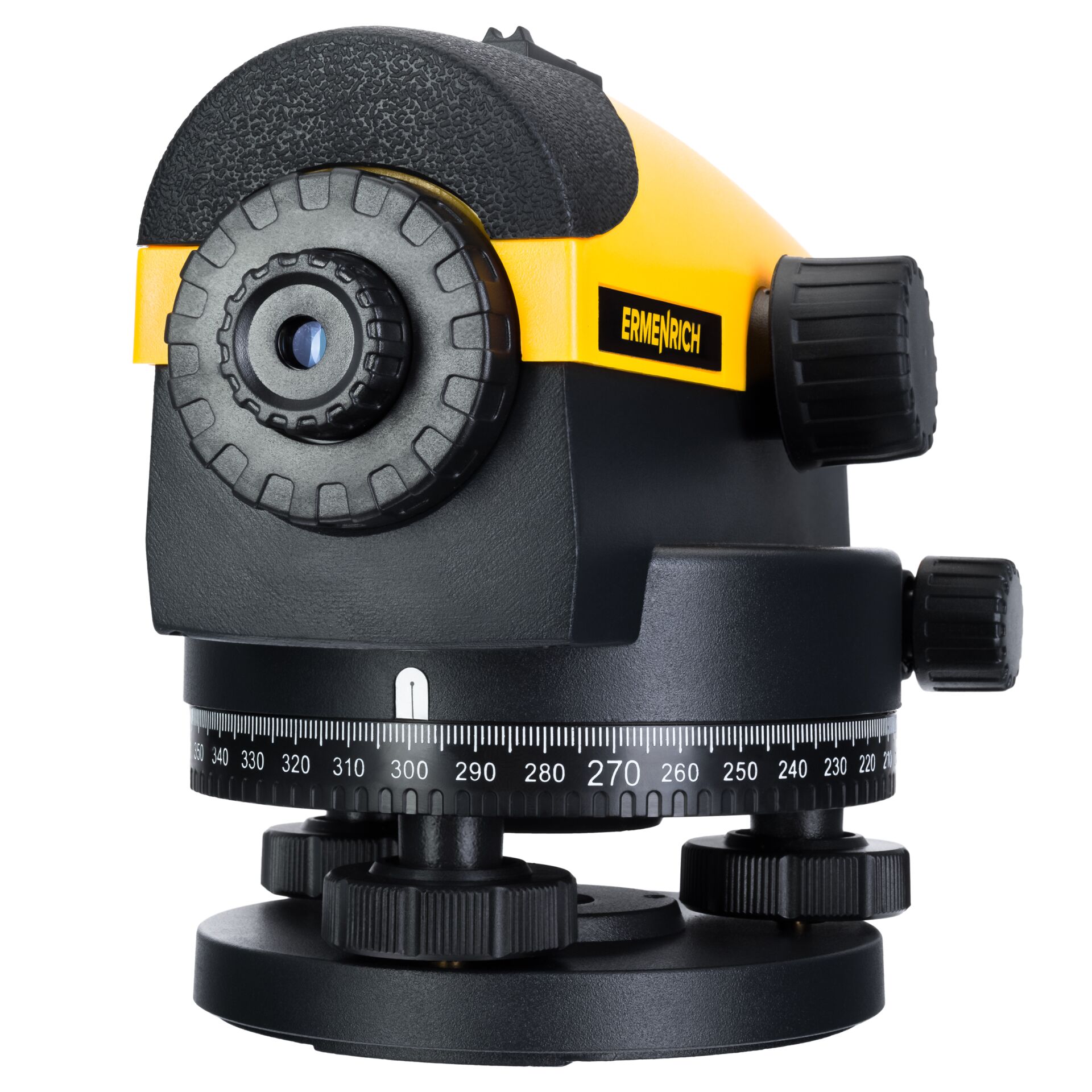

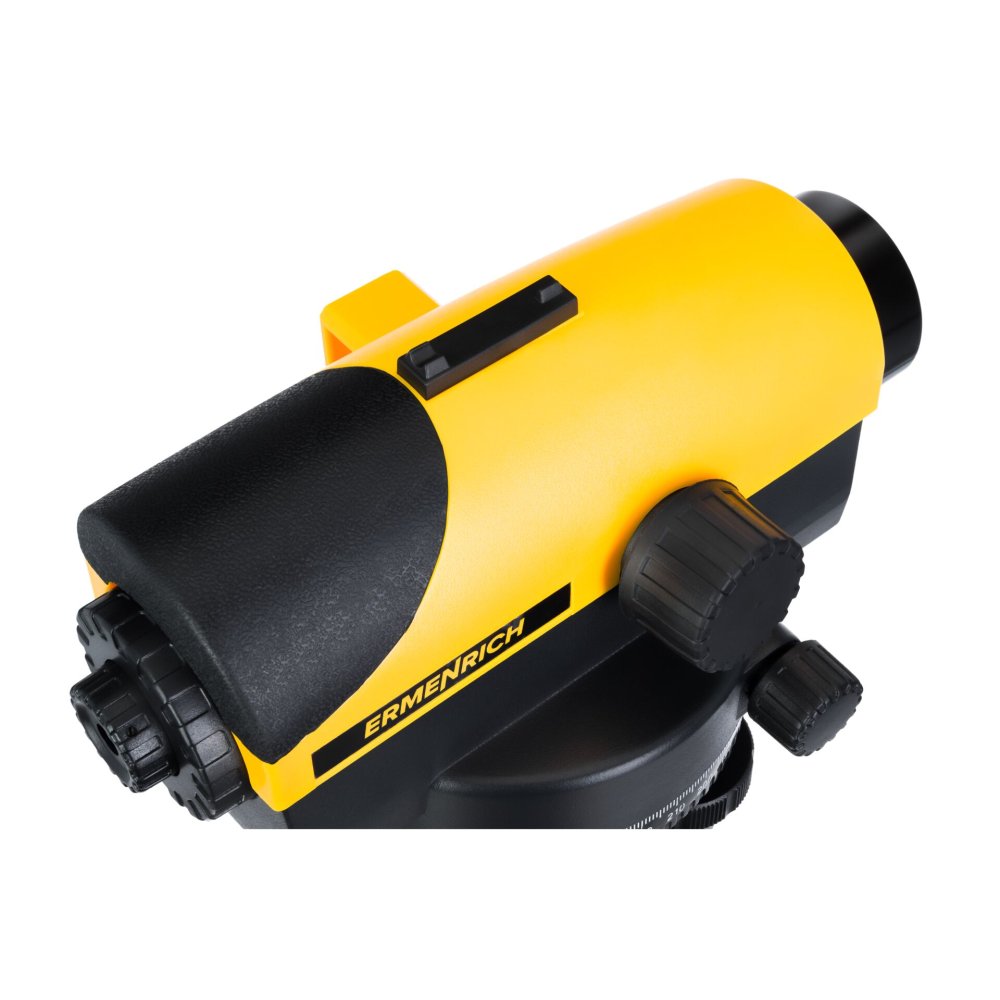

Ermenrich PL30 Optical Level, 32x Magnification

Ermenrich PL30 Optical Level, 32x Magnification — image 3

Ermenrich PL30 Optical Level, 32x Magnification — image 4

Ermenrich PL30 Optical Level, 32x Magnification — image 5

Price: 123.50 €

Products ID:	180591
Manufactured by:	Ermenrich
Availablity:	Ready to Order
Delivery Time	7-15 business days
EAN:	5905555021782

Delivery options to:

Choose country

Ermenrich PL30 Optical Level, 32x Magnification

The Ermenrich PL30 is an optical level designed to measure height differences between points, horizontal angles, and distances in construction and surveying applications.

Key Features

32x magnification with a 36 mm objective lens
Air-damped compensator with a transport lock
Upright target image and 0.3 m short minimum focus
IP54 splash-proof robust housing
M16 or 5/8-inch tripod thread

Level type	Optical
Magnification	32x
Lens diameter	36 mm
Compensator type	Air damping
Target image	Upright
Near focus	0.3 m
Field of view	1°30'
Height accuracy for single measurement	1.6 mm / 30 m
Standard deviation per 1 km (double levelling)	1 mm
Working range of the compensator	0.3 angular seconds
Compensation locking	Yes
Stadia ratio	100
Horizontal circle	1° or 1 gon
Sensitivity of the bubble	8'/2 mm
Tripod thread	M16 or 5/8"
Housing material	Robust plastic
Protection class	IP54
Colour	Purple / black

Are a tripod and leveling rod included?

No, a tripod and leveling rod are required for measurements but are not included.

What is the visibility range of the leveling scale?

The millimeter scale is visible up to approximately 50 meters, while metric E-graduations are visible across the full working range of up to 120 meters.
