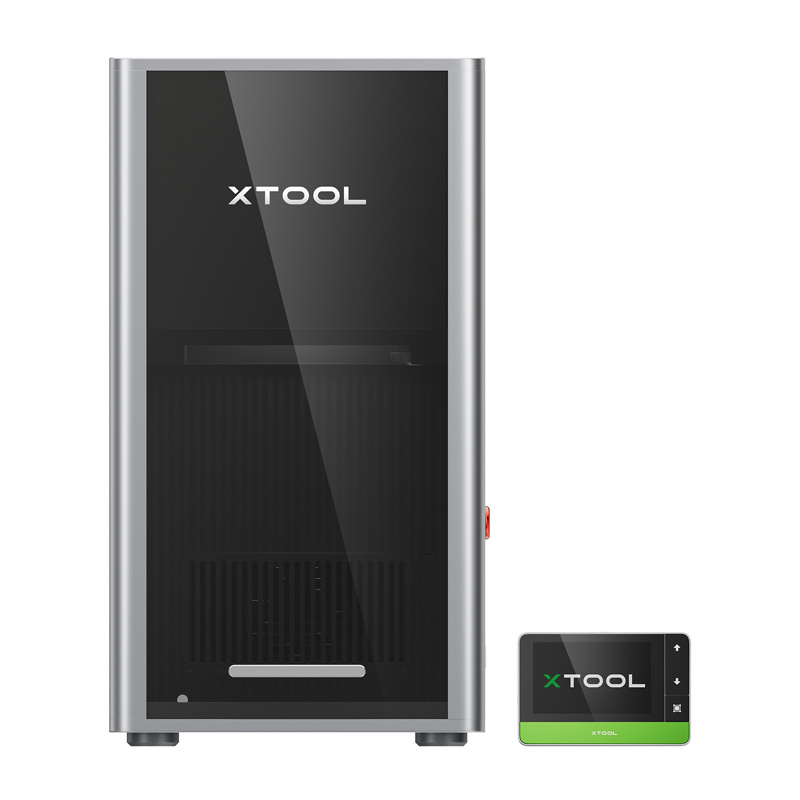

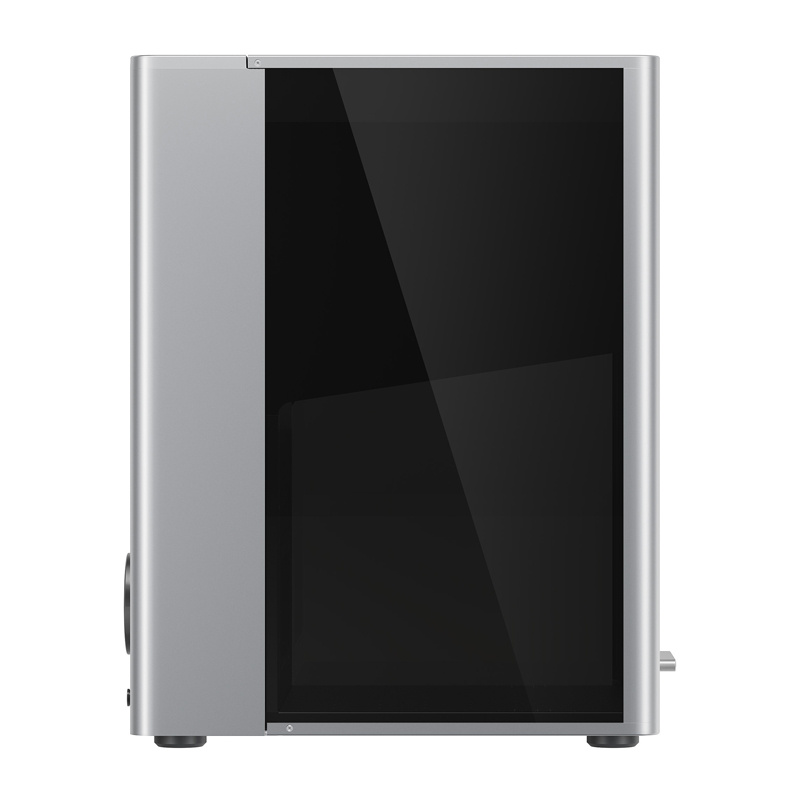

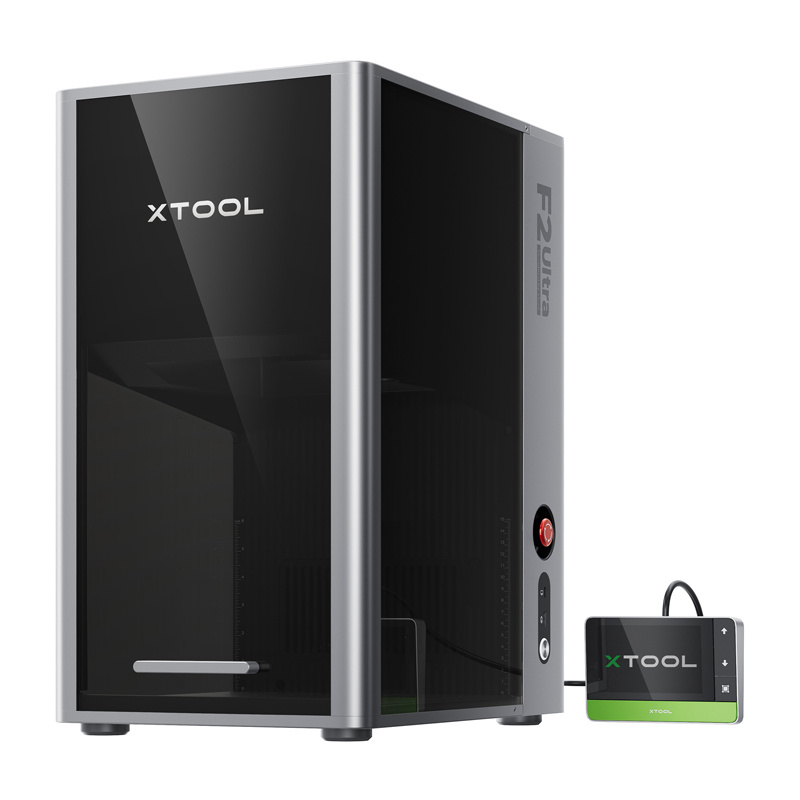

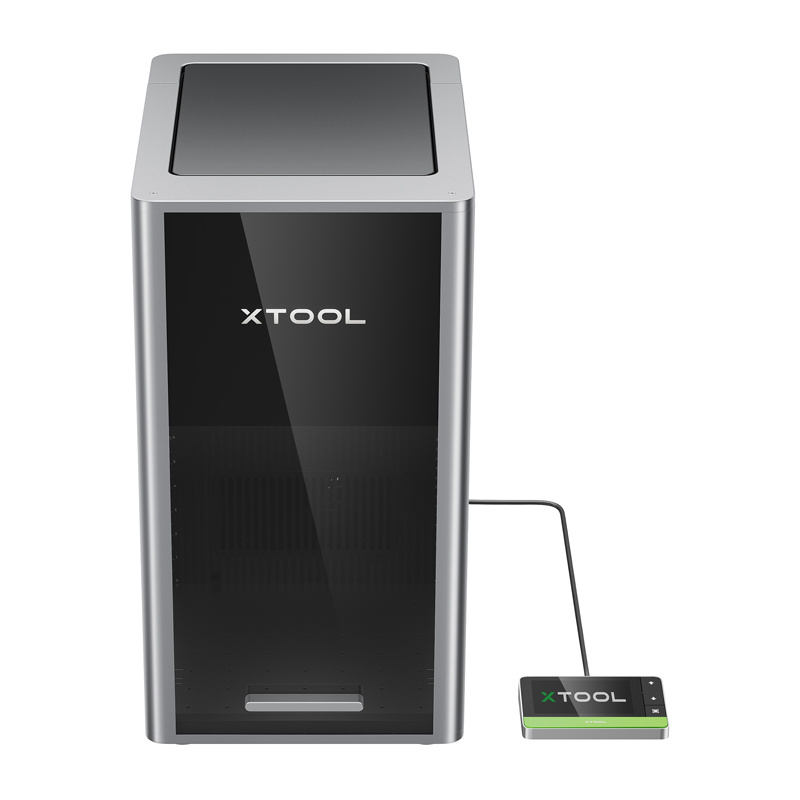

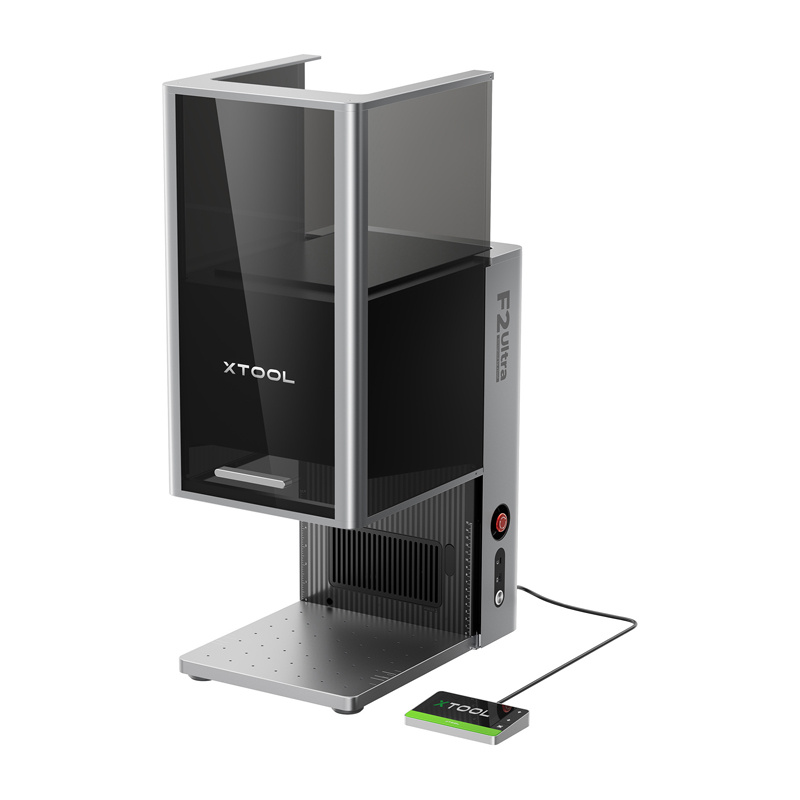

2-in-1 xTool F2 Ultra Laser Engraving Machine 60W MOPA + 40W Diode (P1010155)
| Products ID: | 175627 |
|---|---|
| Manufactured by: | Xtool |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6928819532069 |
Delivery options to:
Choose countryThe xTool F2 Ultra is a dual-source laser engraving and cutting machine combining a 60W MOPA laser with a 40W diode laser for processing a wide variety of materials.
Key Features
- Dual laser configuration: 60W MOPA for metals and plastics, 40W diode for organic materials
- Ultra-fast engraving speeds reaching up to 15,000 mm/s
- 220 x 220 mm working area expandable up to 220 x 500 mm
- Dual 48 MP cameras providing 0.2 mm positioning accuracy
- AI material detection and automated focus functionality
- Enclosed safety enclosure with smoke exhaust system and emergency stops
| Manufacturer | xTool |
|---|---|
| Model | P1010155 |
| Laser Type | 40 Watt diode + 60 Watt MOPA laser |
| Operation Mode | Laser engraving, laser cutting |
| Working Area | Approx. 220 x 220 mm (up to 220 x 500 mm with optional feeder) |
| Max. Operating Speed | 15,000 mm/s (590.55 ips) |
| Max. Processing Height | 150 mm |
| Built-in Camera | Dual 48 MP |
| Positioning Precision | 0.2 mm |
| Motion Accuracy | 0.00482 mm |
| Focusing Mode | Autofocus |
| Connectivity | USB, Wi-Fi, IP |
| Supported Software | xTool Creative Space, Atomm |
| Operating System | Windows, macOS |
| Supported File Formats | SVG, DXF, JPG, JPEG, PNG, BMP, TIF |
| Safety Certification | Laser Class 4 |
| Product Dimensions | 294 x 429 x 521 mm |
| Weight | 21.6 kg |
| Max Input Power | 400 W |
| Input Voltage | 100 V - 240 V, AC 50/60 Hz |
What materials can the xTool F2 Ultra process?
The 40W diode laser cuts and engraves paper, wood, leather, MDF, felt, acrylic, glass, and ceramic. The 60W MOPA laser engraves stainless steel, aluminum, brass, silver, gold, platinum, titanium, and plastics, and cuts thin metals like brass and steel.
What is the working area of the xTool F2 Ultra?
The standard working area is approximately 220 x 220 mm, which can be extended to approximately 220 x 500 mm with the optional Auto Streamline feeder.
What items are included in the package?
The package includes the xTool F2 Ultra machine, touchscreen controller, exhaust tube, power supply, power cable, USB cable, key, ribbed panel, L-shaped positioning element, dust-free cloth, screwdriver, material package, quick reference guide, and safety instructions.
