Heat Press xTool WonderPress V1.0 All-in-One, White
Xtool
| Products ID: | 196027 |
|---|---|
| Manufactured by: | Xtool |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 5905156111189 |
Delivery options to:
Choose country
The xTool WonderPress V1.0 All-in-One is a modular 3-in-1 system engineered for heat transfers, DTF film curing, craft baking projects, 3D sublimation, and vacuum forming.

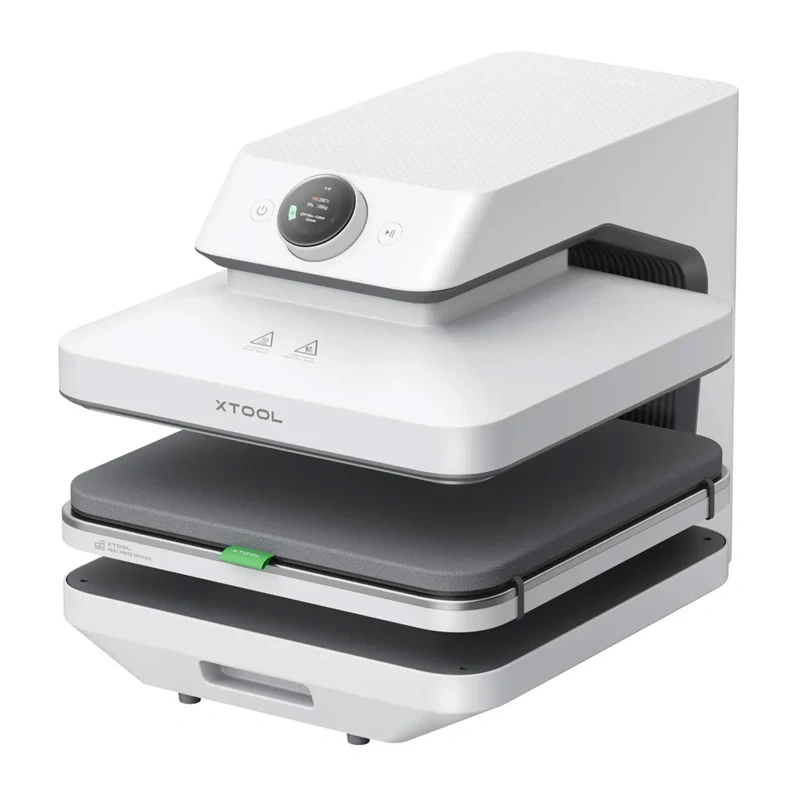

Precise Heat Pressing Without Manual Effort
The heat press delivers automatic downward pressure up to 100 kg, eliminating the need for manual lever operation. A working clearance of up to 75 mm accommodates thicker garments such as hoodies. Digital pressure adjustment in 1 kg increments, temperature tuning in 1°C steps, high-density heating tubes, and laser alignment ensure accurate and uniform heat transfer across both stations.

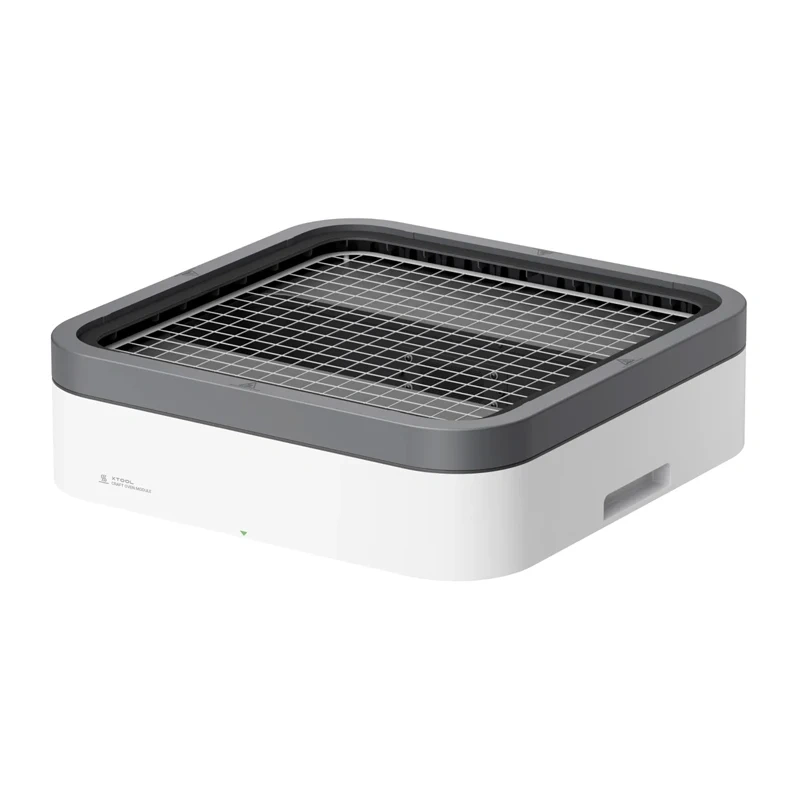

xTool Craft Oven for DTF Curing and Baking
The included xTool Craft Oven accommodates DTF films up to 432 × 432 mm with curing cycles starting at 3 minutes per film. The 398 × 158 × 80 mm chamber also supports heat-shrink sublimation for up to 3 mugs simultaneously, shrink plastic projects, acrylic bending, and polymer clay. A built-in three-layer filtration system featuring H11, activated carbon, and H13 HEPA filters captures up to 99.95% of DTF fumes directly during operation.

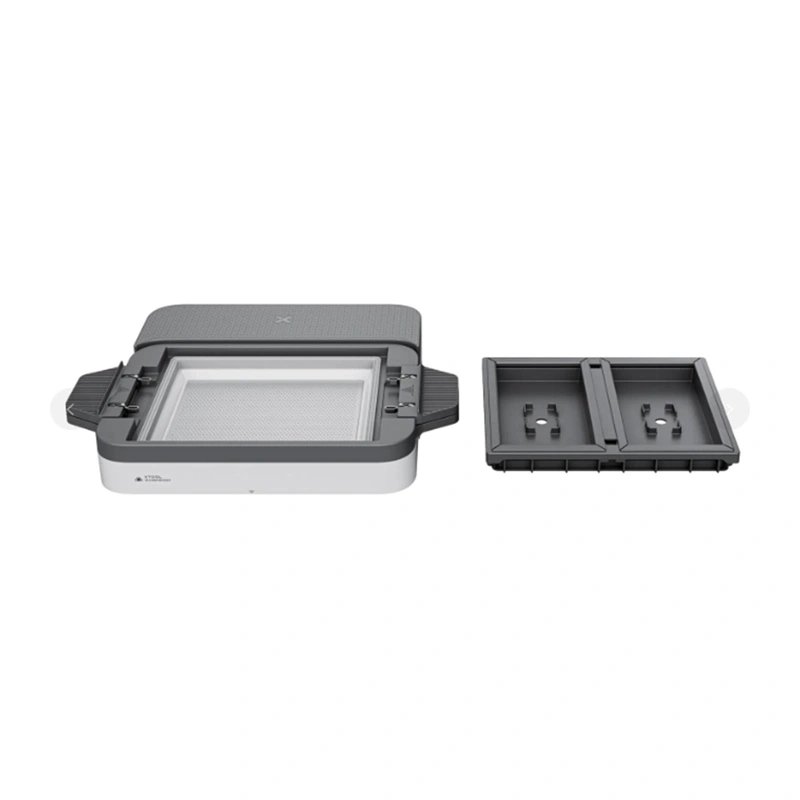

xTool 3D Form Module for Curved Sublimation and Vacuum Forming
Equipped with an internal vacuum pump, the 3D Form module conforms film to curved substrates across an area of up to 122 × 229 mm for items like phone cases. It also supports vacuum sheet forming up to -90 kPa over a 250 × 195 mm area with a draw height up to 90 mm, monitored in real time by an infrared temperature sensor.
Intuitive Modular Operation
Switching between modules requires no tools or disassembly, and the base automatically detects the attached unit. The machine features a 45.7 mm screen, a rotary dial, 35 onboard offline presets, xTool Studio app integration, and automatic standby safety.
| Manufacturer | Xtool |
|---|---|
| Name | xTool WonderPress V1.0 All in One |
| Color | White |
| Maximum press pressure | 100 kg |
| Maximum working height of the press | 75 mm |
| Pressure adjustment | In 1 kg increments |
| Temperature adjustment | In 1°C increments |
| Alignment | Laser |
| Press system | Dual station |
| Maximum DTF curing area | Films up to 432 × 432 mm |
| DTF curing time | 3 min per piece |
| Sealer chamber dimensions | 398 × 158 × 80 mm |
| Sealer air filtration | H11 + carbon filter + H13 HEPA |
| DTF vapor filtration efficiency | Up to 99.95% |
| Maximum vacuum pressure of the 3D Form module | -90 kPa |
| Maximum vacuum forming area | 250 × 195 mm |
| Maximum forming height | 90 mm |
| Maximum 3D sublimation area | Objects up to 122 × 229 mm |
| Vacuum pump | Built-in |
| Sheet temperature monitoring | Real-time infrared sensor |
| Display | 45.7 mm |
| Control | Rotary knob |
| Software | xTool Studio app |
| Built-in custom settings | 35 |
| Safety features | Automatic standby mode, slide-out design |
| Part replacement | Tool-free |
| Part recognition | Automatic |
What is included in the set?

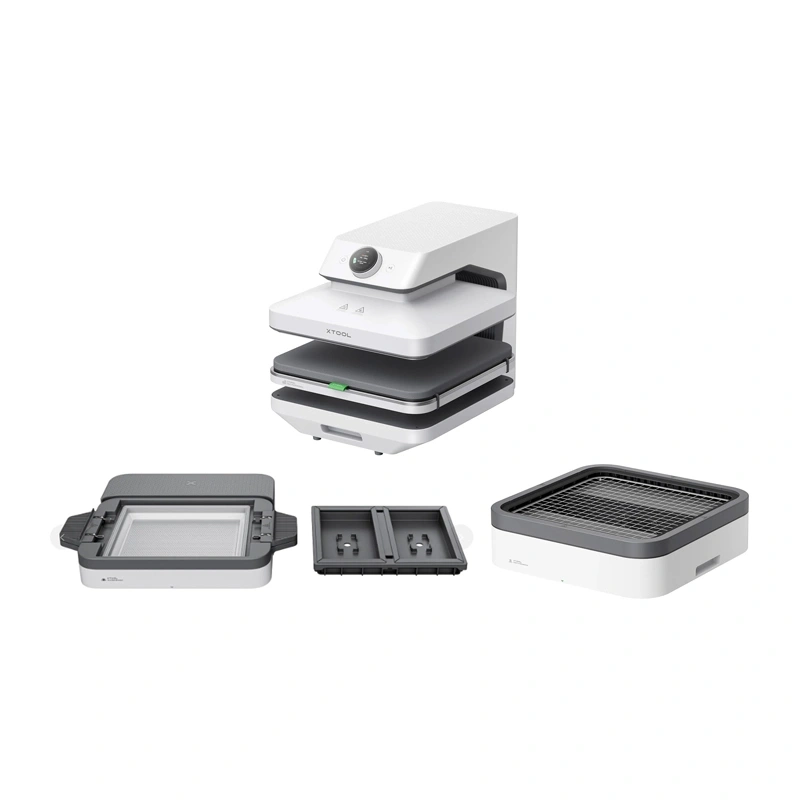

The set includes 1 xTool WonderPress V1.0 heat press, 1 xTool Craft Oven heat sealer, and 1 xTool 3D Form module.
What size of DTF films can the craft oven cure?
The xTool Craft Oven accepts DTF films up to 432 × 432 mm in size.
What are the capabilities of the 3D Form module?
The module performs 3D sublimation on objects up to 122 × 229 mm and vacuum forming up to -90 kPa over an area of 250 × 195 mm with up to 90 mm forming height.
