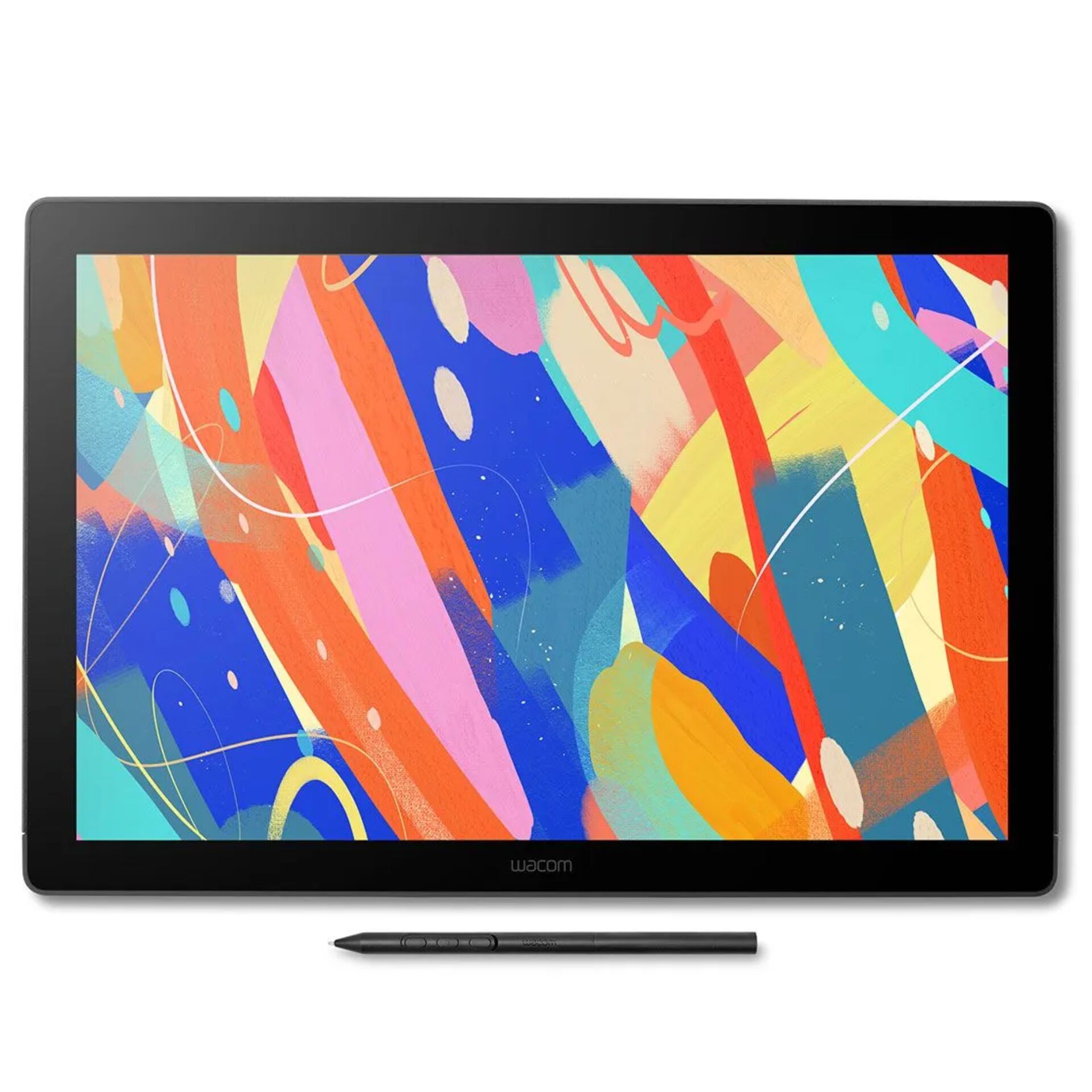

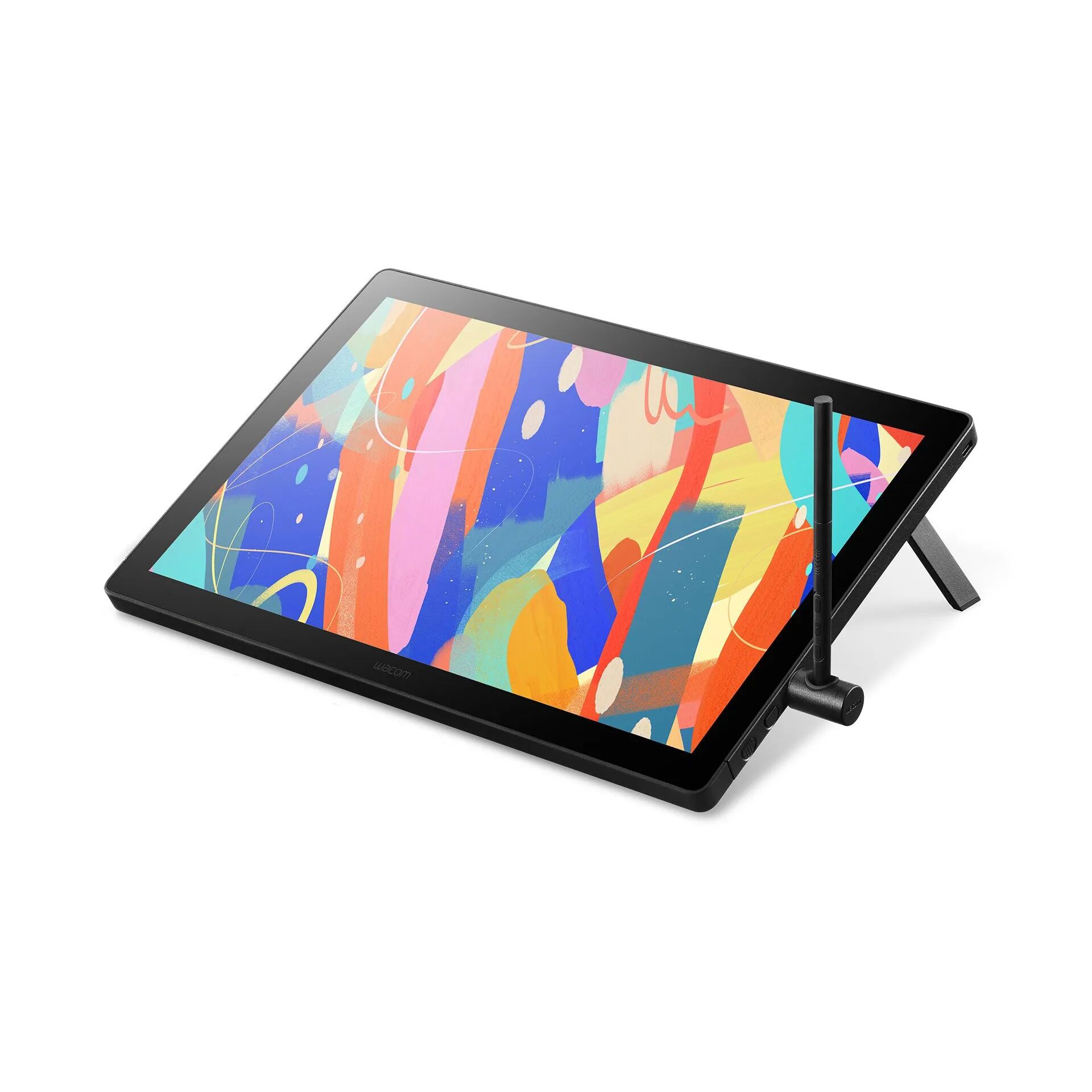

Wacom Cintiq 16 2025 Edition pen display with Pro Pen 3
Delivery options to:
Choose countryThe Wacom Cintiq 16 2025 Edition is a pen display for sketching, illustration and digital design. Its 16-inch 2.5K screen provides a 345 x 215 mm active area in a compact format for smaller workspaces.
Screen and pen control
The anti-glare surface reduces distracting reflections, while the 2560 x 1600 resolution displays fine details. The included Wacom Pro Pen 3 offers 8 192 pressure sensitivity levels, 3 side switches and tilt recognition up to ±60°. Separately available accessories allow further pen customisation.
Set up your workspace

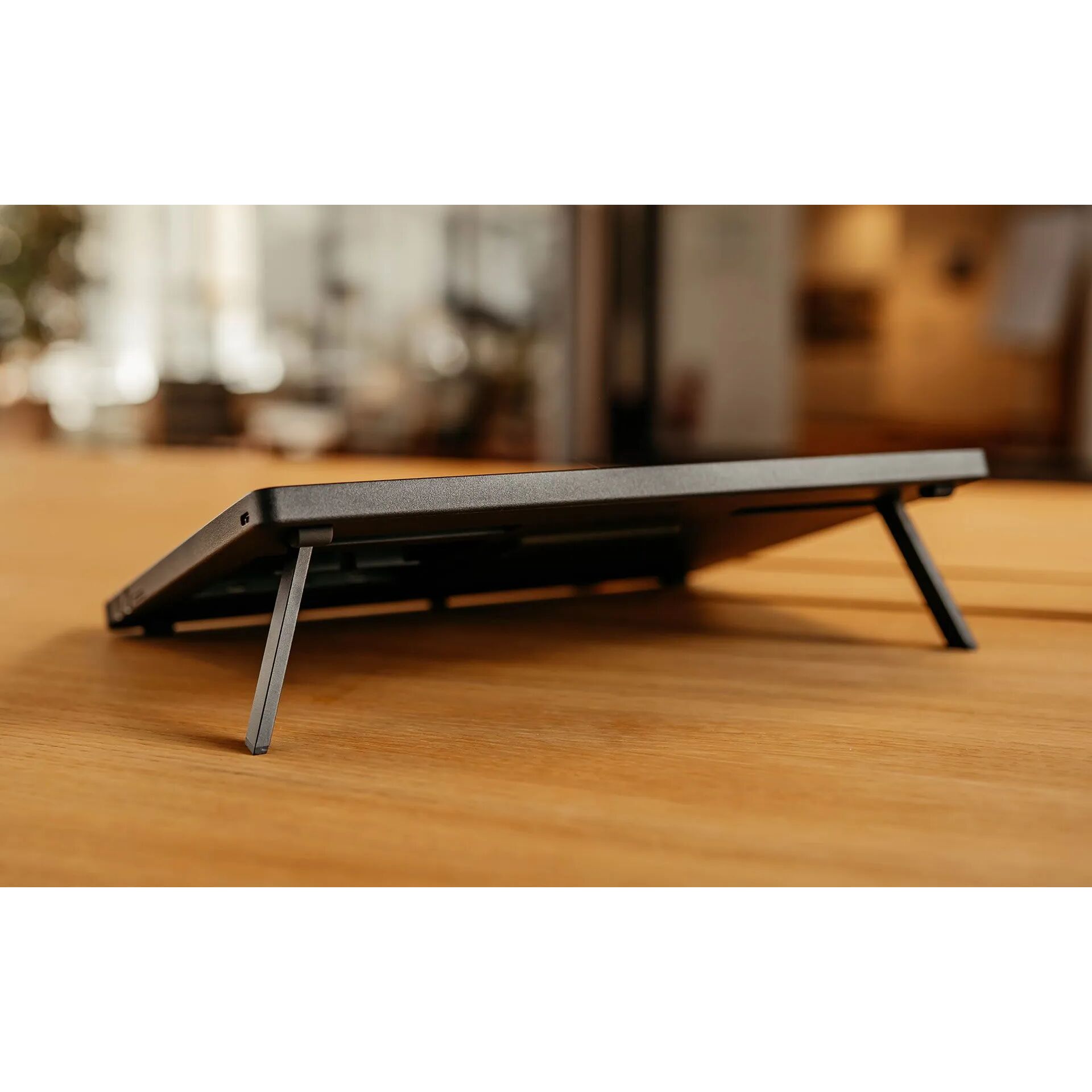

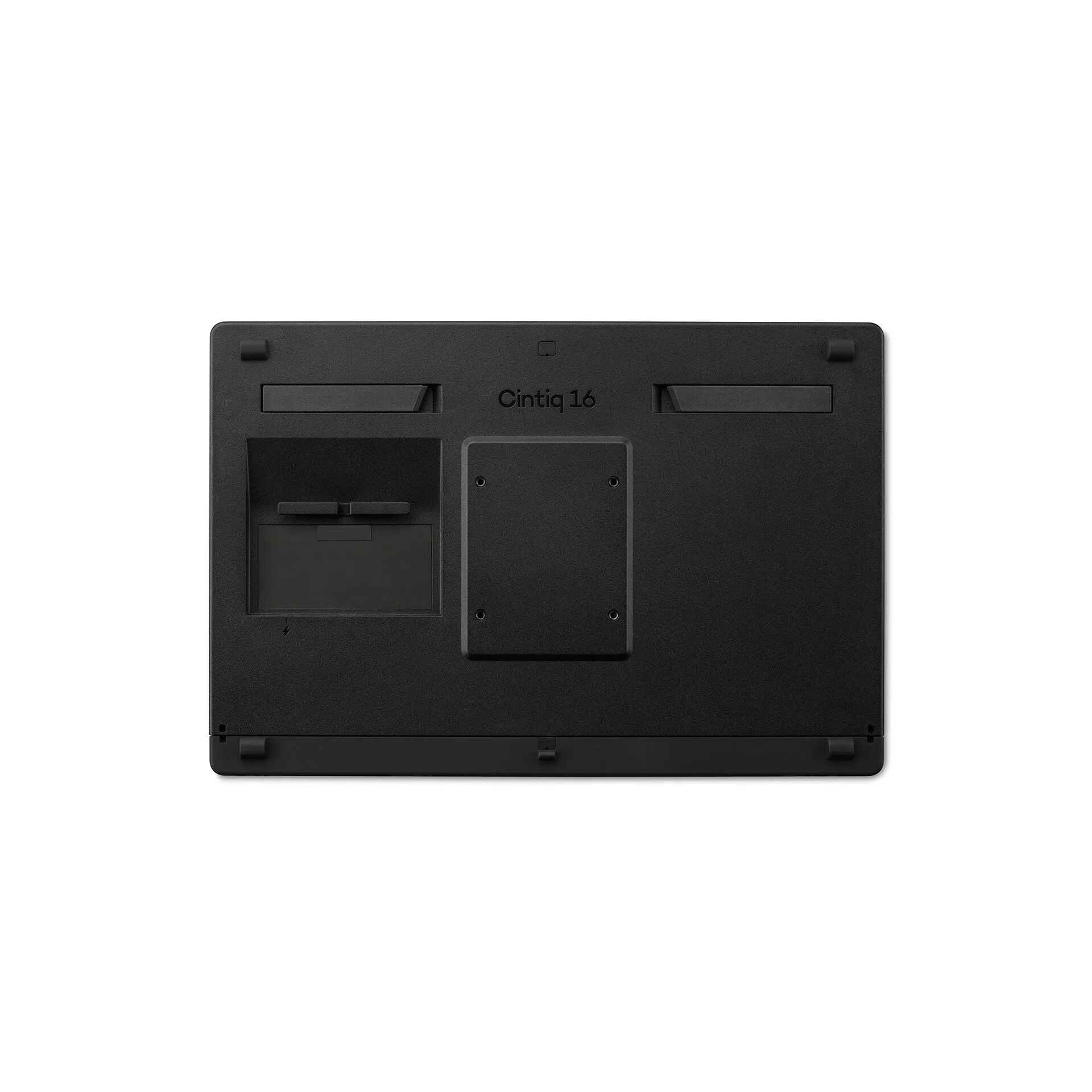

- Positioning: integrated fold-out feet provide a 20° working angle. An optional stand or a 75 x 75 mm VESA mount offers other positioning options.
- Connections: compatible devices support a single USB-C cable connection with Power Delivery. HDMI and USB-A connectivity requires optional accessories.

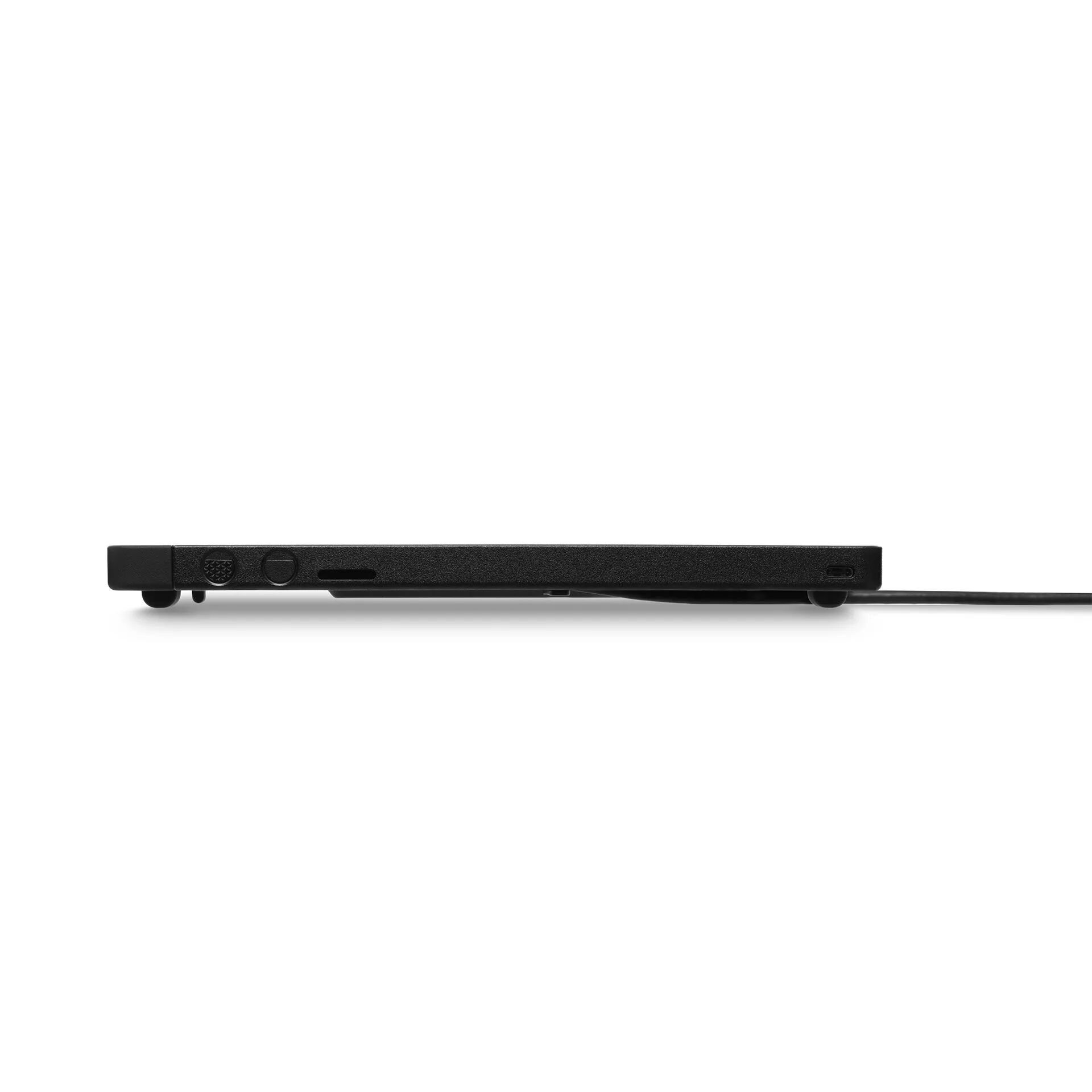

- Design: the display is 15 mm thick, weighs 2.0 kg and operates without a fan.
Included accessories and power
The package includes the display, Pro Pen 3, a vari-angle pen holder with standard and felt nibs, a nib removal tool, two 1.8 m USB-C to USB-C cables — one for DisplayPort Alt Mode and one for power — plus an AC power adapter and AC power plug. Supported charging power is 10–25 W.
| Height | 15 mm |
|---|---|
| Width | 259 mm |
| Weight | 2 kg |
| Colour | Black |
| Depth | 384 mm |
| Type | Pen tablet with display |
| On-mode energy consumption | 7 kWh/1000 h |
| Energy efficiency class | C |
| Energy label model | DTK168 |
| Visible screen diagonal in centimetres | 41 cm |
| Visible screen diagonal in inches | 16 inches |
| Screen resolution | 2560 x 1600 pixels |
| Brand | Wacom |
| Display diagonal in inches | 16 inches |
| Maximum input resolution | 5080 lpi |
| Active area | 345 x 215 mm |
| Display diagonal in centimetres | 40.64 cm |
| Brightness | 290 cd/m² |
| Maximum image resolution | 2560 x 1600 pixels |
| Aspect ratio | 16:10 |
| Contrast ratio | 1400:1 |
| HDR support | No |
| Stylus included | Yes, Wacom Pro Pen 3 |
| HDMI connectivity | Yes, with optional accessories |
| USB connectivity | Yes |
| Power supply | Power adapter |
| Screen surface | Anti-glare |
| Built-in stand feet angle | 20° |
| VESA mounting | 75 x 75 mm |
| Pressure sensitivity levels | 8 192 |
| Pen side switches | 3 |
| Tilt recognition | Up to ±60° |
| Single-cable connection | USB-C with Power Delivery, for compatible devices |
| Alternative connection | HDMI and USB-A with separately available accessories |
| Cooling design | Fanless |
| Supported charging power | 10–25 W |
| EAN | 4949268623551 |
|---|
Can the display connect with a single cable?
Compatible devices can use a single USB-C cable connection with Power Delivery. Alternatively, HDMI and USB-A connectivity is available with separately purchased accessories.
Do I need to buy a stand separately?
The integrated fold-out feet provide a 20° working angle. An optional stand offers further adjustment, and the display also supports 75 x 75 mm VESA mounting.
