Voltage Transformer 110VAC - 220VAC / 220VAC - 110VAC, 1000VA

Price: 40.70 €

Products ID:	194785
Manufactured by:	Extra Digital
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	9990000823123

Delivery options to:

Choose country

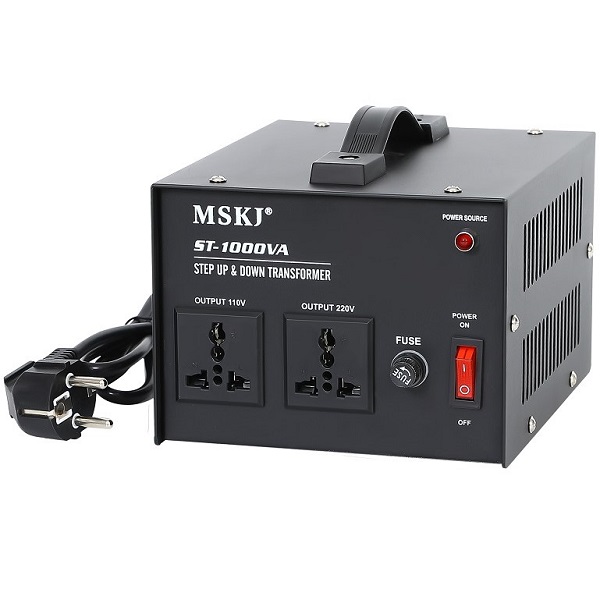

This step-up and step-down voltage transformer is engineered for electrical and electronic appliances whose rated AC voltage differs from the local mains supply. It delivers bidirectional conversion from 110V to 220V or from 220V to 110V.

Key Features and Protection

Bidirectional Operation: equipped with a voltage selection switch to set conversion between 110V and 220V AC.
Integrated Safety: includes overload and short-circuit protection, an accessible fuse holder, and an indicator light.
Continuous Operation: side ventilation slots facilitate heat dissipation during heavy loads.
Usage Guideline: for safe and reliable operation, it is recommended not to exceed 80% of the nominal capacity.

Connectivity and Handling

The unit features universal output sockets compatible with European, UK, and US plugs, an integrated power cord with a standard European plug, and a built-in handle for convenient transport.

Input voltage	AC 110V / 220V
Output voltage	AC 220V / 110V
Frequency	50/60 Hz
Phase	Single-phase
Application	Household appliances
Typical capacity	1000VA
Dimensions	195x155x125 mm
Certificates	ISO9001, CE
Warranty	24 months
