Thermal Monocular 384x288, 35mm, 4X Digital Zoom, Wi-Fi, IP66

Price: 697.00 €

Products ID:	171291
Manufactured by:	Dali
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	9990000992584

Delivery options to:

Choose country

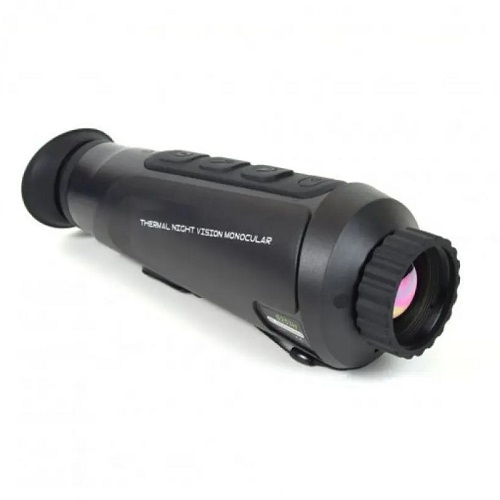

Thermal Monocular 384x288, 35mm, 4X Digital Zoom, Wi-Fi, IP66

Handheld thermal monocular featuring a 384x288 uncooled infrared sensor and a 35mm lens for clear target observation in complete darkness.

Key Features

384x288 sensor resolution with 17 µm pixel pitch and 40 mK NETD sensitivity
35mm manual focus lens with a 10.7°x8° field of view
2.3x optical magnification with 2x and 4x digital zoom
Internal display with 1440x1080 resolution and Picture-in-Picture (PIP) function
Photo and video recording with 32GB built-in storage
Wi-Fi connectivity for live streaming and file transfer to smart devices
IP66 dustproof and waterproof housing with 1m drop resistance
Up to 4 hours of continuous operation with USB Type-C charging support

Detector Resolution	384×288
Detector Type	Uncooled FPA
Pixel Pitch	17 µm
Thermal Sensitivity (NETD)	40mk@30°C
Frame Rate	50Hz
Focal Length	35mm
Field of View	10.7°x8° (±5%)
Display Resolution	1440x1080
Optical Magnification	2.3x
Digital Zoom	2x / 4x
Human Detection Distance	1000m (detection) / 500m (recognition)
Internal Storage	32GB
Wireless Connectivity	Wi-Fi
Protection Class	IP66
Operating Time	Up to 4 hours
Power Interface	USB Type-C (DC 5V / 2A)
Dimensions	200x71x71mm
Weight	450g

What is the detection and recognition range?

Under standard weather conditions, it can detect a person up to 1000m and recognize a person up to 500m.

Can recorded photos and videos be transferred wirelessly?

Yes, it includes 32GB of internal storage and built-in Wi-Fi to transfer media and stream live video to smart devices.

How long does the battery last?

The rechargeable lithium-ion battery provides up to 4 hours of continuous use and can be recharged or powered using an external power bank via USB Type-C.
