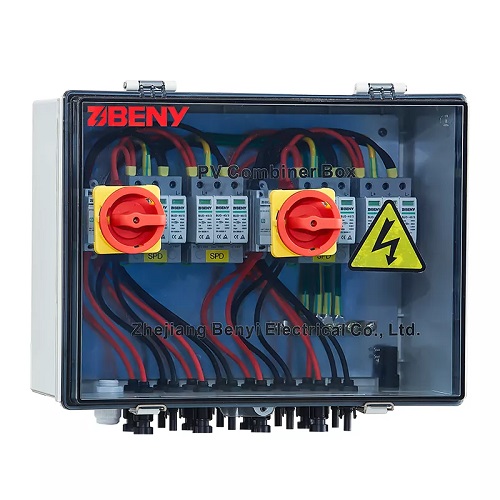

Solar PV Combiner Box DC 4 In 4 Out 1000V IP66
Price: 389.30 €
| Products ID: | 170863 |
|---|---|
| Manufactured by: | Beny |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000820153 |
Delivery options to:
Choose countryDC string combiner box designed for 4-string solar PV systems to provide surge protection and isolation on the DC side.
Key Features
- 4 input and 4 output configuration rated at 1000V DC
- IP66 waterproof enclosure with IK10 impact resistance, UV resistance, and V0 flame retardant rating
- Includes 2 pcs 4P 1000V 50A DC disconnect switches with lockable handles
- Includes 4 pcs 3P 1000V 40kA DC surge protective devices (SPD)
- Supplied with MC4 connectors and cable glands
| Configuration | 4 In / 4 Out |
|---|---|
| Rated Voltage | 1000V DC |
| Enclosure Rating | IP66 |
| Impact Resistance | IK10 |
| Flame Retardant Rating | V0 |
| DC Switch | 2 pcs, 4P, 1000V, 50A |
| DC SPD | 4 pcs, 3P, 1000V, 40kA |
| Included Accessories | MC4 connectors, cable glands |
How many PV strings does this combiner box support?
This combiner box is designed for a 4-string PV system with 4 inputs and 4 outputs.
What protection ratings does the enclosure feature?
The enclosure features an IP66 waterproof rating, IK10 impact resistance, UV resistance, and a V0 flame retardant rating.
