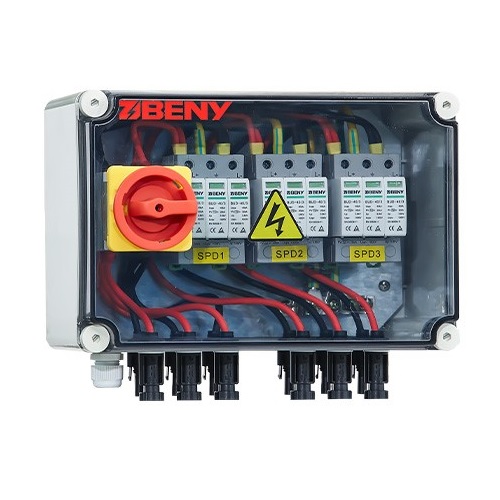

PV Combiner Box DC 3 In 3 Out 1000V IP66
Price: 262.10 €
| Products ID: | 170853 |
|---|---|
| Manufactured by: | Beny |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000820146 |
Delivery options to:
Choose countryDC combiner box designed for 3-string solar photovoltaic systems, providing isolation and surge protection on the DC side.
Key Features
- 3 inputs and 3 outputs for 1000V DC systems
- IP66 waterproof rating and IK10 impact resistance
- V0 flame retardant and UV resistant enclosure
- Integrated 6P 1000V 50A DC switch
- Three 3P 1000V 40kA DC surge protective devices (SPD)
- Supplied with MC4 connectors and cable glands
| Inputs / Outputs | 3 inputs / 3 outputs |
|---|---|
| Voltage | 1000V DC |
| Enclosure rating | IP66 |
| Impact resistance | IK10 |
| Flame retardant rating | V0 |
| DC switch | 6P, 1000V, 50A (1 pc.) |
| DC SPD | 3P, 1000V, 40kA (3 pcs.) |
| Included accessories | MC4 connectors and glands |
How many PV strings can be connected?
This combiner box is designed for a 3-string solar PV system with 3 DC inputs and 3 DC outputs.
What protection devices are included inside the box?
The box includes one 6P 1000V 50A DC isolator switch and three 3P 1000V 40kA DC surge protective devices (SPDs).
