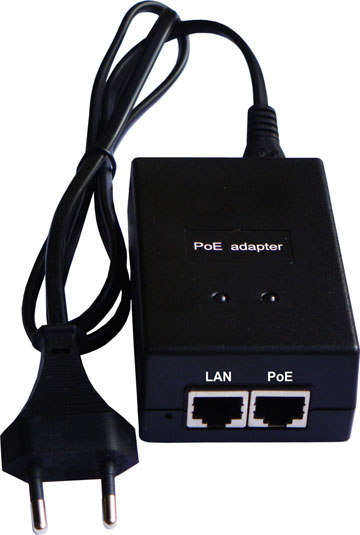

PoE Injector 48V 0.4A 19.2W (10/100Base-T)
Price: 21.10 €
| Products ID: | 170814 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 4775342570479 |
Delivery options to:
Choose countryThis PoE injector provides DC power to network equipment over standard RJ-45 cabling via wire pairs 4, 5 (+) and 7, 8 (-).
Key Features
- Complies with IEEE 802.3/802.3u 10/100Base-T standards
- Supplies +48Vdc output with load from 0A to 0.4A
- Transmission distance up to 100 meters
- Provides up to 15.4W of Power over Ethernet
- Wide AC input voltage range from 90Vac to 264Vac (47Hz–63Hz)
| Input Voltage | 90Vac – 264Vac |
|---|---|
| Input Frequency | 47Hz – 63Hz |
| Input Current | 0.6A max. |
| Output Voltage | +48Vdc (45.6V ~ 50.4V) |
| Output Current | 0A – 0.4A |
| Network Standard | IEEE 802.3 / 802.3u 10/100Base-T |
| PoE Pin Assignment | Pairs 4, 5 (+) & 7, 8 (-) |
| Transmission Distance | Up to 100 m |
| Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 20% ~ 90% (non-condensing) |
What is the maximum supported transmission distance?
The injector supports transmission distances of up to 100 meters over RJ-45 network cable.
Which RJ-45 pins are used for power transmission?
Power (48Vdc) is supplied via pairs 4, 5 (+) and 7, 8 (-) of the RJ-45 cable.
