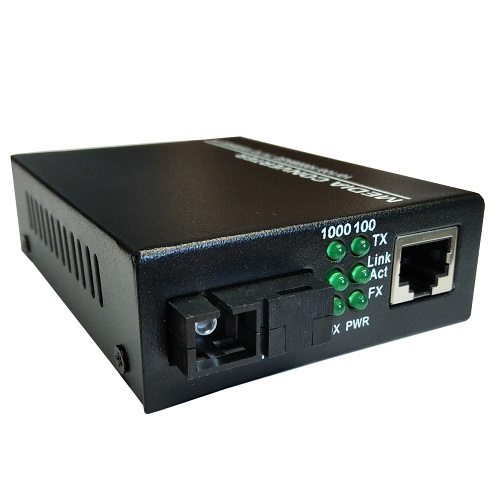

Media Converter 10/100/1000M TX1310nm Single Mode
Planet Technology Corporation
Price: 26.90 €
| Products ID: | 193492 |
|---|---|
| Manufactured by: | Planet Technology Corporation |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 4775342530817 |
Delivery options to:
Choose countryThe 10/100/1000M TX1310nm media converter converts Ethernet network traffic for transmission across single-mode optical fiber lines.
Key Features and Operations
Designed for reliable network integration, this converter incorporates standard transmission protocols and built-in flow control.
- Conforms to IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX/FX standards
- Integrated chip with up to 2M buffer memory and 1.4Gbps memory bandwidth
- Auto-detection of MDI/MDI-X cross line on the RJ-45 port
- Back pressure flow control for half duplex and IEEE 802.3x for full duplex operation
- Complies with FCC Part 15 Class B and CE safety requirements
| Standard Protocols | IEEE 802.3 10 Base-T, IEEE 802.3u 100Base-TX/FX |
|---|---|
| Connectors | 1x UTP RJ-45, 1x SC/ST |
| Operation Mode | Full duplex or half duplex |
| Power Supply Parameters | External: 5V DC 1A; Built-in: 110-265V AC / 48V DC |
| Operating Temperature | 0 °C - 60 °C |
| Relative Humidity | 5% - 90% |
| TP Cable | Cat5 UTP cable |
| Transfer Fiber | Single mode: 8.3/125, 8.7/125, 9/125, or 10/125 µm |
| Dimensions (External Power) | 26 mm x 70 mm x 95 mm |
| Buffer Memory | Max. 2M |
| Memory Bandwidth | 1.4 Gbps |
What type of optical fiber is compatible with this media converter?
It supports single-mode optical fiber with core/cladding sizes of 8.3/125, 8.7/125, 9/125, or 10/125 µm operating at TX 1310 nm.
What cable is required for the Ethernet port?
The RJ-45 connector uses Cat5 UTP cabling and supports automatic MDI/MDI-X crossover detection.
