FNIRSI DPOX180H 2-in-1 Handheld Digital Phosphor Oscilloscope

Name: FNIRSI DPOX180H Handheld Oscilloscope & Generator
Brand: Fnirsi
SKU: DPOX180H
Price: 127.10 EUR
Availability: BackOrder

-8%

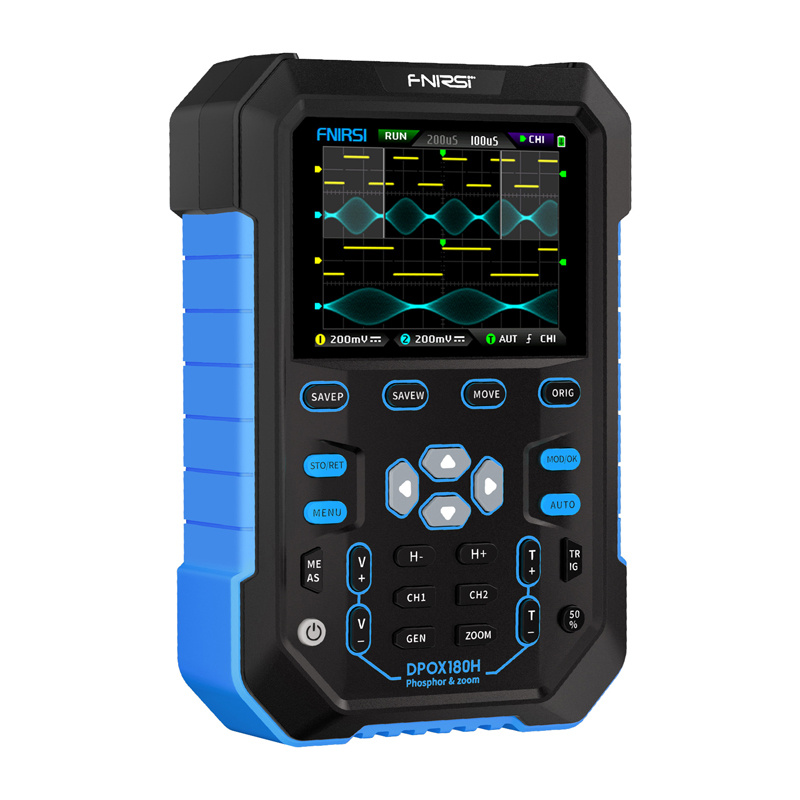

FNIRSI DPOX180H 2-in-1 Handheld Digital Phosphor Oscilloscope — Image 1

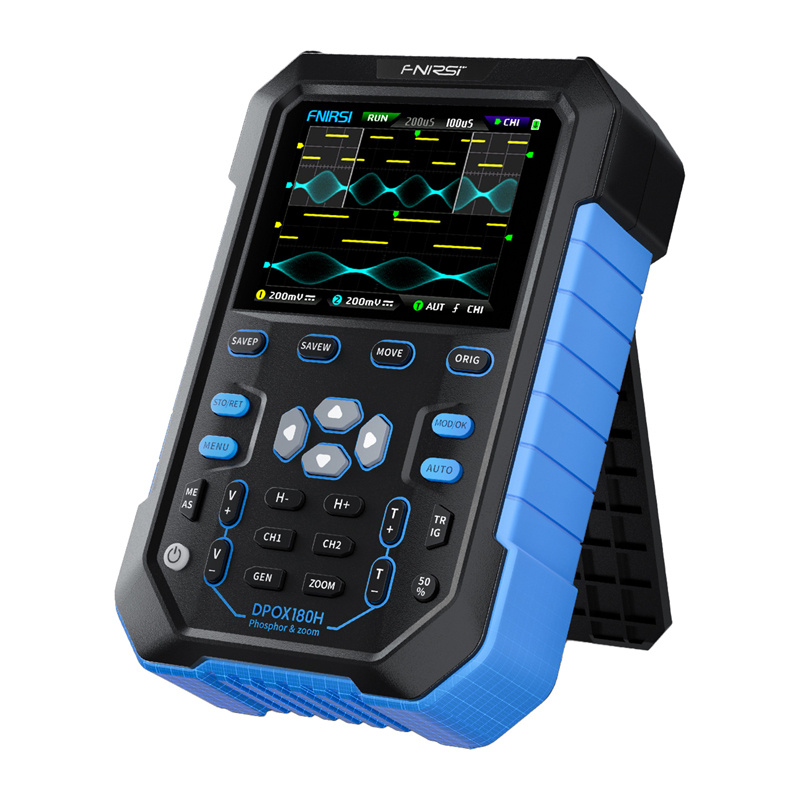

FNIRSI DPOX180H 2-in-1 Handheld Digital Phosphor Oscilloscope — Image 2

FNIRSI DPOX180H 2-in-1 Handheld Digital Phosphor Oscilloscope — Image 3

FNIRSI DPOX180H 2-in-1 Handheld Digital Phosphor Oscilloscope — Image 4

FNIRSI DPOX180H 2-in-1 Handheld Digital Phosphor Oscilloscope — Image 5

138.80 €127.10 €

Products ID: 149240

In supplier warehouse Available to order: 10+ pcs. Delivery Time 5–12 business days

Delivery options to:

Choose country

The FNIRSI DPOX180H is a compact handheld Digital Phosphor Oscilloscope (DPO) that combines a 180 MHz dual-channel oscilloscope and a 20 MHz DDS function generator. It is perfectly suited for service, workshop, and laboratory work, offering high functionality in a single device.

Key Features

180 MHz Bandwidth: Real-time sampling up to 500 MSPS for precise measurements.
Digital Phosphor Technology: Visualizes signal frequency using brightness scale and color temperature.
High Refresh Rate: 50,000 waveforms per second to effectively capture signal anomalies.
Built-in DDS Generator: 20 MHz generator with 14 waveform types and frequency adjustment.
Data Storage: 120 Mbit internal memory for up to 250 waveforms and 90 screenshots.
Portable & Safe: 2.8-inch IPS screen, 3000 mAh battery, and input protection up to 400 V.

Specification	Details
Number of Channels	2
Analog Bandwidth	180 MHz (-3 dB)
Sampling Frequency	500 MSPS (1 channel) / 250 MSPS (2 channels)
Screen	2.8-inch IPS LCD (320 × 240 px)
Battery	3000 mAh (up to 4 hours)
