Darkflash PMT850A3 850W 80 Plus Gold Computer Power Supply, Black

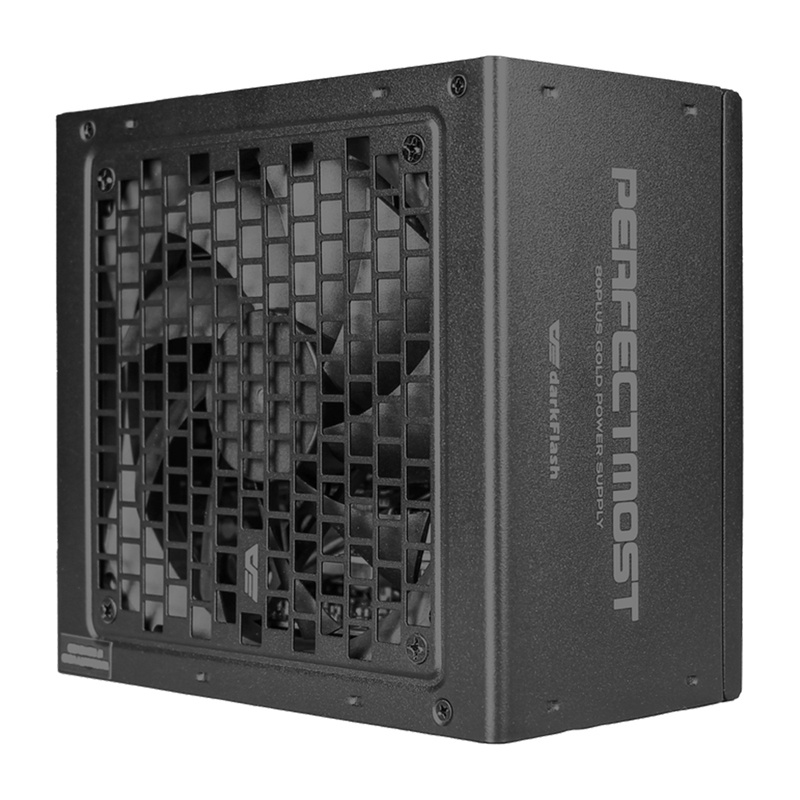

The Darkflash PMT850A3 is an 850W ATX power supply unit engineered with 80 Plus Gold efficiency and full compliance with ATX 3.1 and PCIe 5.1 standards. It provides stable and efficient power delivery for demanding gaming and professional workstation builds.

Key Features

PCIe 5.1 & 12VHPWR Support: Dedicated 12+4 pin (650 mm) cable delivers up to 600W directly to compatible graphics cards without adapters.
80 Plus Gold Certified: Delivers up to 91% efficiency at 230V typical load and adheres to ErP Lot3 2014 with under 0.5W standby power consumption.
Single +12V Rail: Features a powerful 70.8A single +12V rail paired with DC-to-DC topology and active PFC (99%) for stable voltage regulation.

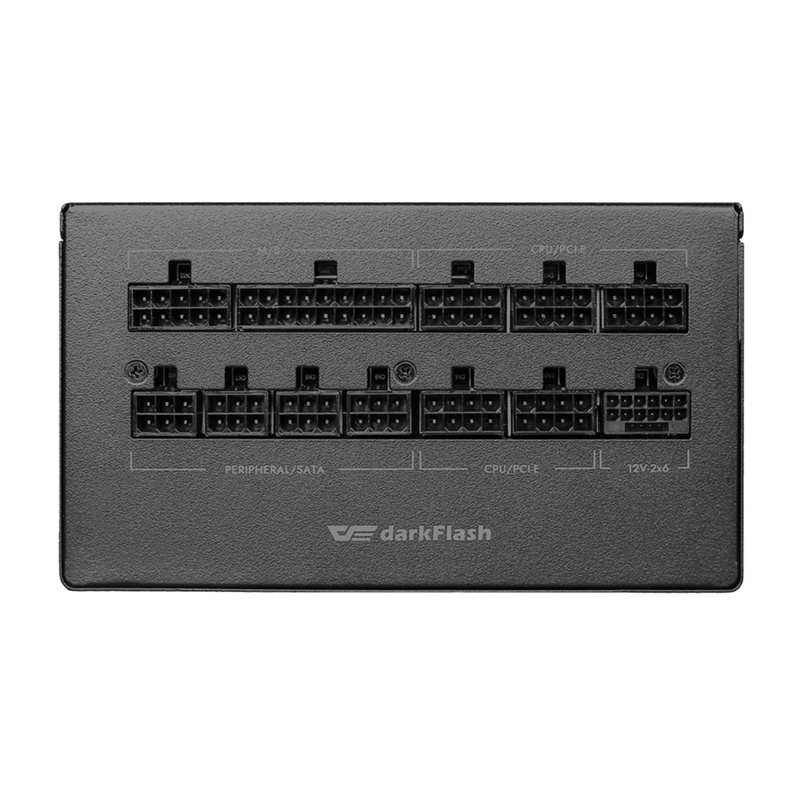

Modular Cabling: Flat, flexible 18AWG modular cables simplify cable management and enhance airflow inside the chassis.

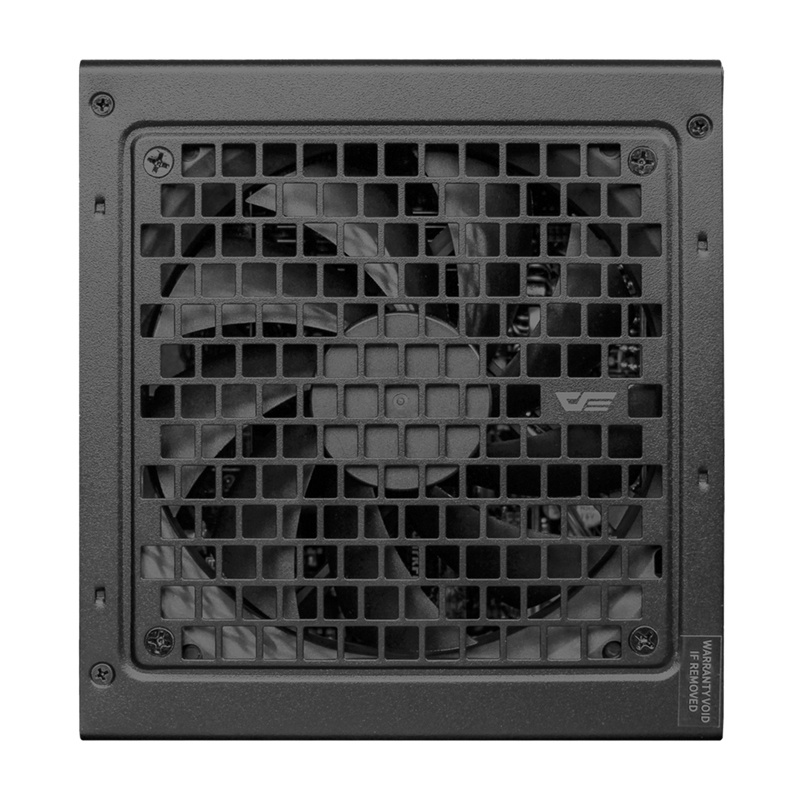

120mm Hydro Bearing Fan: Semi-passive cooling keeps the fan off until system load reaches 30%, balancing quiet operation and effective thermal dissipation.
Multi-Level Protection: Equipped with OVP, OCP, OPP, SCP, OTP, UVP, NLP, and 4kV surge immunity.
Compact Dimensions: Standard ATX size measuring 140 × 150 × 86 mm fits standard PC cases.

Manufacturer	Darkflash
Model	PMT850A3 Black
Rated Power	850 W
Standard	ATX 12V version 3.1 / PCIe 5.1
Efficiency Certification	80 PLUS GOLD
Fan	120 mm Hydro Bearing
Capacitors	Japanese, rated up to 105°C
Protection Features	OVP, OCP, OPP, SCP, OTP, UVP, NLP, Surge 4K
+12V Max Current	70.8 A
12VHPWR Power	Up to 600 W
Dimensions	140 × 150 × 86 mm
Color	Black

Does this power supply include a native 12VHPWR cable?

Yes, it includes a dedicated 12VHPWR (12+4 pin, 650 mm) cable capable of supplying up to 600W of power to PCIe 5.1 graphics cards.

What items are included in the package?

The package contains the Darkflash PMT850A3 PSU, power cord, 20+4 pin cable, two 4+4 pin CPU cables, two 6+2 pin PCIe cables, 12VHPWR cable, three SATA/peripheral cables, cable pouch, mounting screws, cable ties, gloves, and a user manual.
