Darkflash TH285M Computer Case, Micro-ATX / Mini-ITX, Black
Darkflash
| Products ID: | 186259 |
|---|---|
| Manufactured by: | Darkflash |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 4711527000652 |
Delivery options to:
Choose countryThe Darkflash TH285M is a compact Midi Tower computer case in black, designed for builds based on Micro-ATX and Mini-ITX motherboards.

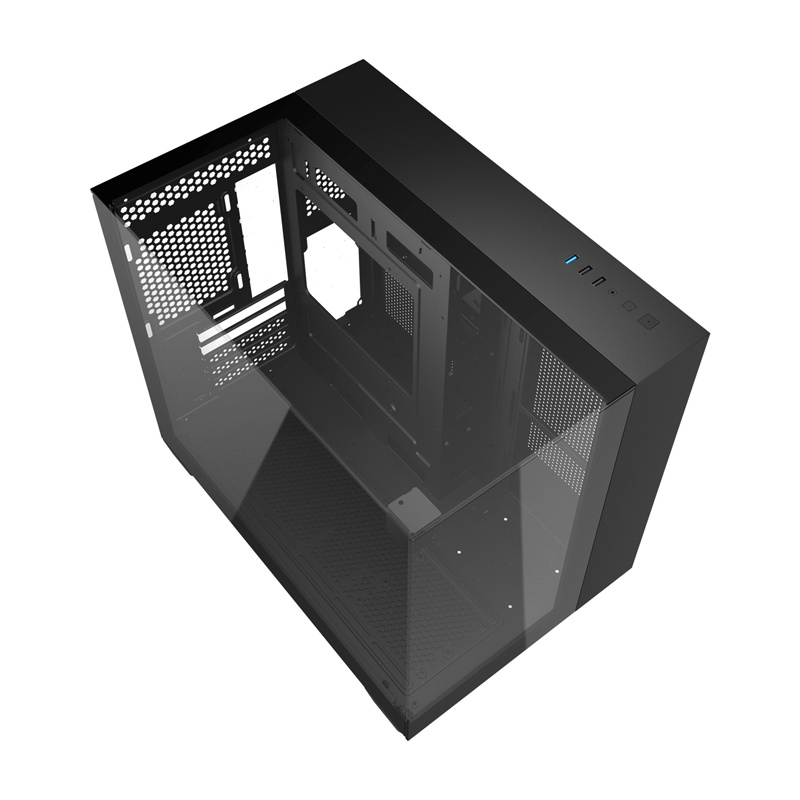

Three-Sided Tempered Glass Design

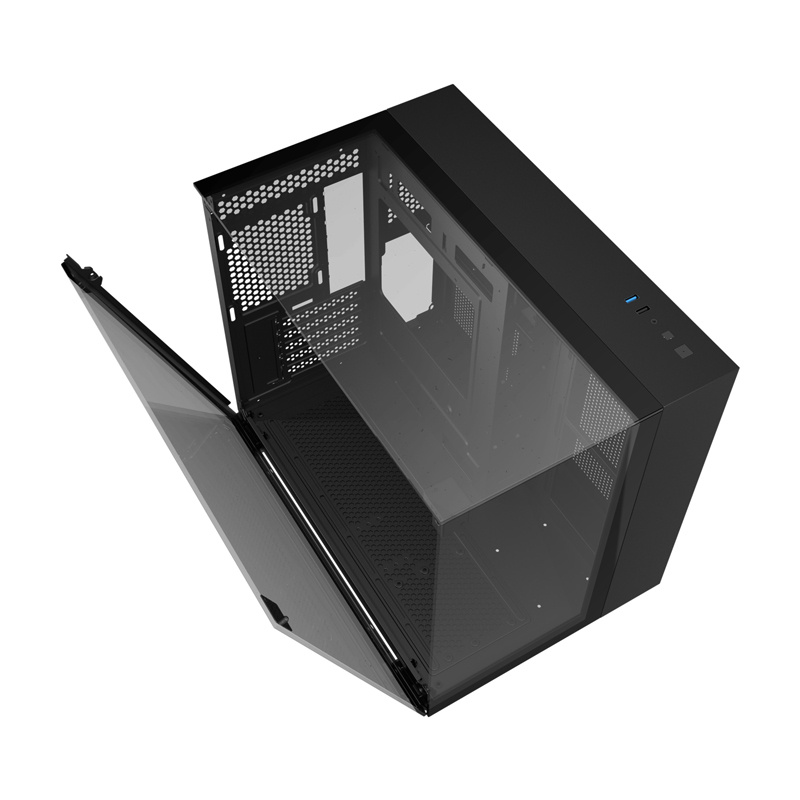

The chassis features three transparent tempered glass panels that offer an unobstructed view of internal components. The side panel is mounted with thumb screws, allowing quick and tool-free access whenever hardware adjustments are needed.
Component Compatibility and Clearance
The internal layout is engineered to fit high-performance components:
- CPU coolers with a maximum height of up to 160 mm
- Graphics cards up to 415 mm in length
- Power supply units up to 240 mm in length (bottom-mounted)
- 5 PCI expansion slots
- Storage drive bays for two 3.5' HDDs and three 2.5' SSDs
Cooling Support and Front Panel Ports
The TH285M supports up to six fans across the rear, side, and bottom positions, as well as liquid cooling radiators up to 360 mm at the bottom and up to 280 mm on the side. The I/O panel includes one USB 3.0 port, two USB 2.0 ports, HD Audio jacks, and dedicated Power and Reset buttons.
| Manufacturer | Darkflash |
|---|---|
| Model | TH285M |
| Housing type | Midi Tower |
| Side panel | Tempered glass |
| Motherboard standard | ITX, M-ATX |
| Power supply standard | At the bottom |
| Slots for internal drives | 3.5'HDD x2, 2.5'SSD x3 |
| Expansion card slots | 5 |
| Max PSU length | 240 mm |
| Max length of graphics card | 415 mm |
| Max height of CPU cooler | 160 mm |
| Max number of fans | 6 |
| Fan mounting options | Rear: 120 mm x1; Side: 120 mm x2/140 mm x2; Bottom: 120 mm x3 |
| Water cooling mounting options | Side 280 mm, 280 mm; Bottom 240 mm, 360 mm |
| Number of fans installed | No fans installed |
| Type of fans | No fans installed |
| Buttons and controls | Power, Reset |
| Connectors | USB3.0 x1, USB2.0 x2, HD Audio |
| Material | 0.7 mm SPCC |
| Color | Black |
| Height | 373 mm |
| Width | 285 mm |
| Depth | 426 mm |
Which motherboard form factors are supported by the Darkflash TH285M?
The case supports Micro-ATX (M-ATX) and Mini-ITX (ITX) motherboards.
Does this computer case include pre-installed fans?
No, the case comes with no pre-installed fans, allowing custom installation of up to six 120 mm cooling fans.
What is the maximum supported graphics card length?
The chassis can accommodate graphics cards with a maximum length of up to 415 mm.
