DarkFlash B275 Mini Tower PC Case, M-ATX / ITX, Tempered Glass, Black
Price: 43.90 €
| Products ID: | 178201 |
|---|---|
| Manufactured by: | Darkflash |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 4711527007583 |
Delivery options to:

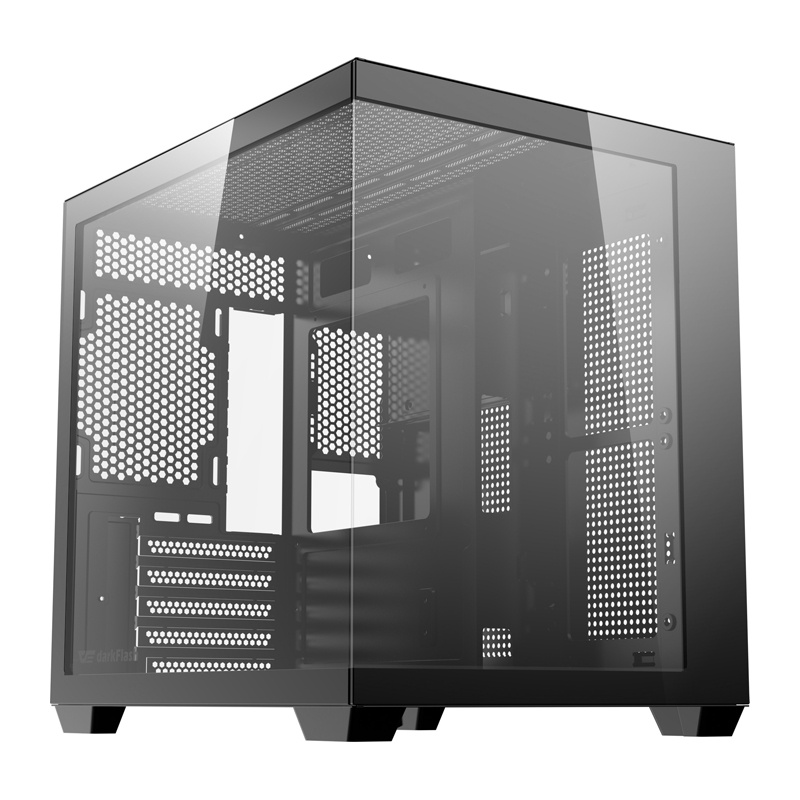

Choose countryThe DarkFlash B275 is a compact PC case designed for modern builds using M-ATX or ITX motherboards. Featuring dual tempered glass panels and a pillarless corner design, it delivers a 270° panoramic view of internal components.
Key Features

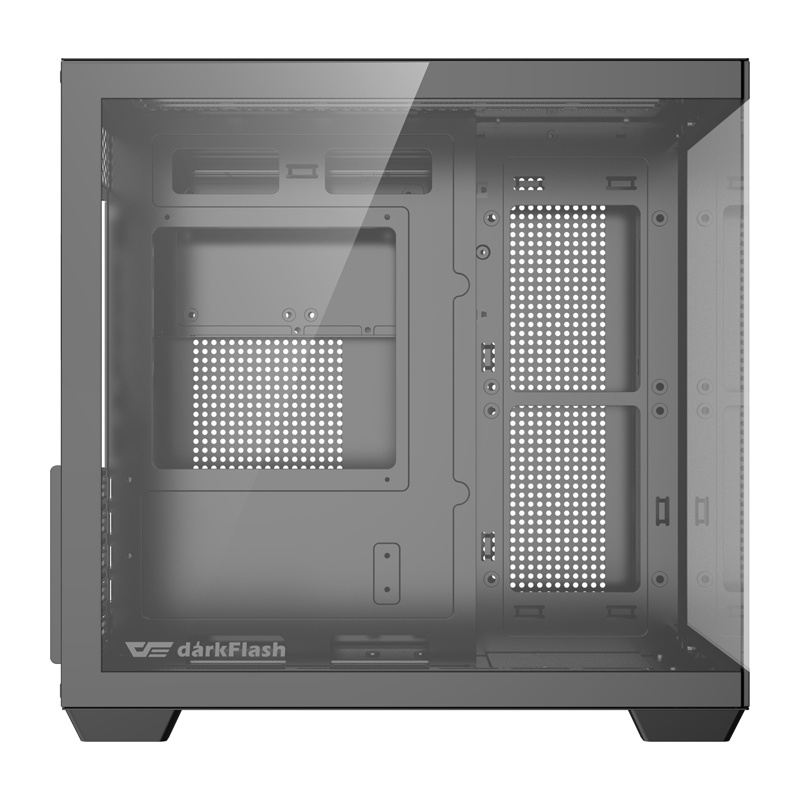

- 270° panoramic view with front and side tempered glass panels
- Supports graphics cards up to 340 mm in length and CPU coolers up to 160 mm in height
- Quick-release panel design for effortless installation and maintenance
- Accommodates up to seven 120 mm fans or radiators up to 280 mm
- Integrated dust filters on the top and bottom

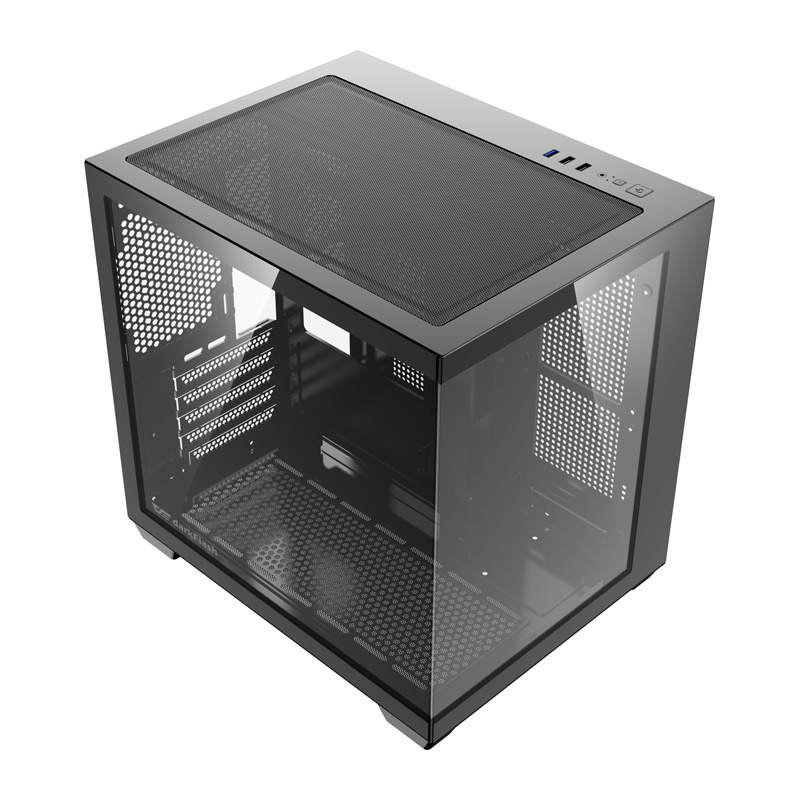

- Top I/O panel with USB-A 3.0, two USB-A 2.0 ports, and HD Audio
| Manufacturer | DarkFlash |
|---|---|
| Model | B275 |
| Case type | Mini tower |
| Side panel | Tempered glass |
| Motherboard standard | M-ATX / ITX |
| Power supply standard | ATX |
| Internal drive bays | SSD x3 / HDD x1 |
| Expansion card slots | 5 |
| Max power supply length | 200 mm |
| Max graphics card length | 340 mm |
| Max CPU cooler height | 160 mm |
| Max number of fans | 7 |
| Fan mounting options | Top: 120 mm x2 / 140 mm x2; Side: 120 mm x2; Rear: 120 mm x1; Bottom: 120 mm x2 |
| Water cooling mounting options | Top: 240 mm / 280 mm; Side: 240 mm; Bottom: 240 mm |
| Number of fans installed | No fans installed |
| Fan type | No fans installed |
| Buttons and controls | Power, Reset |
| Connectors | USB-A 3.0 x1, USB-A 2.0 x2, HD Audio |
| Material | 0.5 mm SPCC |
| Color | Black |
| Height | 354 mm |
| Width | 275 mm |
| Depth | 355 mm |
| Weight | Approx. 4.5 kg |
What motherboard sizes fit inside the DarkFlash B275?
The case is compatible with M-ATX and ITX motherboards.
What is the maximum supported graphics card length?
The DarkFlash B275 accommodates graphics cards up to 340 mm in length.
Does the case come with pre-installed fans?
No, this model does not include pre-installed fans.
