Portable EV charger Dé deM2D03B15A_DL, Mode 2, 3.7 kW, 15m cable
dé
| Products ID: | 186395 |
|---|---|
| Manufactured by: | dé |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6975828005084 |
Delivery options to:

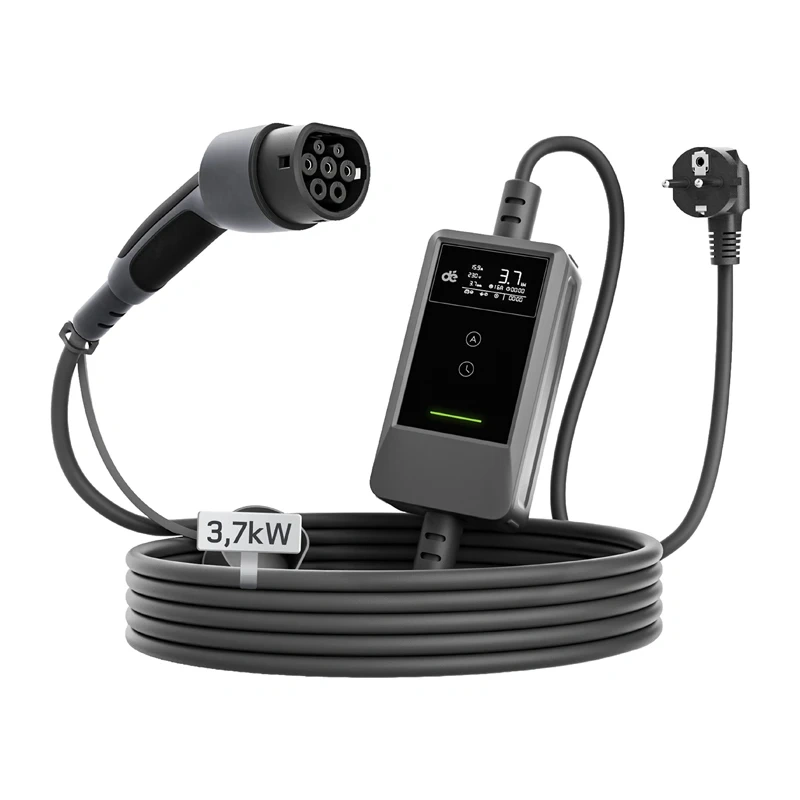

Choose countryThe Dé deM2D03B15A_DL portable EV charger is a single-phase Mode 2 device delivering up to 3.7 kW of power for electric vehicles at home or while traveling. Its 15-meter cable provides flexible reach when the electrical outlet is positioned away from the parking area.
Adjustable Current and Smart Controls
Charging current can be adjusted within the 6–16 A range to match electrical supply limits. The integrated touch button allows switching between 6 A, 8 A, 10 A, 13 A, and 16 A steps, while the mobile app enables continuous adjustment across 6–16 A. Scheduled charging and delayed start functions allow users to time charging sessions conveniently, supported by an LED display and three-color operational status indicators.
Protection and Temperature Management
The charger incorporates a 30 mA Type A RCD along with 6 mA DC current protection. Built-in safeguards monitor overvoltage, undervoltage, overload, PE conductor continuity, and relay contact welding. Thermal sensors monitor temperature at both the power plug and internal components: current is restricted to 6 A if temperatures exceed 70°C, and charging stops completely if temperatures reach above 75°C.
Indoor and Outdoor Reliability
With an IP66 water and dust protection rating on the control module, the unit is suited for both indoor and outdoor environments across operating temperatures from -25°C to 50°C. Measuring 176 × 93 × 49 mm and carrying DEKRA certification, it serves as a compact solution for garage or travel use.
| Manufacturer | DEPOW |
|---|---|
| Model | deM2D03B15A_DL |
| Type | portable Mode 2 EV charger |
| Power supply | single-phase |
| Power | up to 3.7 kW |
| Current adjustment | 6–16 A |
| Button-based adjustment | 6 A / 8 A / 10 A / 13 A / 16 A |
| App-based adjustment | continuous, 6–16 A |
| Operating voltage | 85–280 V AC |
| Frequency | 50 Hz ±2% |
| Control | app and touch button |
| Timed functions | charging schedule and delayed start |
| RCD | Type A 30 mA + DC 6 mA |
| Control module protection rating | IP66 |
| Operating temperature | -25°C to 50°C |
| Storage temperature | -40°C to 80°C |
| Maximum operating altitude | ≤2000 m |
What is the length of the charging cable?
The charging cable measures 15 meters in length.
How can the charging current be configured?
Current can be adjusted to 6 A, 8 A, 10 A, 13 A, or 16 A via the onboard touch button, or continuously between 6 A and 16 A using the mobile app.
How does the temperature protection function?
The device reduces charging current to 6 A if temperature at the plug or internal components exceeds 70°C, and shuts down charging completely if temperature exceeds 75°C.
