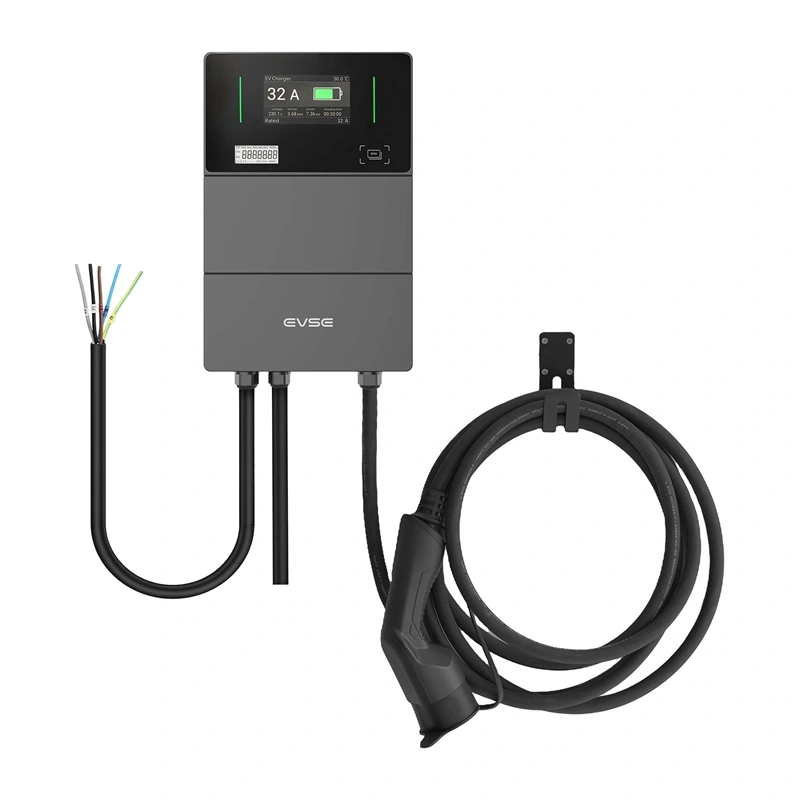

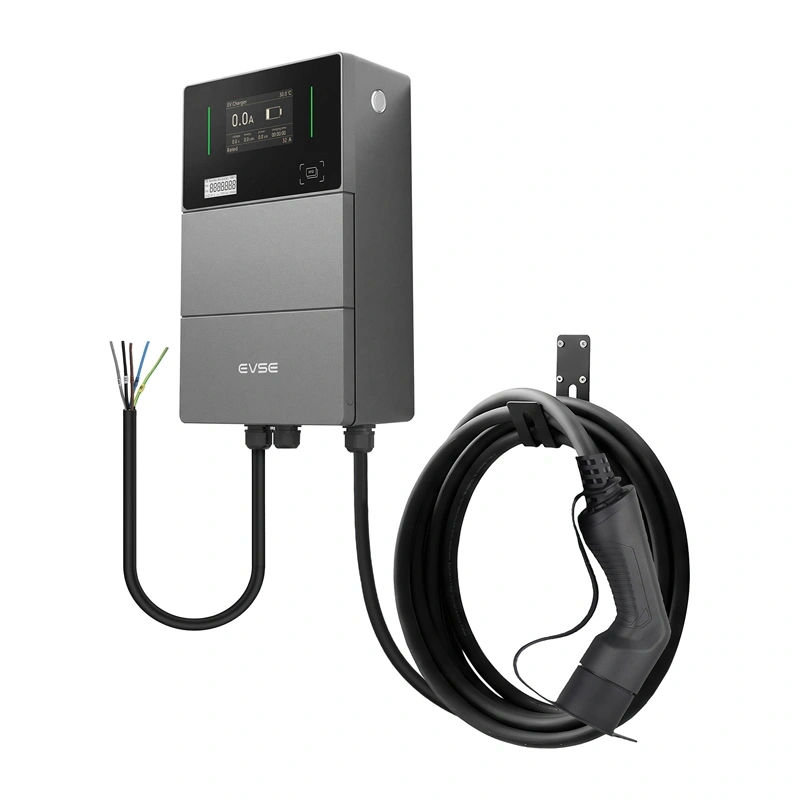

Besen BS40-22KW-DLB-APP 22 kW EV charger
Delivery options to:
Choose countryThe Besen BS40-22KW-DLB-APP charges electric vehicles at up to 22 kW using a 32 A three-phase supply. Mobile app control and Dynamic Load Balancing (DLB) provide access to charging controls and management of the electrical system’s available power.
Charging control and protection
- Mobile app: access the device controls from the app.
- DLB: manage the electrical system’s available power for charging.
- Protection functions: protection against undervoltage, current overload, short circuits, ground faults, overheating and the effects of lightning strikes.
Enclosure and installation
The IP66-rated enclosure measures 230 × 350 × 95 mm. The charger operates at temperatures from -25 °C to 55 °C and at altitudes up to 2 000 m above sea level. Standby power consumption does not exceed 10 W.
A wall mount is included. An optional mounting post can also be used and is purchased separately. The charger requires an AC 230/400 V, three-phase, 50/60 Hz supply.
| Manufacturer | Besen |
|---|---|
| Model | BS40-22KW-DLB-APP |
| Power | 22 kW |
| Rated current | 32 A |
| Number of phases | 3 |
| Supply voltage | AC 230/400 V |
| Frequency | 50/60 Hz |
| Protection rating | IP66 |
| Operating temperature | From -25 °C to 55 °C |
| Standby power consumption | ≤10 W |
| Maximum operating altitude | 2 000 m above sea level |
| Dimensions | 230 × 350 × 95 mm |
| Control | Via mobile app |
| Load management | Dynamic Load Balancing (DLB) |
| Protection functions | Against undervoltage, current overload, short circuits, ground faults, overheating and the effects of lightning strikes |
| Wall mounting | Wall mount included |
| Mounting post | Optional accessory |
| EAN | 5905156108325 |
|---|
What power supply does the charger require?
It requires an AC 230/400 V three-phase supply at 50/60 Hz. The rated current is 32 A and charging power is up to 22 kW.
Is mounting hardware included?
A wall mount is included. A mounting post is an optional accessory purchased separately.
