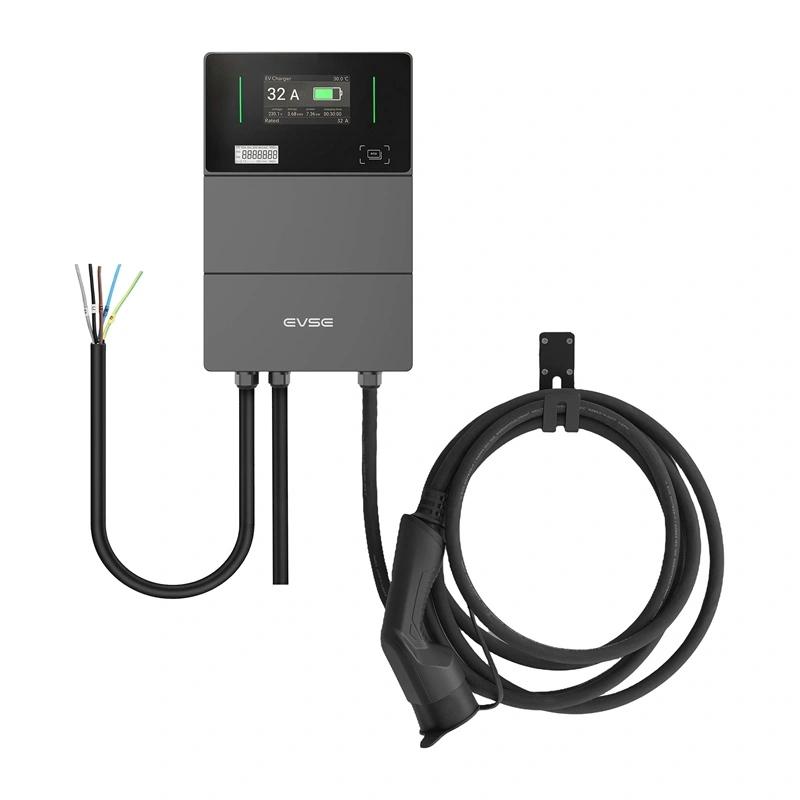

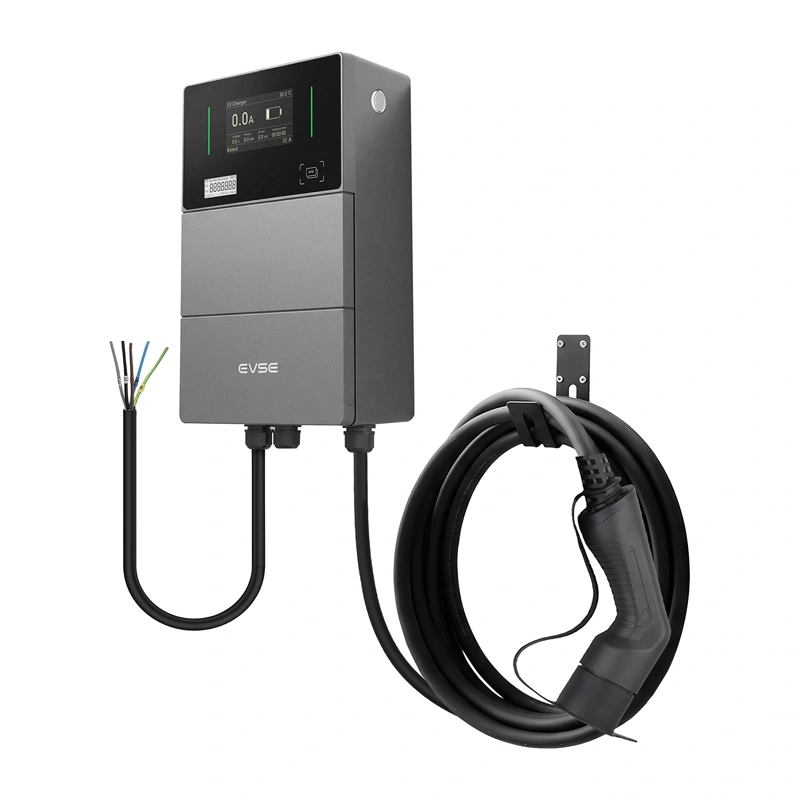

Besen BS40 22 kW EV charger with app and solar charging

484.30 €

Products ID: 197826

In supplier warehouse Available to order: 10+ pcs. Delivery Time 5–12 business days

Delivery options to:

The Besen BS40 charges electric vehicles at up to 22 kW using a 32 A three-phase supply. This version supports mobile app control, Dynamic Load Balancing (DLB) and solar charging.

Control and available power management

The mobile app provides access to charger controls. DLB allows management of the electrical system’s available power, while solar charging support adds another charging option.

Power supply: AC 230/400 V, 3 phases and a rated current of 32 A.
Protection: against undervoltage, current overload, short circuits, ground faults, overheating and the effects of lightning strikes.
Operating conditions: IP66-rated housing and an operating temperature range of -25 °C to 55 °C.
Mounting: a wall mount is included; an optional mounting post can also be used.

Size and installation

The housing measures 230 × 350 × 95 mm. The charger can operate at altitudes up to 2 000 m above sea level, and standby power consumption does not exceed 10 W. The mounting post is an optional accessory.

Manufacturer	Besen
Model	BS40-22KW-DLB+SOLAR-
Power	22 kW
Rated current	32 A
Number of phases	3
Supply voltage	AC 230/400 V
Frequency	50/60 Hz
Protection rating	IP66
Operating temperature	From -25 °C to 55 °C
Standby power consumption	≤10 W
Maximum operating altitude	2 000 m above sea level
Dimensions	230 × 350 × 95 mm
Control	Via mobile app
Dynamic Load Balancing	DLB
Solar charging	Supported
Protection functions	Undervoltage, current overload, short circuit, ground fault, overheating and lightning effects protection
Mounting options	Wall mount included; mounting post available as an optional accessory
