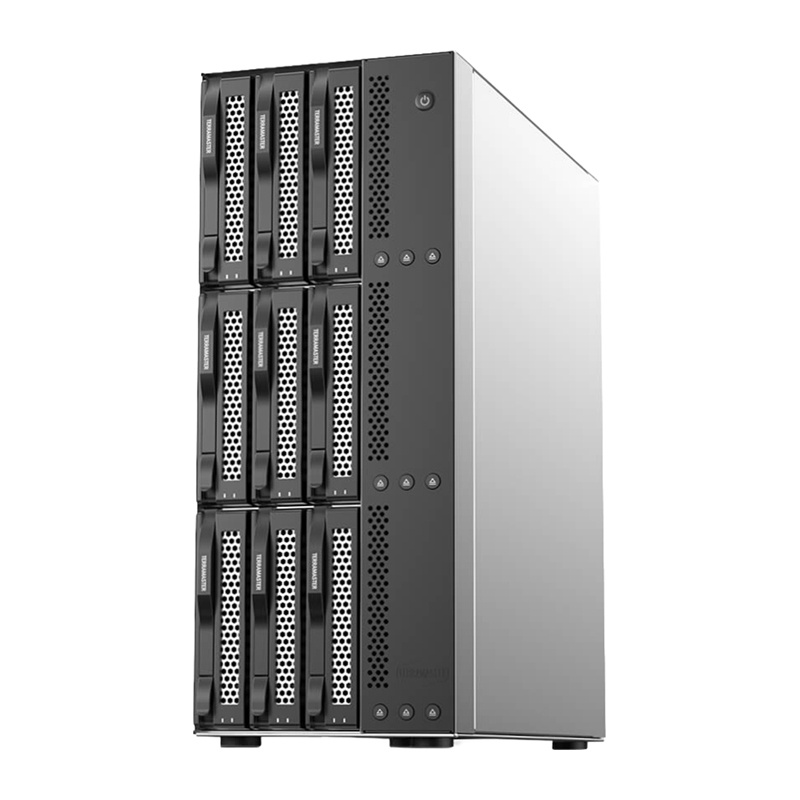

The TerraMaster D9-320 is a 9-bay direct-attached storage (DAS) enclosure designed for 3.5" and 2.5" SATA drives, supporting total capacities of up to 216 TB.

Key Features

Fast data transfer rates up to 10 Gb/s via USB 3.2 Gen 2 Type-C
Compatible with 3.5" SATA HDDs, 2.5" SATA HDDs, and 2.5" SATA SSDs
Individual power switches for each of the 9 drive bays

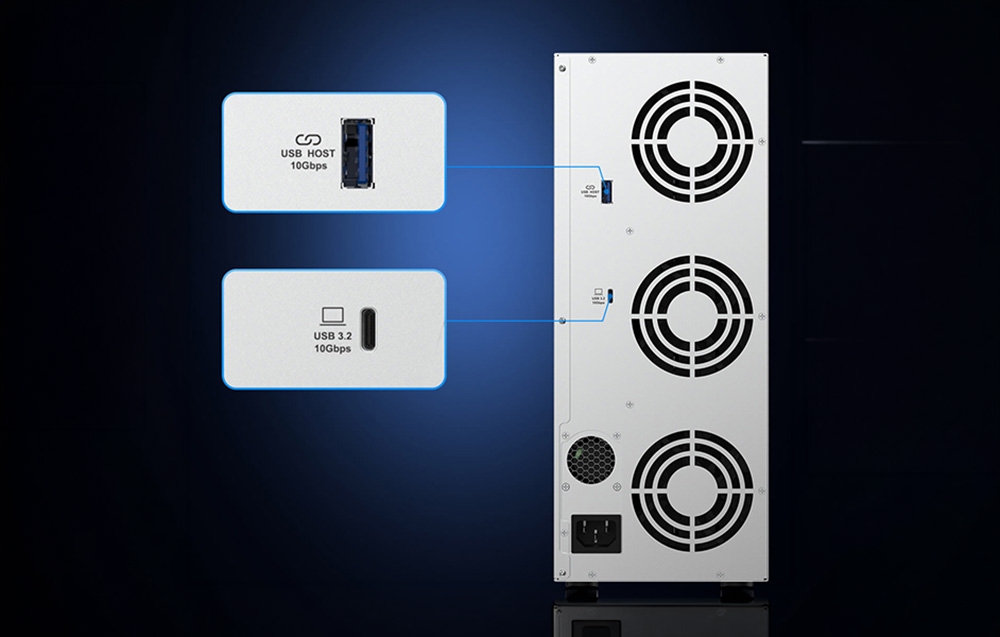

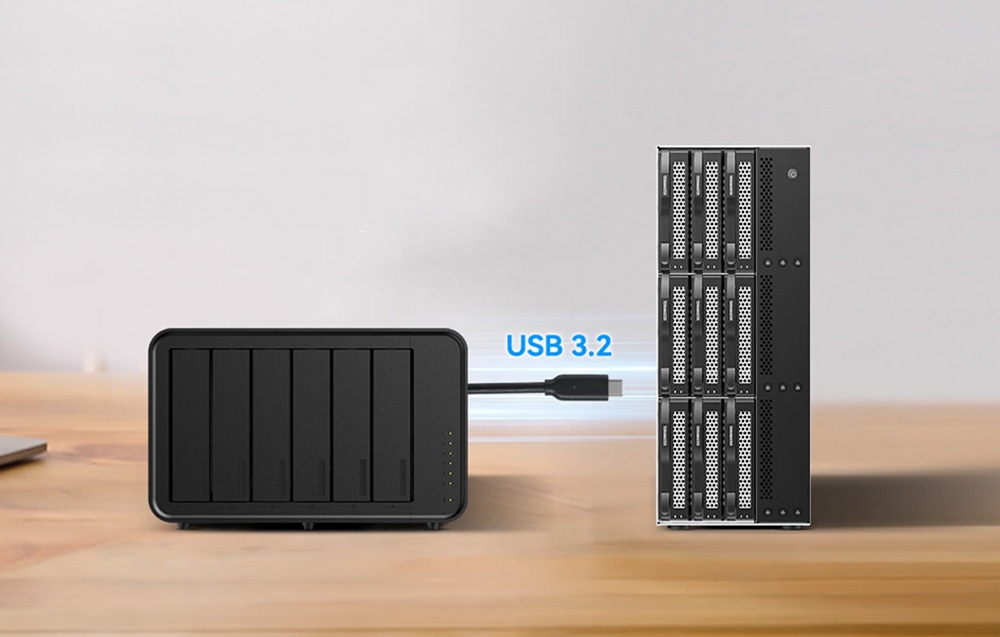

Daisy-chain support via a dedicated USB Host port for easy expansion
Quiet cooling system with 3 fans, 4 temperature sensors, and 22.5 dB(A) noise level
Broad compatibility with Windows, macOS, Linux, Unraid, TrueNAS, and Proxmox

Manufacturer	TerraMaster
Model	D9-320
Number of bays	9
Supported Drives	3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
Maximum Capacity	216 TB (9 × 24 TB)
Host Interface	USB 3.2 Gen 2 Type-C
Transfer Speed	up to 10 Gb/s
Maximum Read Speed	up to 1016 MB/s (4 × SSD)
Maximum Write Speed	up to 960 MB/s (4 × SSD)
Supported file systems	NTFS, APFS, Mac OS, FAT32, exFAT, EXT4
Individual power switches for drives	9
Noise level	22.5 dB(A)
Power supply	250 W
Input voltage	100–240 V AC
Frequency	50/60 Hz
Dimensions	295 × 135 × 334 mm
Net weight	6.5 kg

What is the maximum supported storage capacity?

The TerraMaster D9-320 supports up to 216 TB of total storage when populated with nine 24 TB drives.

What items are included in the package?

The package includes the TerraMaster D9-320 enclosure, power cord, USB-C to USB-C cable (0.8 m), USB-A to USB-C cable (0.8 m), power adapter, set of mounting screws, quick installation guide, and warranty information sheet.
