TerraMaster D8 Hybrid 8-Bay DAS Drive Enclosure

TerraMaster D8 Hybrid 8-Bay DAS Drive Enclosure — image 3

TerraMaster D8 Hybrid 8-Bay DAS Drive Enclosure — image 4

TerraMaster D8 Hybrid 8-Bay DAS Drive Enclosure — image 5

Price: 334.60 €

Products ID:	177478
Manufactured by:	Terramaster
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6939236145503

Delivery options to:

Choose country

The TerraMaster D8 Hybrid is an 8-bay direct-attached storage (DAS) enclosure that combines the capacity of 4 SATA drives with the high speed of 4 M.2 NVMe SSDs, delivering up to 120 TB total raw capacity over a fast USB 3.2 Gen 2 Type-C connection.

Key Features

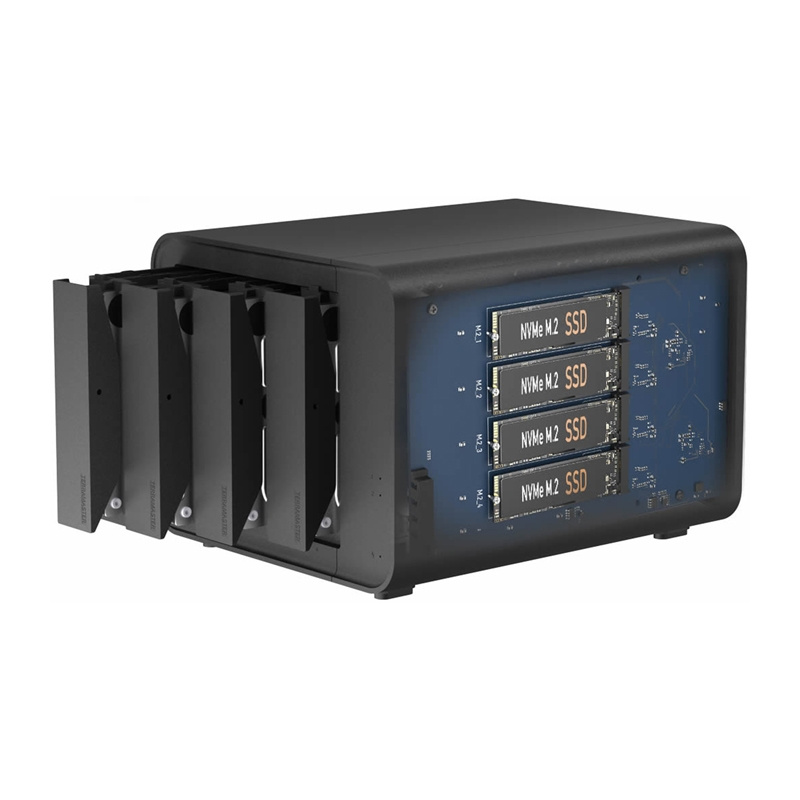

Supports 4 SATA drives (3.5"/2.5" HDD and 2.5" SSD) plus 4 M.2 2280 NVMe SSDs
USB 3.2 Gen 2 Type-C interface with up to 10 Gb/s data transfer bandwidth
Hardware RAID mode support for SINGLE DISK, JBOD, RAID 0, and RAID 1
Quiet 120 mm cooling fan operating at approximately 21 dB(A) with automatic speed control
Plug-and-play compatibility across Windows, macOS, and Linux systems

Manufacturer	TerraMaster
Model	D8 Hybrid
Number of bays	8 (4 × SATA + 4 × M.2 NVMe)
Supported SATA Drives	3.5" HDD, 2.5" HDD, 2.5" SSD
Supported M.2 Drives	M.2 2280 NVMe
Maximum raw capacity	up to 120 TB
Interface	USB 3.2 Gen 2 Type-C (10 Gb/s)
Supported file systems	NTFS, APFS, Mac OS, FAT32, EXT4, exFAT
RAID modes	SINGLE DISK, JBOD, RAID 0, RAID 1
Maximum SSD read speed	up to 1016 MB/s (4 × SSD)
Maximum SSD write speed	up to 960 MB/s (4 × SSD)
Maximum M.2 NVMe read speed	up to 980 MB/s
Maximum M.2 NVMe write speed	up to 880 MB/s
Noise level	21 dB(A)
Dimensions	222 × 179 × 154 mm
Net weight	1.9 kg
Power supply	90 W
Compatible operating systems	Windows, macOS, Linux

Which drive types can be installed in the TerraMaster D8 Hybrid?

The enclosure supports up to 4 SATA drives (3.5" HDD, 2.5" HDD, or 2.5" SSD) and up to 4 M.2 2280 NVMe SSDs.

What is included in the package?

The package includes the TerraMaster D8 Hybrid enclosure, an AC power adapter, a power cord, a USB-A to USB Type-C cable (10 Gb/s), a Quick Installation Guide, a set of mounting screws, and warranty information.

What hardware RAID configurations are supported?

The enclosure features hardware support for SINGLE DISK, JBOD, RAID 0, and RAID 1 configurations, selectable via an onboard mode switch.
