TerraMaster D5 Hybrid 5-Bay DAS Enclosure USB-C

TerraMaster D5 Hybrid 5-Bay DAS Enclosure USB-C — image 3

TerraMaster D5 Hybrid 5-Bay DAS Enclosure USB-C — image 4

TerraMaster D5 Hybrid 5-Bay DAS Enclosure USB-C — image 5

Price: 240.30 €

Products ID:	177477
Manufactured by:	Terramaster
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6939236144353

Delivery options to:

Choose country

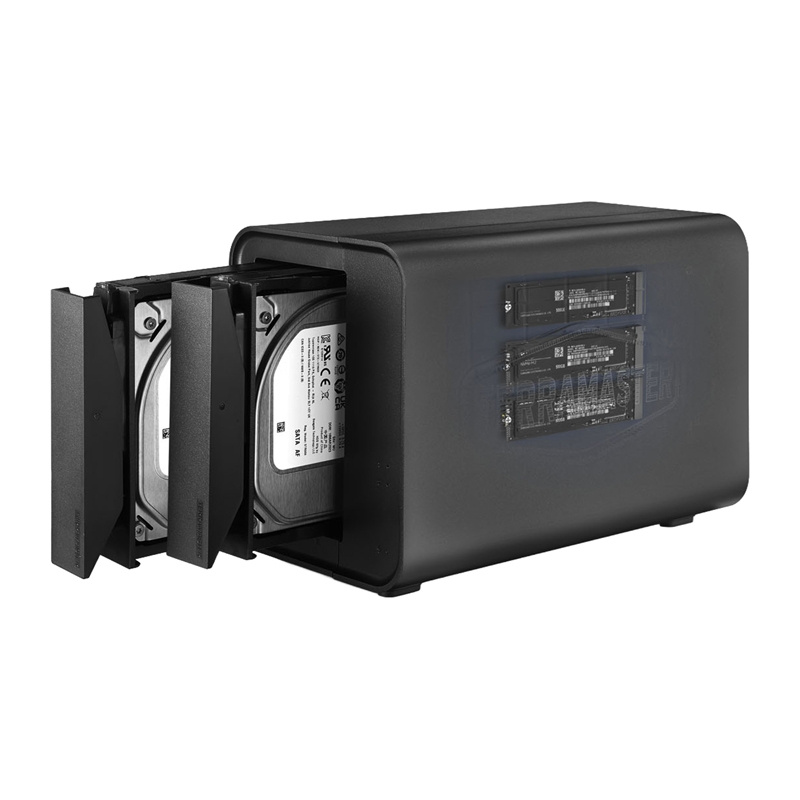

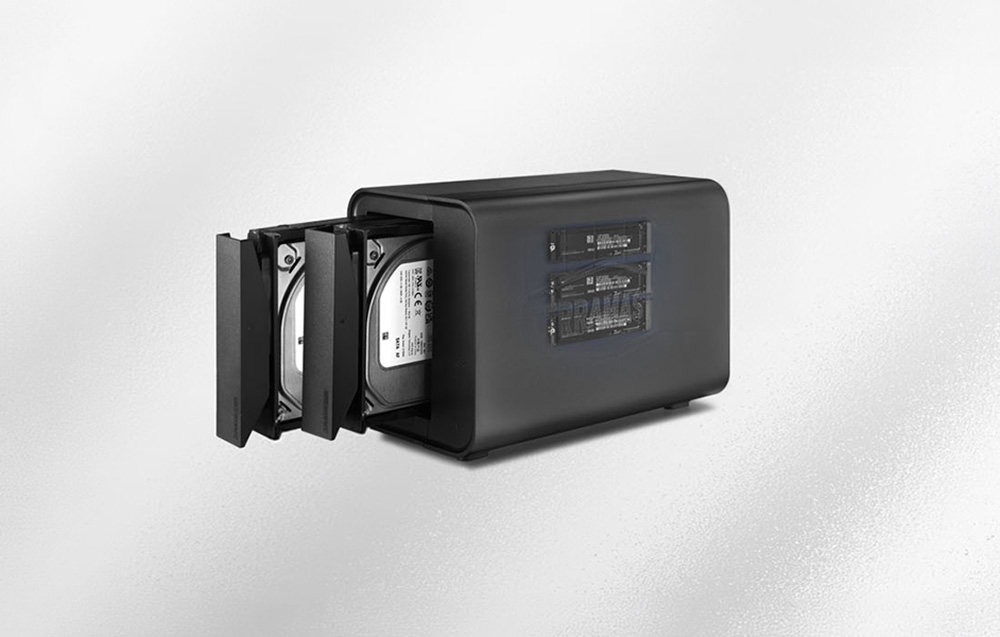

The TerraMaster D5 Hybrid is a 5-bay direct-attached storage (DAS) enclosure that supports 2 SATA drives and 3 M.2 NVMe SSDs with a total capacity of up to 68 TB.

Key Features

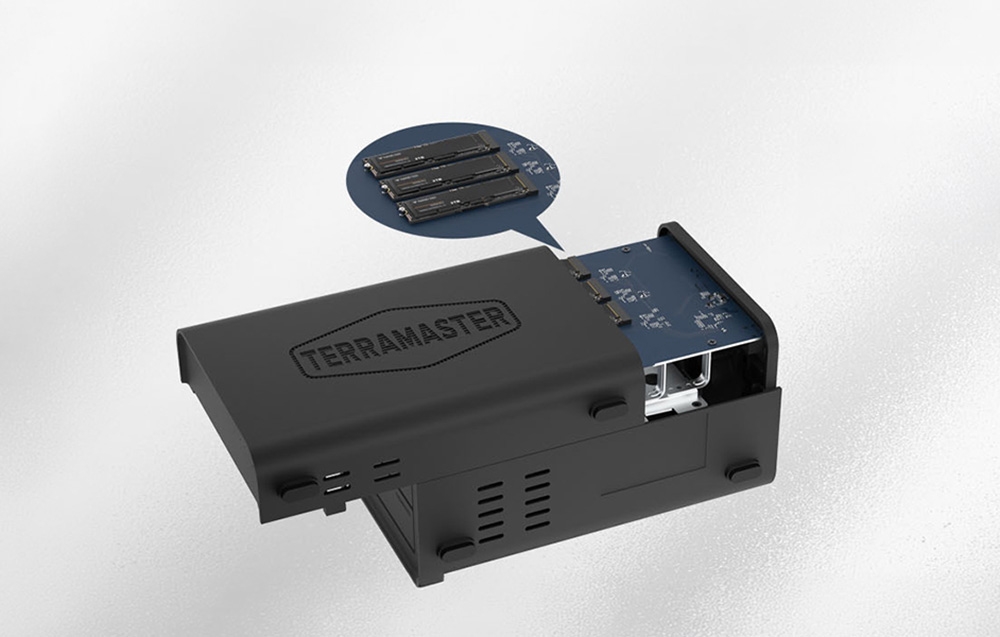

Hybrid configuration supporting 2 SATA (3.5"/2.5") drives and 3 M.2 2280 NVMe SSDs

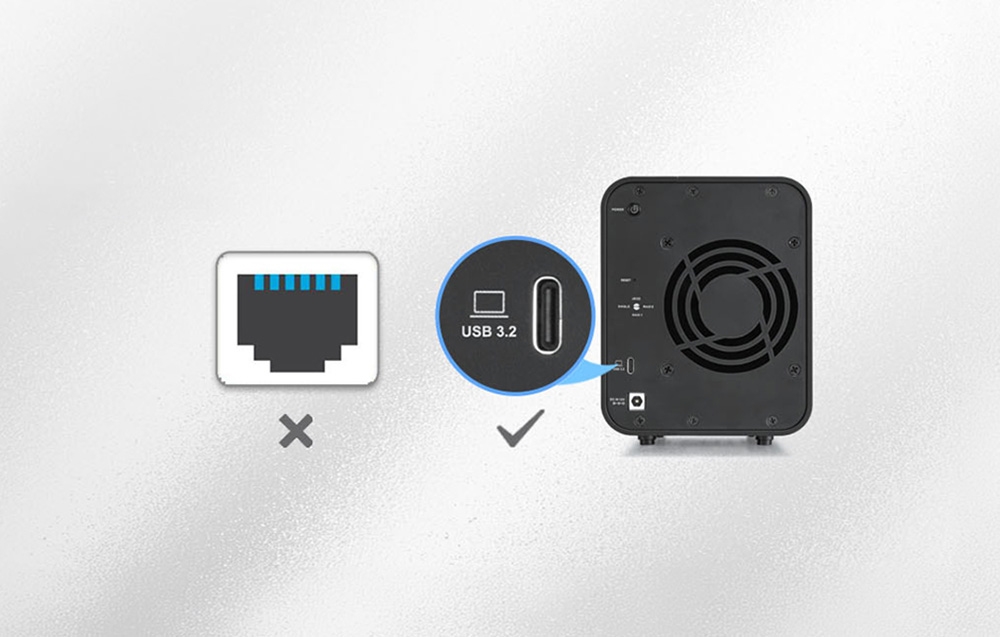

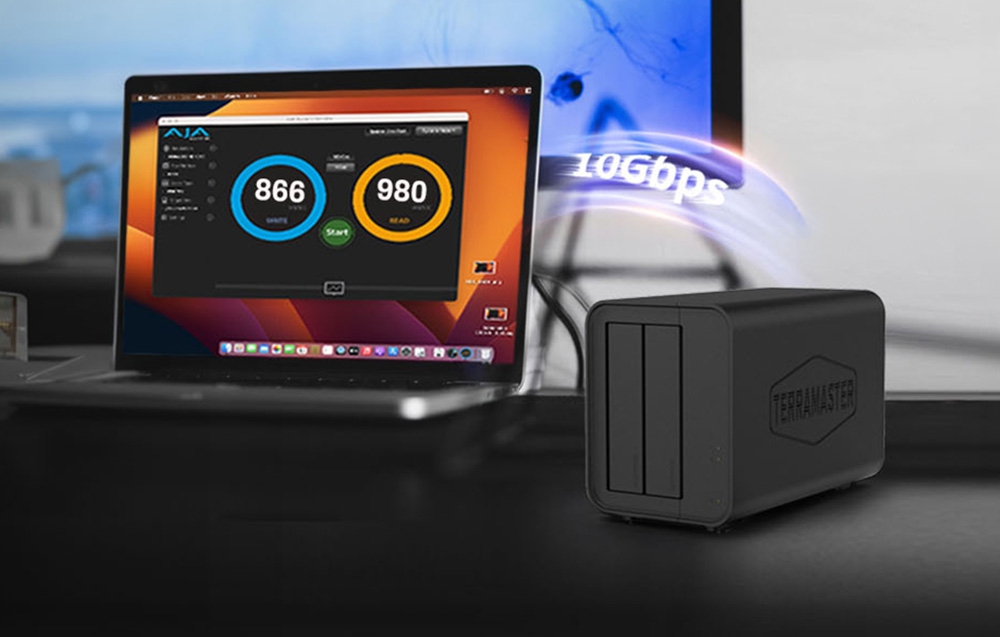

USB 3.2 Gen 2 Type-C interface providing bandwidth up to 10 Gb/s
Hardware RAID modes for SATA drives: RAID 0, RAID 1, JBOD, and Single Disk
Quiet 80 mm cooling fan with a noise level of approximately 19 dB(A)
Compatible with Windows, macOS, and Linux operating systems

Manufacturer	TerraMaster
Model	D5 Hybrid
Number of bays	5 (2 × SATA + 3 × M.2 NVMe)
Supported SATA drives	3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
Supported M.2 drives	M.2 2280 NVMe SSD (M-Key / B+M Key)
Maximum capacity for SATA drives	up to 44 TB (2 × 22 TB)
Maximum capacity for NVMe drives	up to 24 TB (3 × 8 TB)
Maximum total capacity	up to 68 TB
Host interface	USB 3.2 Gen 2 Type-C
Maximum interface bandwidth	10 Gb/s
Supported RAID modes for SATA drives	RAID 0, RAID 1, JBOD, Single Disk
Noise level	19 dB(A)
File systems	NTFS, APFS, Mac OS, FAT32, exFAT, EXT4
Power supply	DC IN 12 V
Power rating	40 W
Dimensions	222 × 119 × 154 mm
Net weight	1.3 kg

Which drive types does the TerraMaster D5 Hybrid support?

It accommodates up to two 3.5" or 2.5" SATA HDDs/SSDs and up to three M.2 2280 NVMe SSDs.

What items are included in the package?

The package includes the TerraMaster D5 Hybrid enclosure, AC power adapter, power cord, 1 m USB-C to USB-C cable (10 Gb/s), quick installation guide, mounting screws, and warranty document.
