Standalone Access Control Keypad with Mifare Card Reader
Price: 41.50 €
| Products ID: | 158684 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000993772 |
Delivery options to:
Choose country
Compact standalone access control keypad with an integrated Mifare 13.56 MHz proximity card reader. It provides a reliable entry solution supporting PIN codes, cards, or a combination of both.
Key Features:
- Supports up to 2,000 users.
- Constructed with a heavy-duty zinc alloy housing and wear-resistant metal buttons.
- Water and dust-resistant design suitable for both indoor and outdoor use.
- Operates in standalone, relay toggle, or Wiegand 26/34 reader modes.
- Backlit numeric keypad and dual-colour LED indicator for easy operation in low-light environments.
| Access methods | PIN code, card, PIN code + card |
|---|---|
| Number of users (cards) | 2,000 |
| Supported card frequency | Mifare 13.56 MHz |
| Operating voltage | 12-24 V DC |
| Relay output load | Up to 3 A |
| Standby current | Up to 30 mA |
| Card reading distance | 2-5 cm |
| Number of supported doors | 1 |
| Output protocol | Wiegand 26/34-bit |

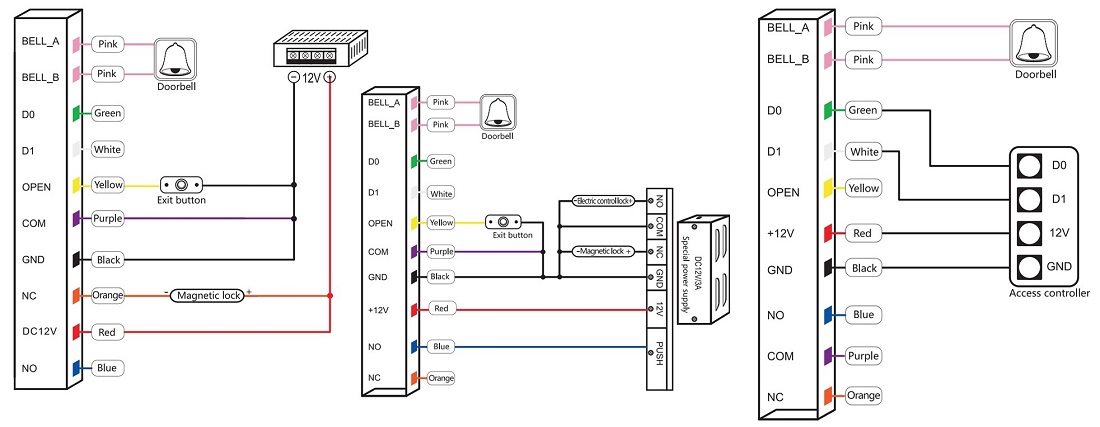

| Wire connections | DC 12-24 V, GND, Wiegand D0/D1, relay output, exit button, doorbell |
| Adjustable relay time | 0-99 seconds |
| Operating temperature | -40°C to +60°C |
| Housing material | Zinc alloy |
| Dimensions | 20 x 76 x 22 mm |
| Warranty | 24 months |
Is the keypad suitable for outdoor installation?
Yes, the zinc alloy housing is water and dust-resistant, with an operating temperature range of -40°C to +60°C.
