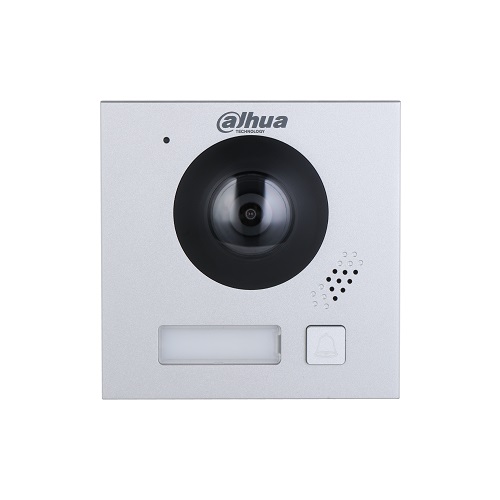

2-Wire 2 MP Modular Apartment Door Station VTO4202F-P1, Silver
Price: 177.90 €
| Products ID: | 171443 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6923172599322 |
Delivery options to:
Choose countryThe VTO4202F-P1 is a 2-wire modular apartment door station equipped with a 2 MP camera, a mechanical call button, and durable aluminum construction.
Key Features
- Camera & Optics: 1/2.9" 2 MP CMOS sensor with 168.6° horizontal field of view, 120 dB WDR, and H.265/H.264 video compression.
- Audio System: Two-way audio communication with a built-in speaker, 1 audio input channel, echo suppression, and digital noise reduction.
- Connectivity & Ports: Digital 2-wire communication, 10/100 Mbps RJ-45 Ethernet port, RS-485 interface, and lock control output.
- Rugged Housing: Aluminum casing rated IP65 for weather resistance and IK07 for impact resistance, operating from –30°C to +60°C.
- Storage Capacity: Supports Micro SD memory cards up to 256 GB for video messages.
| Model | VTO4202F-P1 |
|---|---|
| Camera Sensor | 1/2.9" 2 MP CMOS |
| Field of View | H: 168.6°; V: 87.1°; D: 176.7° |
| WDR | 120 dB |
| Video Compression | H.265; H.264 |
| Audio Mode | Two-way audio (built-in speaker, 1 input) |
| Number of Buttons | 1 mechanical button |
| Communication Mode | Digital 2-wire, RJ-45 (10/100 Mbps) |
| Storage Support | Micro SD card up to 256 GB |
| Casing Material | Aluminum |
| Protection Rating | IP65, IK07 |
| Operating Temperature | –30°C to +60°C |
| Dimensions | 100.0 mm x 100.0 mm x 49.4 mm |
| Color | Silver |
What is the protection rating of this door station?
The door station features IP65 weather resistance and IK07 vandal resistance, making it suitable for outdoor use.
Does this device support local storage?
Yes, it supports Micro SD cards with a capacity of up to 256 GB.
What are the camera's viewing angles?
The camera provides a horizontal field of view of 168.6°, vertical of 87.1°, and diagonal of 176.7°.
