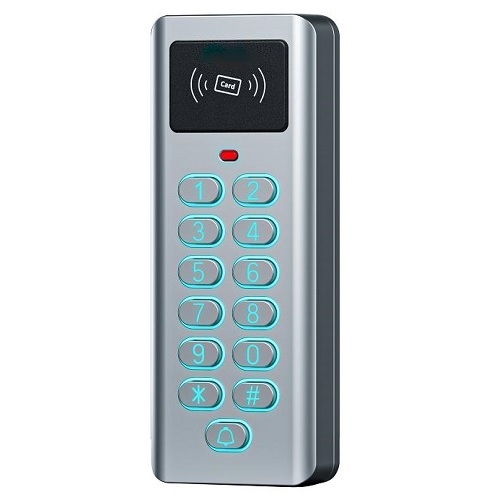

Standalone Access Control Keypad with Mifare Card Reader

41.50 € incl. VAT
In supplier warehouse · 10 pcs. Delivery Time: 5–10 business days

In your cart: 0

Delivery options to:

Choose country

Standalone access control keypad with an integrated Mifare 13.56Hz proximity card reader for secure entry management.

Key Features

  • Access methods: card, PIN code, or card and PIN code.
  • Durable metal housing and numeric keypad with blue backlighting.
  • Supports standalone operation and Wiegand 26/34-bit modes.
  • Rated IP68 for water and dust resistance, making it suitable for both indoor and outdoor use.

Access methodsPIN code, card, PIN code + card
User capacity2,000 cards
Card standardMifare 13.56Hz
Operating voltage12 V DC
Reading distance2-5 cm
Number of supported doors1
Output protocolWiegand 26/34-bit
Relay1 (NO, NC, COM)
Relay activation time0-99 seconds
Protection ratingIP68
Operating temperature-40°C to +60°C
Housing materialMetal
Dimensions126 x 49 x 20 mm
EAN9990000993758
Is this keypad suitable for outdoor use?

Yes, it features an IP68 protection rating for water and dust resistance and operates in temperatures ranging from -40°C to +60°C.

How many users can this device support?

The device can support up to 2,000 users (cards).
