Standalone Access Control Keypad with EM 125 kHz Card Reader

41.50 € incl. VAT
In supplier warehouse · 10 pcs. Delivery Time: 5–10 business days

In your cart: 0

Delivery options to:

Choose country

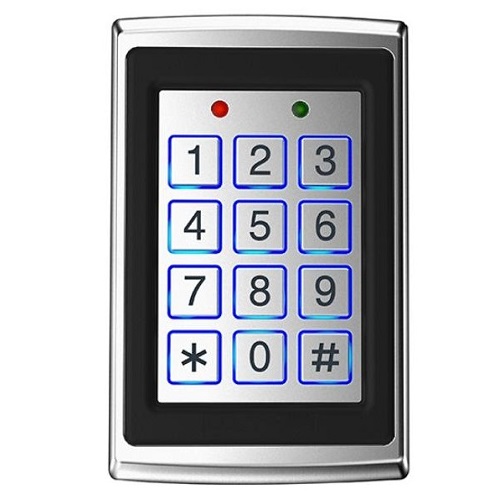

This compact standalone access control keypad features an integrated EM 125 kHz proximity card reader for secure entry management.

Key Features

  • Supports access via PIN code, card, or card + PIN code combination.
  • Stores up to 2,000 users.
  • Durable zinc alloy housing with water and dust resistance for indoor or outdoor use.
  • Backlit numeric keypad with metal buttons for reliable operation.
  • Operates in standalone, relay toggle, and Wiegand 26/34 reader modes.

Access methodsPIN code, card, PIN code + card
User capacity2,000 users
Card frequency125 kHz (EM)
Operating voltage12-24 V DC
Relay output loadUp to 3 A
Card reading distance2-5 cm
Output protocolWiegand 26/34-bit
Relay1 (NO, NC, COM contacts)
Adjustable relay time0-99 seconds
Operating temperature-40°C to +60°C
Housing materialZinc alloy
Dimensions20 x 76 x 22 mm
EAN9990000993765
Can this keypad be used outdoors?

Yes, the zinc alloy housing is water and dust resistant, making it suitable for both indoor and outdoor use.

How many users does the system support?

It supports up to 2,000 users via cards or PIN codes.
