Standalone Access Control Keypad with EM 125 kHz Card Reader
| Products ID: | 158681 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000993741 |
Delivery options to:
Choose country

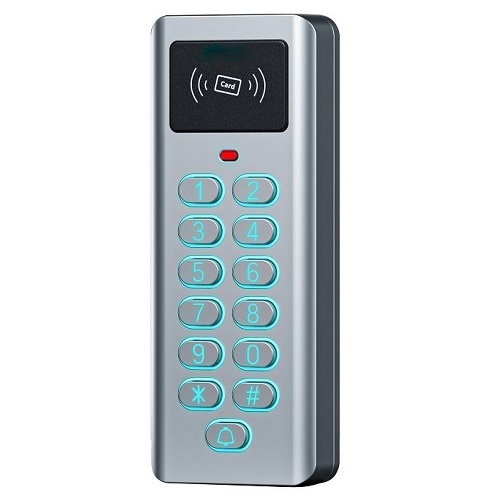

Compact standalone access control keypad with an integrated EM 125 kHz proximity card reader, designed for secure entry management.
Key features
- Supports three access methods: card, PIN code, or card + PIN code.
- Metal housing with IP68 water and dust resistance for indoor and outdoor use.
- Numeric keypad with blue backlighting and metal buttons.
- Supports up to 2,000 users and features Wiegand 26/34-bit output.
- Operating temperature range from -40°C to +60°C.
| Access methods | PIN code, card, PIN code + card |
|---|---|
| Number of users (cards) | 2,000 |
| Supported card frequency | 125 kHz |
| Operating voltage | 12 V DC |
| Relay output load | Up to 3 A |
| Card reading distance | 2-5 cm |
| Output protocol | Wiegand 26/34-bit |
| Relay | 1 (NO, NC, COM contacts) |
| Adjustable relay activation time | 0-99 seconds |
| Protection rating | IP68 |
| Operating temperature | -40°C to +60°C |
| Housing material | Metal |
| Dimensions | 126 x 49 x 20 mm |
Can this keypad be used outdoors?
Yes, it features an IP68-rated metal housing designed for harsh environments, providing water and dust resistance and operating in temperatures from -40°C to +60°C.
How many users does the keypad support?
It supports up to 2,000 users.
What type of cards does it read?
It reads EM proximity cards with a frequency of 125 kHz from a distance of 2-5 cm.
