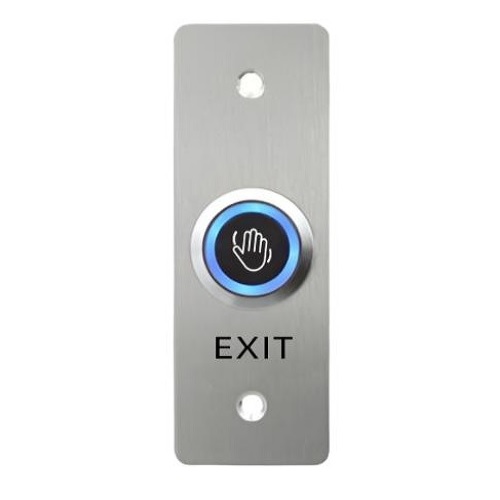

No Touch Exit Button, Flush Mounted, 12 V
Price: 13.00 €
| Products ID: | 172855 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000993895 |
Delivery options to:
Choose countryFlush-mounted stainless steel no-touch exit button designed for door, gate, exit, and automation control systems.
Key Features
- Sensor activation distance: 0.1-10 cm
- LED status indicator: blue in standby mode, green in active mode
- Output contacts: NO/NC/COM relay output
- Material: durable stainless steel
- Mechanical service life: approximately 500,000 activations
| Input | 12 V DC |
|---|---|
| Sensor activation distance | 0.1-10 cm |
| Output contacts | NO/NC/COM (relay output) |

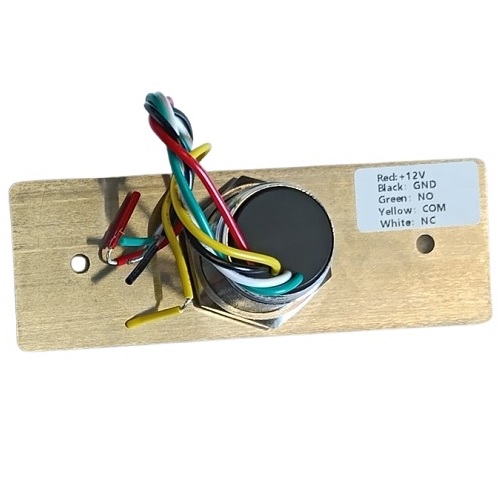

| Wiring | Red: +12 V, Black: GND, Green: NO, Yellow: COM, White: NC |
| Material | Stainless steel |
| Mounting type | Flush-mounted |
| Mechanical service life | Approximately 500,000 activations |
| Operating temperature | -10 °C to +55 °C |
| Relative humidity | 0%-95% RH |
| Dimensions | 40 x 115 x 20 mm |
| Weight | 79 g |
| Warranty | 24 months |
What is the sensor activation range?
The sensor triggers at a distance of 0.1 to 10 cm.
What do the LED status indicators signify?
The blue LED indicates standby mode, and the green LED indicates active mode.
