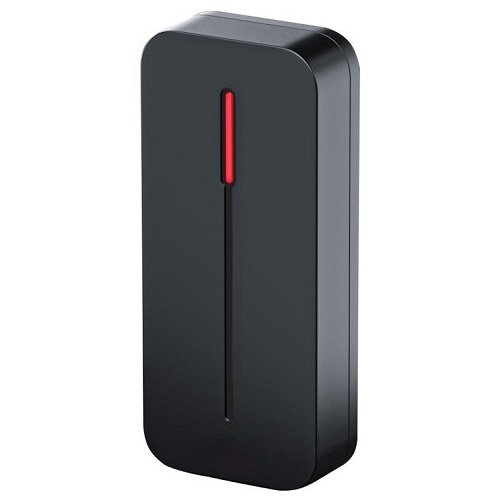

Mifare 13.56 MHz RFID Proximity Card Reader
| Products ID: | 158688 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000993819 |
Delivery options to:
Choose countryProximity card reader designed for access control systems, supporting Mifare 13.56 MHz cards. It operates as a Wiegand reader, transmitting scanned card IDs to an access control controller up to 100 meters away.
Key Features
- Supports Mifare 13.56 MHz frequency cards
- Wiegand 26/34-bit output protocol
- IP68 water and dust resistance for indoor and outdoor use
- Operating temperature range from -40°C to +60°C
- Equipped with a dual-colour LED indicator
| Supported card frequency | 13.56 MHz |
|---|---|
| Operating voltage | 9–12 V DC |
| Standby current | up to 30 mA |
| Card reading distance | 2–5 cm |
| Output protocol | Wiegand 26/34-bit |

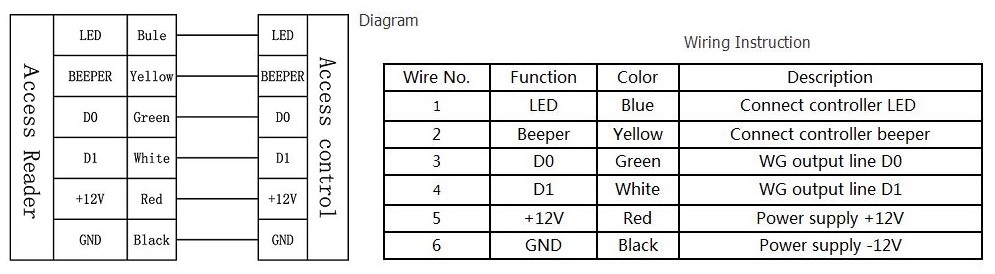

| Wire connections | +12 V, GND, Wiegand D0/D1, LED, and buzzer |
| Protection rating | IP68 |
| Operating temperature | -40°C to +60°C |
| Operating humidity | 10%–90% RH |
| Housing material | ABS plastic |
| Dimensions | 109 x 47 x 20 mm |
| Warranty | 24 months |
Can this reader be used outdoors?
Yes, it has an IP68 protection rating, making it water and dust resistant for both indoor and outdoor use.
What is the maximum communication distance to the controller?
The communication distance between the card reader and the access control controller is up to 100 meters.
