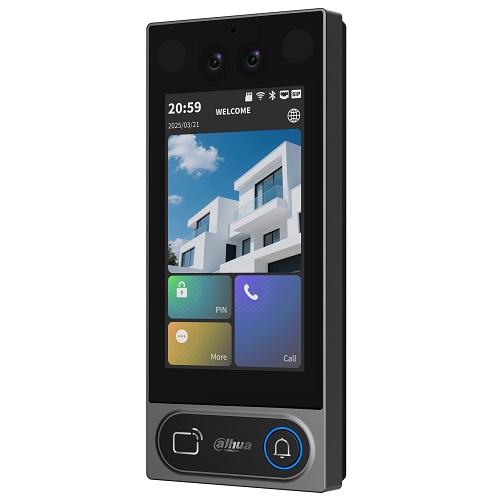

IP & Wi-Fi Villa Door Station DH-VTO6631QB-WP, Dark Silver

Price: 226.90 €

Products ID:	174124
Manufactured by:	Dahua Technology Co., Ltd
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6937552417175

Delivery options to:

Choose country

The DH-VTO6631QB-WP IP and Wi-Fi villa door station features a dual 2 MP camera and a 5-inch IPS touchscreen, enabling access control via face recognition, IC/ID card, password, or remote operation.

Key Features

Dual 2 MP FULL HD cameras with 119° horizontal viewing angle and 120 dB WDR
5-inch IPS capacitive touchscreen with 720 × 1280 resolution
System capacity for up to 20,000 users, 20,000 face templates, and 100,000 cards
Face recognition distance of 0.3–2.0 m with a 0.2 s recognition speed
Network connectivity via Ethernet RJ-45, 2.4 GHz Wi-Fi, and Bluetooth BT5.2
Two-way audio with built-in speaker and 3D-NR noise reduction
Tempered glass and PC+ABS construction with IP65 weather rating

Model	DH-VTO6631QB-WP
Operating system	Linux OS
Camera	Dual 2 MP Full HD (1/2.8" CMOS)
Camera field of view	H: 119°; V: 66°; D: 142°
Display	5" IPS capacitive touchscreen (720 × 1280)
Capacity	20,000 users / 20,000 faces / 100,000 cards
Unlock methods	Face recognition, IC/ID card, password, remote
Video compression	H.264, H.265
Network interface	Ethernet RJ-45 (10/100 Mbps)
Wireless connectivity	Wi-Fi (802.11b/g/n, 2.4 GHz), Bluetooth BT5.2
Internal storage	microSD slot up to 128 GB
Ingress protection	IP65
Housing material	Tempered glass, PC + ABS
Power supply	DC 12 V, 3 A / standard PoE (802.3af/at)
Power consumption	Standby 8 W, operating 10 W
Operating temperature	-30 °C to +60 °C
Dimensions	186.8 × 81.4 × 23.3 mm
Weight	0.49 kg
Color	Dark silver

What methods can be used to unlock the door?

The door can be unlocked using face recognition, IC/ID cards, passwords, or remotely via indoor monitors, the management center, a mobile phone, or a tablet.

What is the face recognition distance and speed?

Face recognition operates at a distance of 0.3–2.0 m (for persons 1.2–2.0 m in height) in 0.2 seconds with an accuracy of 99.9%.

What power supply options are available?

The unit supports DC 12 V (3 A) power supply or standard PoE (802.3af/at).
