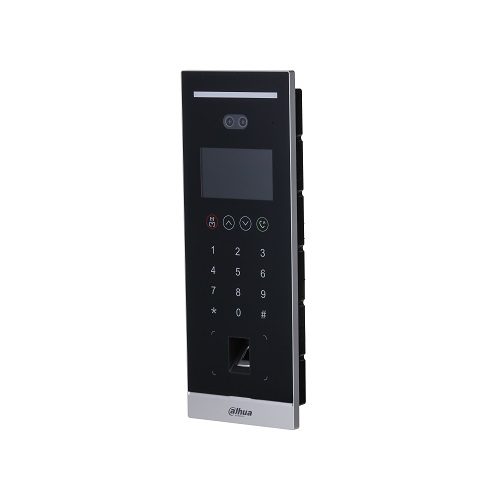

IP Apartment Door Station VTO6541H with Face Recognition
Price: 493.70 €
| Products ID: | 170859 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6939554988141 |
Delivery options to:
Choose countryThe VTO6541H is an IP apartment door station equipped with a 2MP Full HD camera, a 4.3-inch IPS screen, and multiple access verification methods including facial recognition, fingerprint scanning, IC cards, and passwords.
Key Features
- 2MP Full HD CMOS camera with 4.0mm lens and 120dB WDR
- 4.3-inch IPS display with 800x480 resolution and touch buttons
- Supports up to 10,000 face profiles, 10,000 fingerprints, and 10,000 IC cards
- Face recognition with 99.5% accuracy and 0.2s recognition time
- Two-way audio communication with integrated microphone and speaker
- SIP protocol support and P2P connectivity
- PC+ABS housing with IP65 ingress protection
| Model | VTO6541H |
|---|---|
| Camera Resolution | 2MP CMOS Full HD |
| Focal Length | 4.0 mm (F1.6 aperture) |
| Camera Field of View | 87.42° (H), 46.48° (V), 104.13° (D) |
| Display | 4.3'' IPS (800x480) |
| Operating System | LINUX OS |
| Video Compression | H.264 |
| Wide Dynamic Range (WDR) | 120 dB |
| User Capacity | Up to 20,000 users |
| Recognition Capacity | 10,000 faces, 10,000 fingerprints, 10,000 cards |
| Face Recognition Speed & Accuracy | 0.2 s, 99.5% |
| Face Scanning Distance | 0.3–2.0 m |
| Network Interface | RJ-45 10/100 Mb/s |
| Network Protocols | SIP, P2P, IPv4, FTP, UPnP, DNS, DDNS, RTSP, RTP, TCP, UDP |
| Interface Connections | 1x RS-485, 1x Wiegand in/out, 2x alarm inputs / 2x outputs, 1x exit button, 1x door sensor |
| Protection Rating | IP65 |
| Housing Material | PC+ABS |
| Power Supply | DC 12V 2A |
| Power Consumption | Up to 5W in standby, up to 18W working |
| Operating Temperature | -30°C to +60°C |
| Mounting Type | Surface mount and flush mount |
| Dimensions | 388.5 mm × 145.5 mm × 43.5 mm |
| Weight | 1.0 kg |
What unlock methods are supported by the VTO6541H?
It supports unlocking via face recognition, IC cards, fingerprints, passwords, and remote unlock.
What is the face recognition distance and speed?
The face scanning distance is 0.3 to 2.0 meters, with a recognition time of 0.2 seconds and 99.5% accuracy.
Is this door station suitable for outdoor installation?
Yes, it features an IP65 rated housing and an operating temperature range of -30°C to +60°C.
