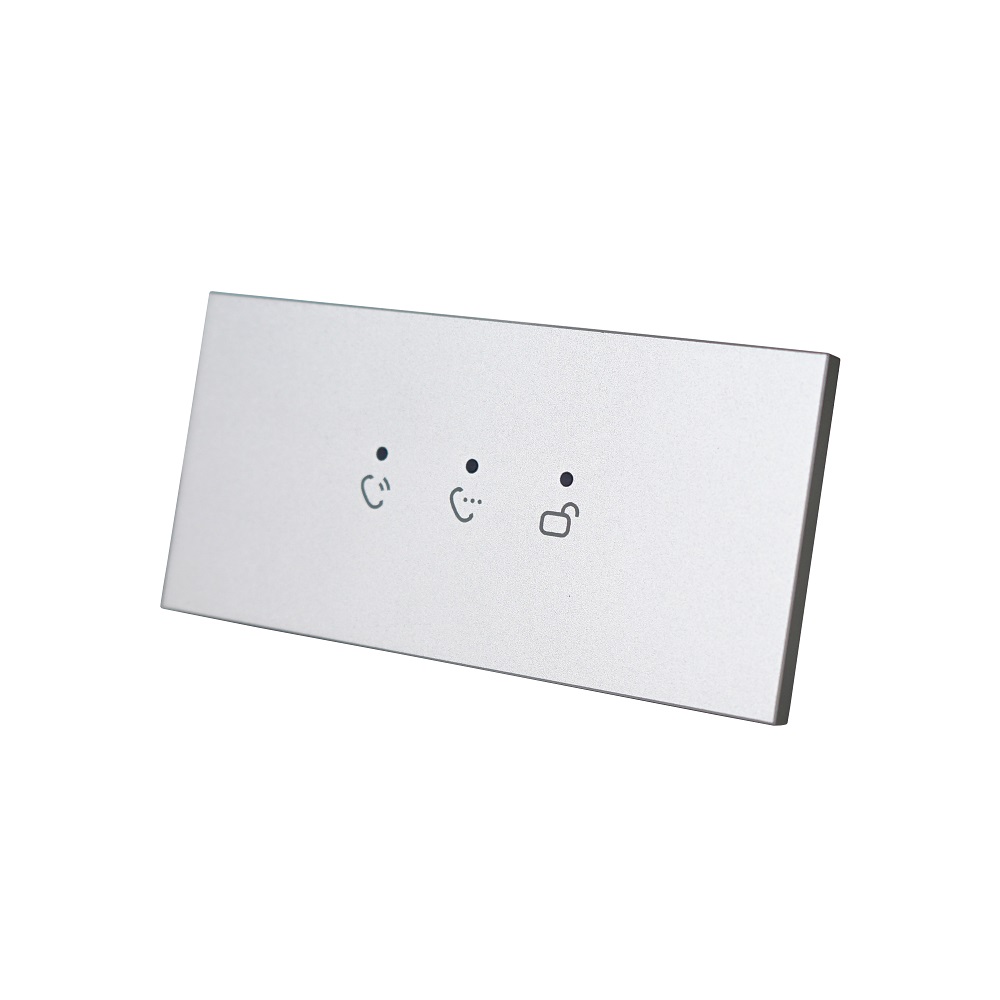

Indicator Module VTO4202F-ML, Silver
33.30 €
Dahua Technology Co., Ltd
Products ID: 170102
In supplier warehouse
Available to order: 3 pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryThe VTO4202F-ML indicator module features three indicator lights and is designed for modular intercom installations.
Key Features
- 3 indicator lights
- 5V DC power supply mode and 5V DC power output port for other modules
- IP65 ingress protection and IK07 impact resistance
- Dimensions: 100mm × 49.90mm × 28.50mm
- Power consumption: 1W
- Operating temperature: -20°C to +60°C
| Model | VTO4202F-ML |
|---|---|
| Indicator lights | 3 |
| Power supply mode | 5V DC |
| Power output port | 5V DC |
| Protection grade | IP65 |
| Impact resistance | IK07 |
| Color | Silver |
| Dimensions | 100mm × 49.90mm × 28.50mm |
| Power consumption | 1W |
| Operating temperature | -20°C to +60°C (-4°F to +140°F) |
| Operating humidity | 10%RH–90%RH |
| EAN | 6939554918469 |
|---|
How many indicator lights does this module have?
The module is equipped with 3 indicator lights.
What is the power supply requirement for this module?
It operates on a 5V DC power supply and provides a 5V DC power output port to power other modules.
