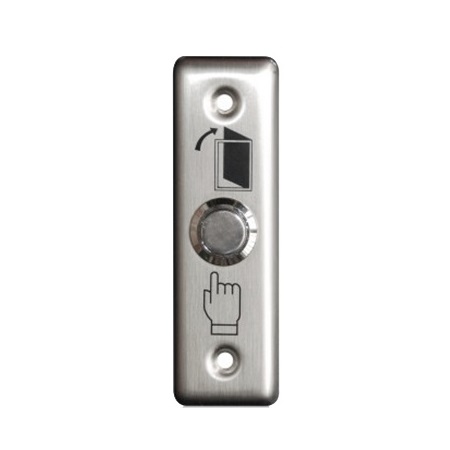

Exit Button, Stainless Steel, Flush Mounted
Price: 15.10 €
| Products ID: | 170210 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000990351 |
Delivery options to:
Choose countryFlush mounted exit button made of stainless steel.
Key Features
- Input: 3A@36V DC
- Output contact: NO/NC/COM
- Material: stainless steel
- Mechanical life: 500,000 tested cycles
- Operating temperature: -10°C~+55°C
- Dimensions: 28 x 86 x 20 mm
| Material | Stainless steel |
|---|---|
| Mounting type | Flush mounted |
| Input | 3A@36V DC |
| Output contact | NO/NC/COM |
| Mechanical life | 500000 tested |
| Operating temperature | -10°C~+55°C |
| Operating humidity | 0%~95%RH |
| Dimensions | 28 x 86 x 20 mm |
| Weight | 100g |
| Warranty | 24 months |
What are the dimensions and weight of this exit button?
The dimensions are 28 x 86 x 20 mm and the weight is 100g.
What output contacts does the button have?
The exit button features NO/NC/COM output contacts.
What is the tested mechanical life of the button?
The button has a tested mechanical life of 500,000 cycles.
