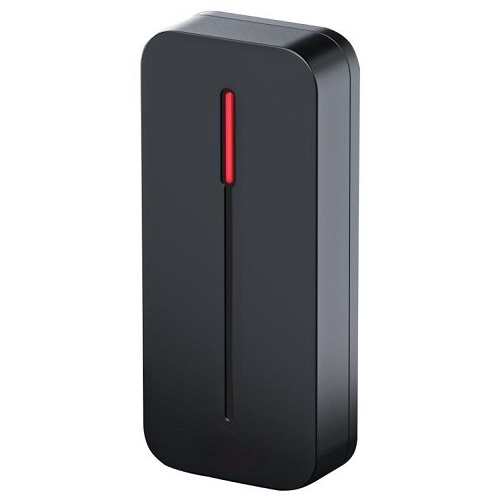

EM 125kHz RFID Card Reader with Wiegand 26/34
Price: 22.60 €
| Products ID: | 158687 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000993802 |
Delivery options to:
Choose countryThis EM 125kHz RFID card reader is designed for access control systems, transmitting scanned card IDs to a controller via the Wiegand protocol.
Key Features
- Supports EM 125kHz proximity cards.
- Compatible with Wiegand 26/34-bit protocols.
- Rated IP68 for water and dust resistance, suitable for outdoor use.
- Features a dual-colour LED indicator and buzzer.
- Operating temperature range from -40°C to +60°C.
| Supported frequency | EM 125kHz |
|---|---|
| Output protocol | Wiegand 26/34-bit |
| Reading distance | 2–5 cm |
| Operating voltage | 9–12 V DC |
| Standby current | Up to 30 mA |
| Protection rating | IP68 |
| Housing material | ABS plastic |
| Dimensions | 109 x 47 x 20 mm |
Can this reader be used outdoors?
Yes, it has an IP68 protection rating, making it water and dust resistant for both indoor and outdoor use.
What is the maximum communication distance to the controller?
The reader supports a communication distance of up to 100 meters to the access control controller.
