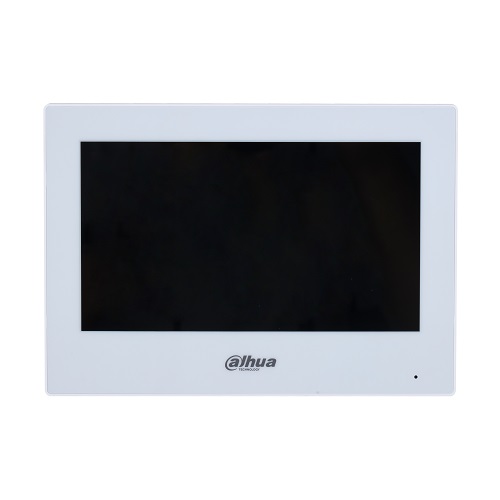

Dahua VTH2123GW-W-S2 7" 2-Wire Wi-Fi Video Intercom Indoor Monitor, White
Price: 138.80 €
| Products ID: | 178558 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6939554946127 |
Delivery options to:
Choose countryThe Dahua VTH2123GW-W-S2 is a 7-inch 2-wire hybrid indoor video intercom monitor featuring a color touchscreen and Wi-Fi connectivity for door communication and access control.
Key Features
- 7-inch color TFT capacitive touchscreen with 1024 × 600 resolution
- 2-wire hybrid connection and 2.4 GHz Wi-Fi connectivity
- Remote control, live video, and door unlocking via the DMSS mobile app
- Built-in speaker with two-way audio and noise reduction
- MicroSD card slot supporting up to 64 GB for snapshots and video recording
- 6 alarm inputs and 1 alarm output for peripheral integration
| Model | VTH2123GW-W-S2 |
|---|---|
| System Type | 2-Wire hybrid video intercom system |
| Color | White |
| Network Protocols | UDP, TCP, IPv4, DNS |
| Operating System | Linux OS |
| Display | 7" color TFT capacitive touchscreen |
| Display Resolution | 1024 × 600 |
| Compatibility | VTO door stations, HDCVI or IP cameras |
| Remote Control | DMSS application |
| Audio Features | Two-way audio, echo suppression, digital noise reduction |
| Audio Compression | PCM, G.711a, G.711u |
| Wireless Connectivity | Wi-Fi 2.4 GHz (IEEE 802.11b/g/n) |
| Storage | MicroSD slot up to 64 GB |
| Alarm Inputs / Outputs | 6 inputs / 1 output |
| Interface | RS-485 |
| System Language | English |
| Power Supply | 48 V DC via 2-wire controller |
| Power Output | 12 V / 200 mA |
| Power Consumption | Standby: 4 W; Operating: 10 W |
| Operating Temperature | -10 °C to +55 °C |
| Operating Humidity | 10–90% RH |
| Installation | Surface mount |
| Operating Environment | Indoor use |
| Casing Material | PC, ABS |
| Dimensions | 189.6 mm × 134.6 mm × 24 mm |
| Weight | 0.34 kg |
How is this indoor monitor powered?
The monitor is powered by 48 V DC through a 2-wire controller, which is sold separately.
Can I unlock the door using a smartphone app?
Yes, using the DMSS mobile application, you can answer calls, view live video, and unlock connected doors or gates.
Is a memory card included?
No, a microSD card (up to 64 GB) is sold separately.
