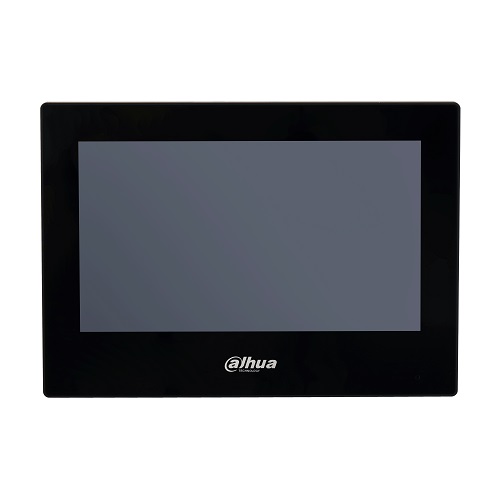

Dahua VTH2123GB-W-S2 7" 2-Wire Wi-Fi Video Intercom Indoor Monitor, Black
Price: 138.80 €
| Products ID: | 178557 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6939554945779 |
Delivery options to:
Choose countryThe Dahua VTH2123GB-W-S2 is a 2-wire hybrid indoor video intercom monitor featuring a 7-inch color touchscreen and integrated Wi-Fi for residential systems.
Key Features
- 7" Touchscreen: Color TFT display with 1024 × 600 resolution and adjustable brightness.

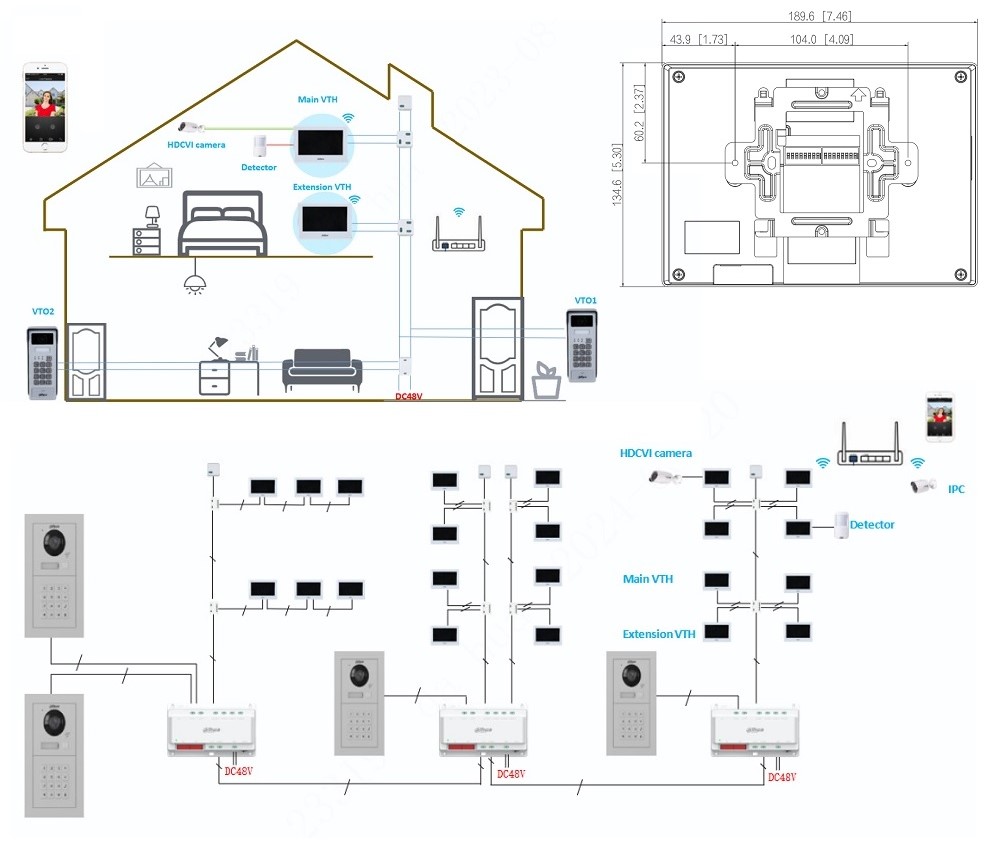

- 2-Wire Hybrid Connectivity: Transmits power and data over 2 wires, enabling reuse of existing cabling.
- Wi-Fi Network: 2.4 GHz Wi-Fi support (IEEE 802.11b/g/n) alongside standard network protocols.
- DMSS App Integration: Remote call answering, live view, alarm notifications, and door unlocking.
- Two-Way Audio: Built-in speaker with echo suppression and digital noise reduction.
- System Expandability: 6 alarm inputs, 1 alarm output, RS-485 port, and microSD card slot up to 64 GB.
| Display | 7" color TFT capacitive touchscreen |
|---|---|
| Screen Resolution | 1024 × 600 |
| Operating System | Linux OS |
| Network Protocols | UDP, TCP, IPv4, DNS |
| Wireless Connectivity | Wi-Fi 2.4 GHz (IEEE 802.11b/g/n) |
| Audio Compression | PCM, G.711a, G.711u |
| Storage | microSD card up to 64 GB |
| Alarm Inputs / Outputs | 6 / 1 |
| Interface | RS-485 |
| Power Supply | 48 V DC (via 2-wire controller) |
| Power Output | 12 V / 200 mA |
| Power Consumption | Standby: 4 W; Operating: 10 W |
| Operating Environment | -10 °C to +55 °C, 10–90% RH |
| Mounting Type | Surface mount |
| Casing Material | PC, ABS |
| Color | Black |
| Dimensions | 189.6 mm × 134.6 mm × 24 mm |
| Weight | 0.34 kg |
What capacity of memory card does this monitor support?
The monitor supports a microSD card of up to 64 GB (sold separately) for software, video recording, and snapshot capture.
Can the intercom be controlled from a smartphone?
Yes, using the DMSS mobile app, you can answer calls, view live video, receive alarm alerts, and unlock doors or gates remotely.
