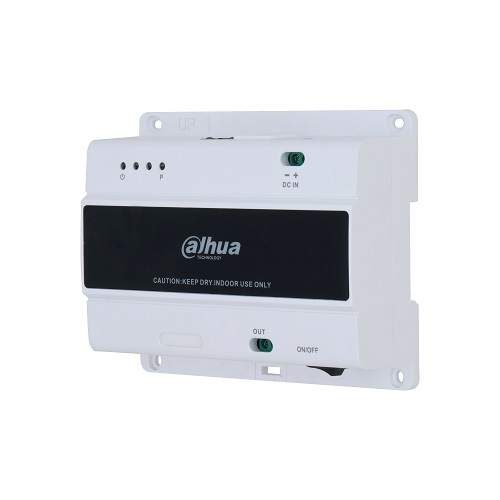

2-Wire Network Controller VTNS1001B-2, White
SOLDOUT!
Price: 86.70 €
| Products ID: | 170877 |
|---|---|
| Manufactured by: | Dahua Technology Co., Ltd |
| Availablity: | SOLDOUT! |
| EAN: | 6923172522115 |
Delivery options to:
Choose country
The VTNS1001B-2 2-wire network controller is designed for 2-wire intercom systems, delivering both power supply and network connectivity over the same two wires.
Key Features
- Supports connection of up to 4 indoor monitors and 2 door stations
- Equipped with 1x RJ45 input and 1x 2-wire port
- Power supply: DC 48V (1A–3A) with power consumption up to 15W
- 2 status indicator lights for operational monitoring
- Durable PC + ABS casing
- Supports guide rail mounting
- Operating temperature range from -10°C to +55°C
| Model | VTNS1001B-2 |
|---|---|
| Ports | 1x RJ45 input, 1x 2-wire port |
| Supported Devices | Up to 4 indoor monitors and 2 door stations |
| Power Supply | DC 48V, 1A-3A |
| Power Consumption | Up to 15W |
| Indicators | 2 status indicator lights |

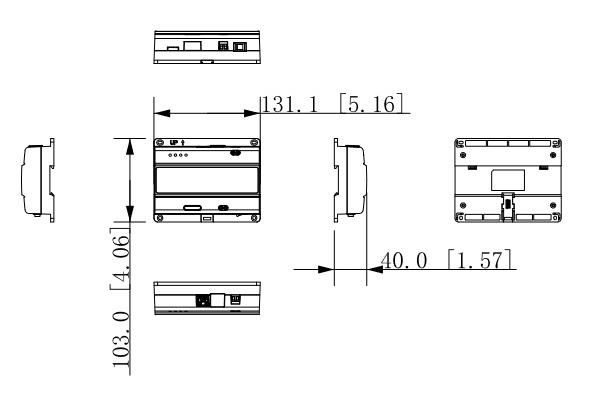

| Dimensions | 131.1x103x40mm |
| Weight | 250g |
| Casing Material | PC + ABS |
| Colour | White |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10%-95%RH (non-condensing) |
| Mounting | Guide rail mount |
| Certifications | CE, FCC, UL |
| Warranty | 36 months |
How many devices can be connected to the VTNS1001B-2 controller?
It supports the connection of up to 4 indoor monitors and 2 door stations.
What ports are available on this controller?
The device features 1 RJ45 input and 1 2-wire connection port.
What are the power requirements for this unit?
It requires a DC 48V (1A-3A) power supply and consumes up to 15W.
