2-Channel Relay Switching Board 12V DC
| Products ID: | 158690 |
|---|---|
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000993857 |
Delivery options to:

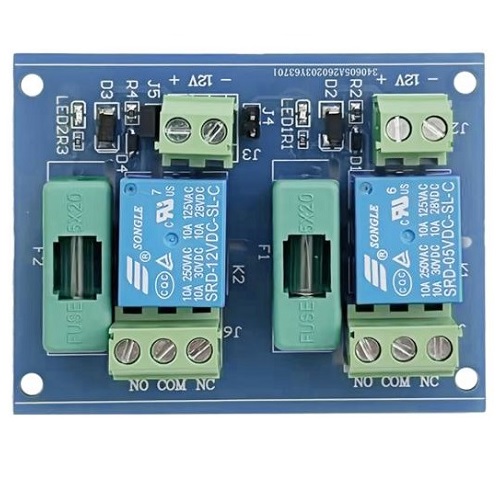

Choose countryThis dual-channel relay switching board uses 12V DC control signals to manage higher-power electrical circuits. It is suitable for security systems, gate automation, lighting, and other control applications.
Key Features
- Two independently controlled relays with COM, NO, and NC contacts.
- Replaceable 5x20 mm fuses for overcurrent protection.
- LED indicators display the status of each relay.
- Screw terminals and four mounting holes for installation.
| Number of channels | 2 |
|---|---|
| Control voltage | 12V DC |
| Relay type | SRD-12VDC-SL-C |
| Contact configuration | 2x SPDT |
| Maximum resistive contact load | 10A / 250V AC or 10A / 30V DC (per contact) |
| Fuses | 2x replaceable, 5x20 mm |
| Operating temperature | -20°C to +70°C |
| Dimensions | 72 x 56 x 19 mm |
| Weight | 46 g |
| Warranty | 24 months |
What is the maximum contact load for each relay?
The maximum resistive contact load is 10A at 250V AC or 10A at 30V DC per contact.
Does the board have indicators?
Yes, each channel features an LED indicator showing the relay status.
