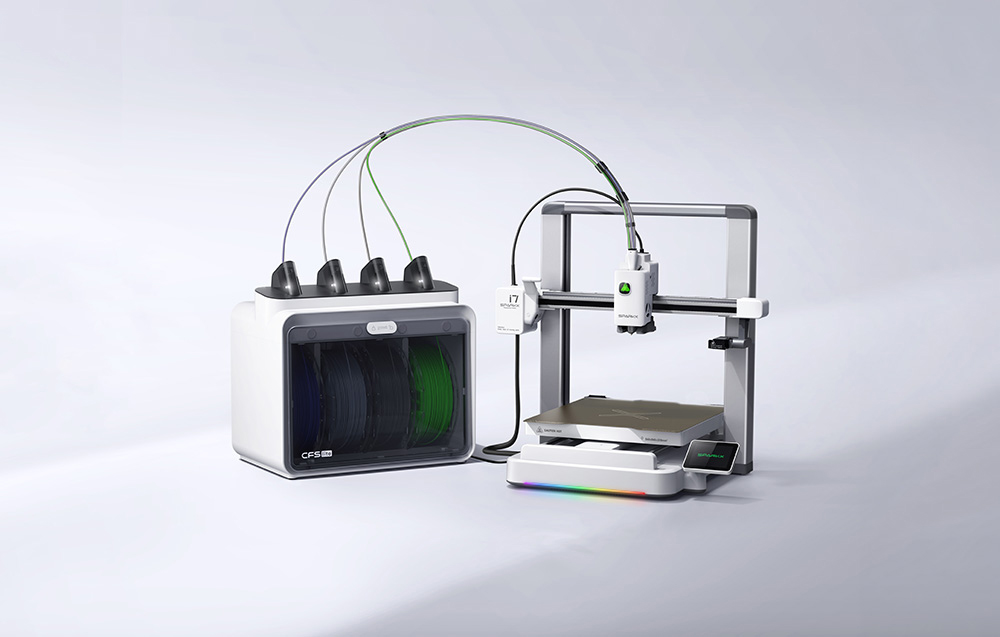

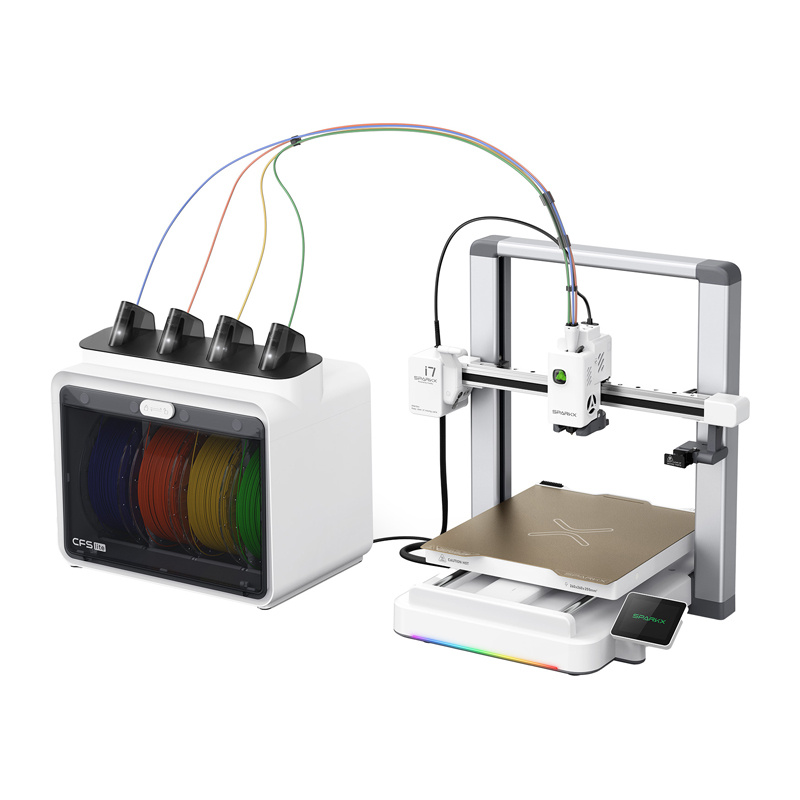

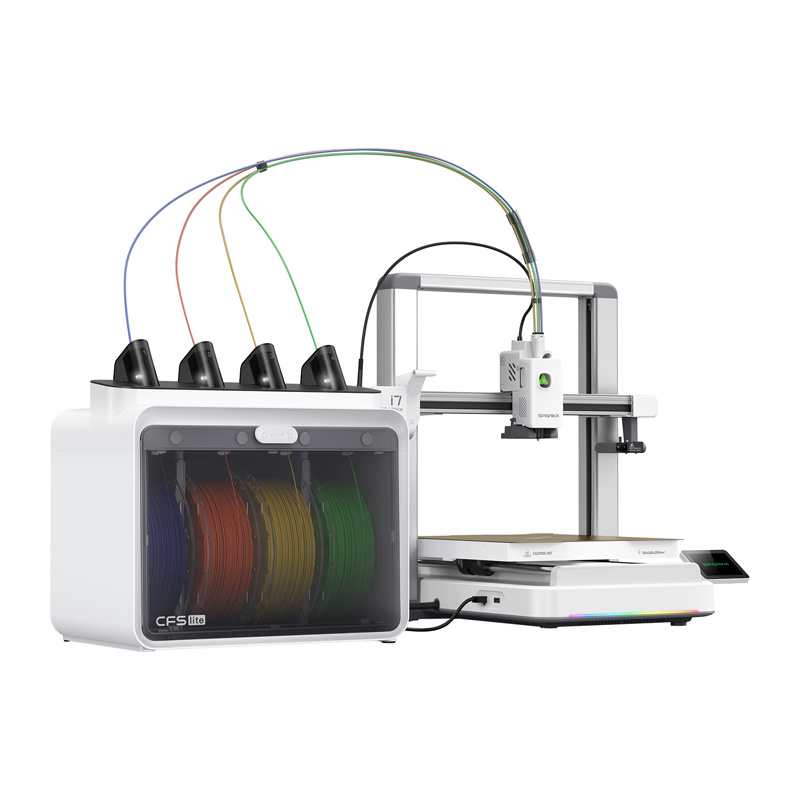

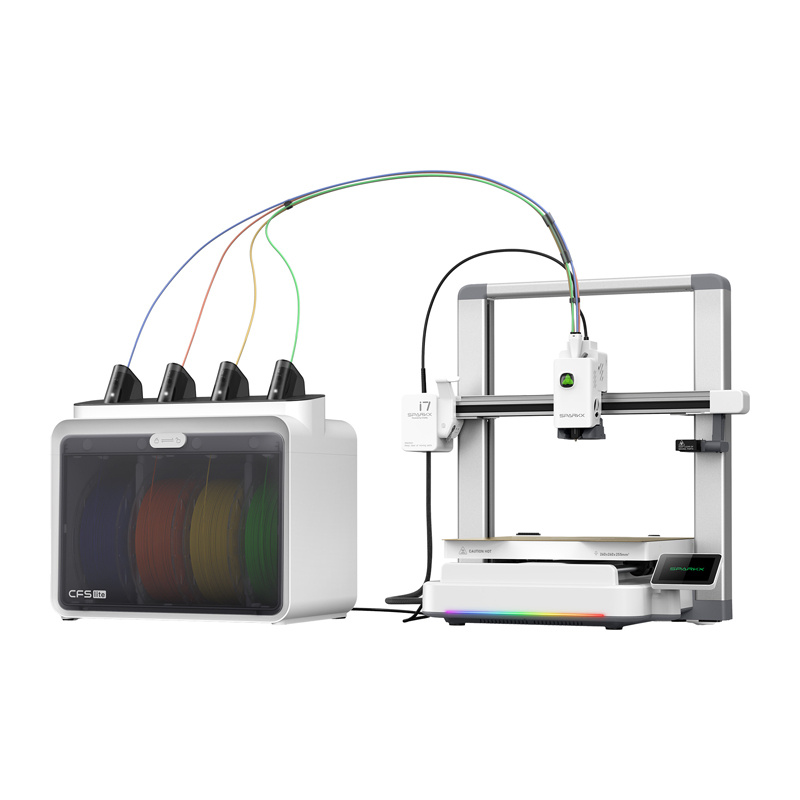

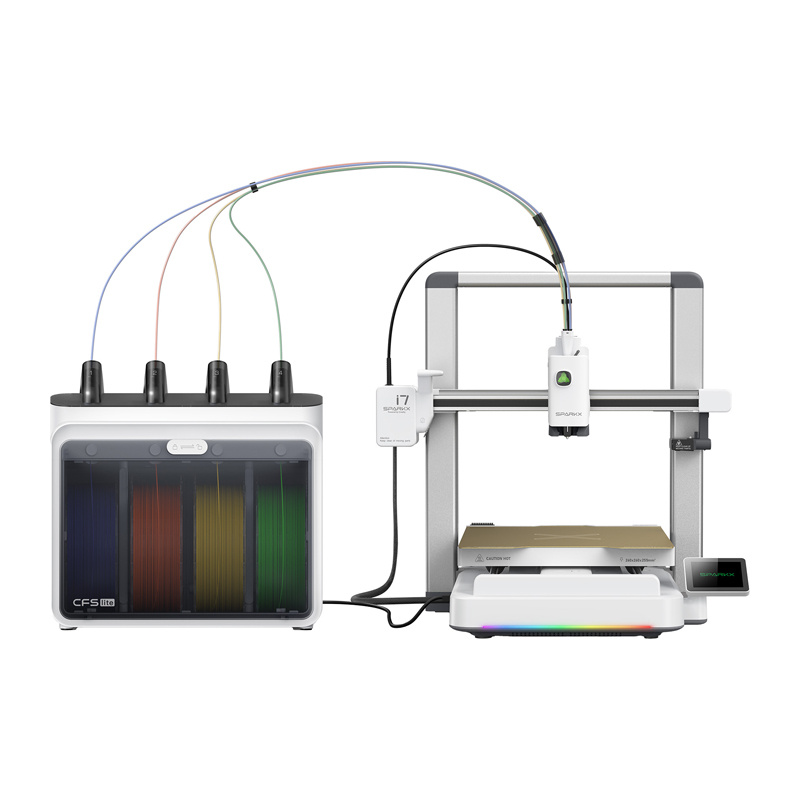

Creality SparkX i7 Combo 3D Printer with CFS Lite Module
| Products ID: | 186195 |
|---|---|
| Manufactured by: | Creality |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6977726812306 |
Delivery options to:
Choose countryThe Creality SparkX i7 Combo is an FFF (Fused Filament Fabrication) 3D printer equipped with the CFS Lite module for multicolor printing and automated systems that simplify operation.
High Print Speed and Motion Stability
With a maximum print speed of up to 500 mm/s and acceleration up to 10 000 mm/s², the printer accelerates project turnaround. Input Shaping and Pressure Advance technologies stabilize the print head during rapid movements to maintain surface quality.
Automatic Setup and AI Monitoring
The printer includes fully automatic bed leveling and an intuitive 2.85-inch color touchscreen interface. Connectivity options include Wi-Fi 2.4 GHz and USB drive transfer.
- Integrated 720p AI camera with lighting for live print inspection
- Defect detection for spaghetti errors, air printing, filament run-out, and tangling
- Power loss resume functionality
Quick-Swap Hotend and Filament Compatibility
A quick-change hotend allows tool-free maintenance. The default 0.4 mm nozzle can be swapped with 0.2, 0.6, or 0.8 mm nozzles. The system supports PLA, PETG, PLA-CF, and TPU (64D or harder) filaments.
CFS Lite Module for Multicolor Printing
The included CFS Lite module holds up to four filament spools at once for multicolor prints. It features automatic Creality RFID spool recognition, seamless spool-to-spool refilling, dedicated feed motors, and tangle detection.
| Manufacturer | Creality |
|---|---|
| Model | SparkX i7 Combo |
| Printing technology | Fused Filament Fabrication (FFF) |
| Build volume | 260 × 260 × 255 mm |
| Print speed | up to 500 mm/s |
| Acceleration | up to 10 000 mm/s² |
| Print accuracy | 100 ± 0.1 mm |
| Layer height | 0.05 – 0.3 mm |
| Filament diameter | 1.75 mm |
| Supported materials | PLA, PETG, PLA-CF, TPU (64D or harder) |
| Nozzle diameter | 0.4 mm (compatible with 0.2 / 0.6 / 0.8 mm) |
| Nozzle temperature | up to 300°C |
| Bed temperature | up to 100°C |
| Extruder | Direct Drive |
| Hotend | quick tool-free replacement |
| Build plate | double-sided PEI sheet (gold texture) |
| Leveling | Fully automatic |
| Camera | AI 720p with lighting |
| Error detection | Spaghetti detection, air printing detection, filament run-out, filament tangle detection |
| Resume printing after power loss | Yes |
| Connectivity | USB Drive / Wi-Fi 2.4 GHz |
| Communication port | RS-485 (6-pin) |
| Internal memory | 8 GB EMMC |
| File formats | G-code / 3MF |
| Software | Creality Print 6.3 or newer |
| System | Creality OS |
| Display | 2.85" color touchscreen |
| Status backlight | RGB |
| Interface Languages | including English, German, Spanish, French, Italian, Portuguese, Russian, Turkish, Japanese, Korean, Arabic, Chinese |
| Power Supply | 100–240 V AC 50/60 Hz |
| Rated power | 700 W (220 V) / 400 W (110 V) |
| Printer dimensions | 470 × 423 × 456 mm |
| Printer weight | 9.12 kg |
| CFS Lite compatibility | SparkX i7 |
| CFS Lite filament slots | 4 |
| CFS Lite multicolor printing support | Yes |
| CFS Lite compatible filaments | PLA, PETG, PLA-CF, TPU (64D or harder) |
| CFS Lite filament diameter | 1.75 ± 0.05 mm |
| CFS Lite compatible spools | 1 kg (diameter 195–202 mm, width 42–68 mm) |
| CFS Lite automatic filament identification | Yes (Creality RFID) |
| CFS Lite automatic filament refilling | Yes |
| CFS Lite filament shortage detection | Yes |
| CFS Lite tangle detection | Yes |
| CFS Lite power supply | 24 V DC from the printer via RS-485 |
| CFS Lite rated power | 10 W |
| CFS Lite dimensions | 362 × 227 × 364 mm |
| CFS Lite weight | 3.42 kg |
What is the build volume of the Creality SparkX i7?
The build volume is 260 × 260 × 255 mm.
How many filaments does the CFS Lite module support?
The CFS Lite module has 4 spool slots, allowing up to 4 different filaments to be loaded simultaneously for multicolor printing.
Which filament types can be used with this setup?
The printer and CFS Lite module support 1.75 mm PLA, PETG, PLA-CF, and TPU (rated 64D or harder).
