QiDi Polar Cooler Extruder Cooler for Q2 / Max4 Series
Price: 211.40 €
| Products ID: | 177254 |
|---|---|
| Manufactured by: | QiDi |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 744581223334 |
Delivery options to:
Choose country

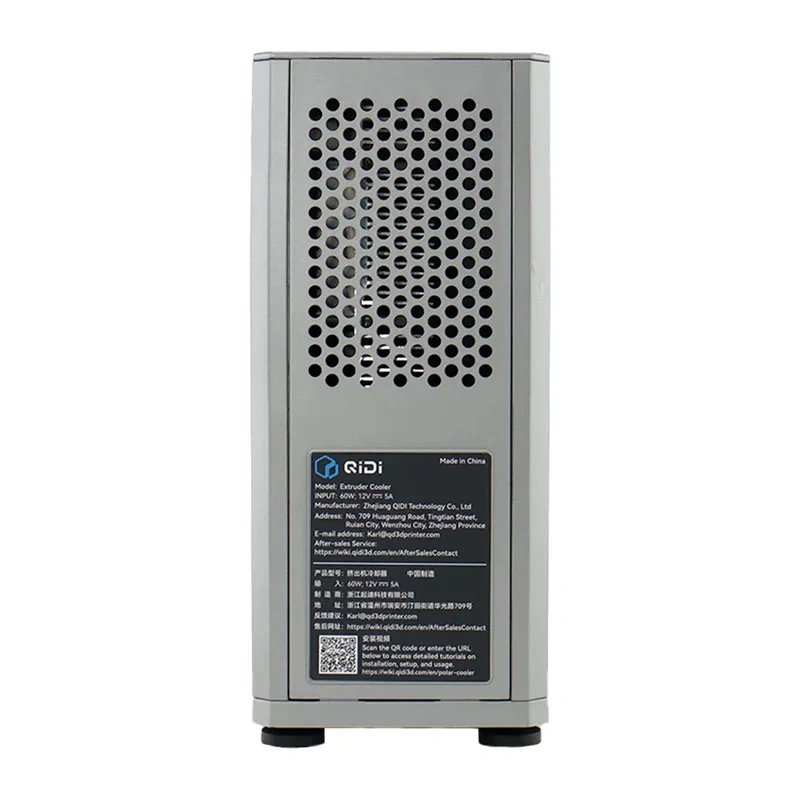

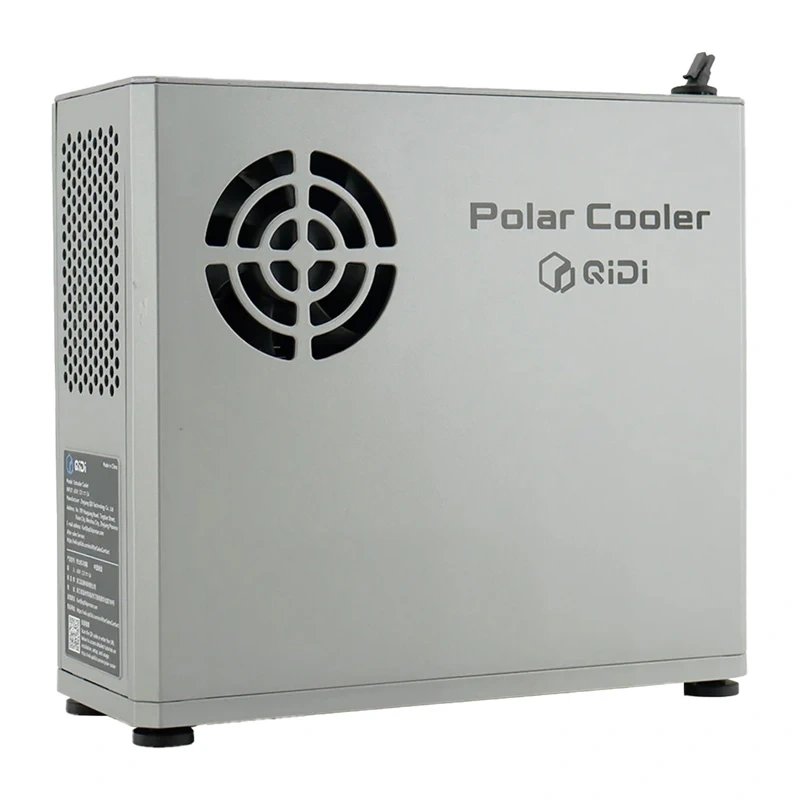

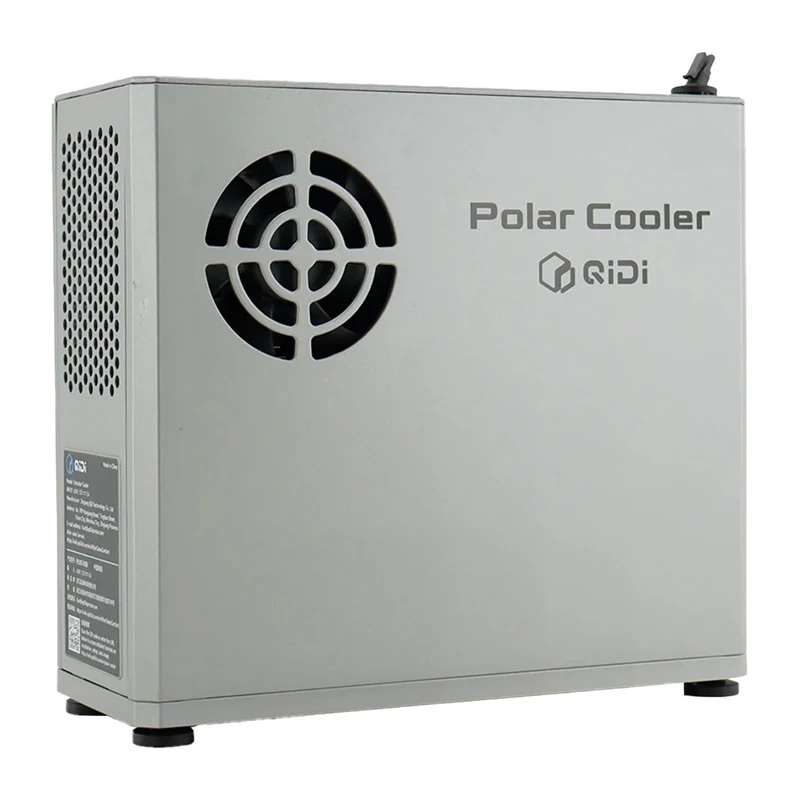

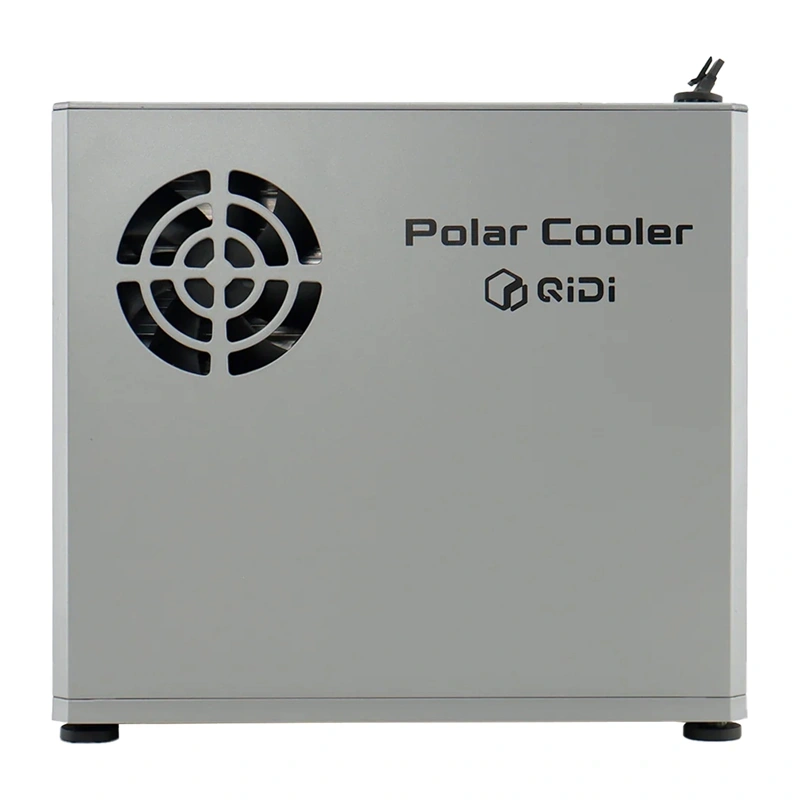

The QiDi Polar Cooler is an active extruder cooling system designed for QiDi Q2 and Max4 series 3D printers to enhance temperature stability and prevent clogging.
Key Features
- Direct cool-air blowing system for efficient extruder cooling
- Reduces extruder clogging frequency by up to 90%
- Built-in condensate filter delivers clean, dry airflow
- Temperature control range of 5–10 ℃ at the air outlet
- Works alongside active airflow control and chamber heating
| Manufacturer | QiDi |
|---|---|
| Model | PCM4-Q2 |
| Dimensions | 234 x 92 x 214 mm³ |
| Weight | 1.6 kg |
| Materials | housing: ABS, hose: silicone (5x7) |
| Control mode | closed-loop |
| Temperature control range | 5–10 ℃ (air outlet) |
| Operating ambient temperature | 0–65 ℃ (the chamber temperature must not exceed the material’s softening temperature. For PLA, maximum 45 °C) |
| Noise level | 54 dB (at a distance of 1 meter in the horizontal plane) |
| Airflow | 2.8–3.2 mph |
| Heat sink material | Aluminum |
| Heat sink dimensions | 100 × 95 × 25 mm³ |
| Cooling fan power | 4 W |
| Quiet air pump power | 8.4 W |
| Rated voltage | 12 V |
| Rated power | 60 W |
Which 3D printers are compatible with the QiDi Polar Cooler?
The cooler is specifically designed for QiDi Q2 and Max4 series 3D printers.
What is included in the package?
The set includes the extruder cooler, power supply, power cable, air intake tube from the Q2, M2.5*6 self-tapping screw, T-shaped cable tie, and user manual.
