QIDI Box Multi-Filament System for Plus 4, 4 Channels
Price: 210.20 €
| Products ID: | 183990 |
|---|---|
| Manufactured by: | QiDi |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 744581223440 |
Delivery options to:
Choose country

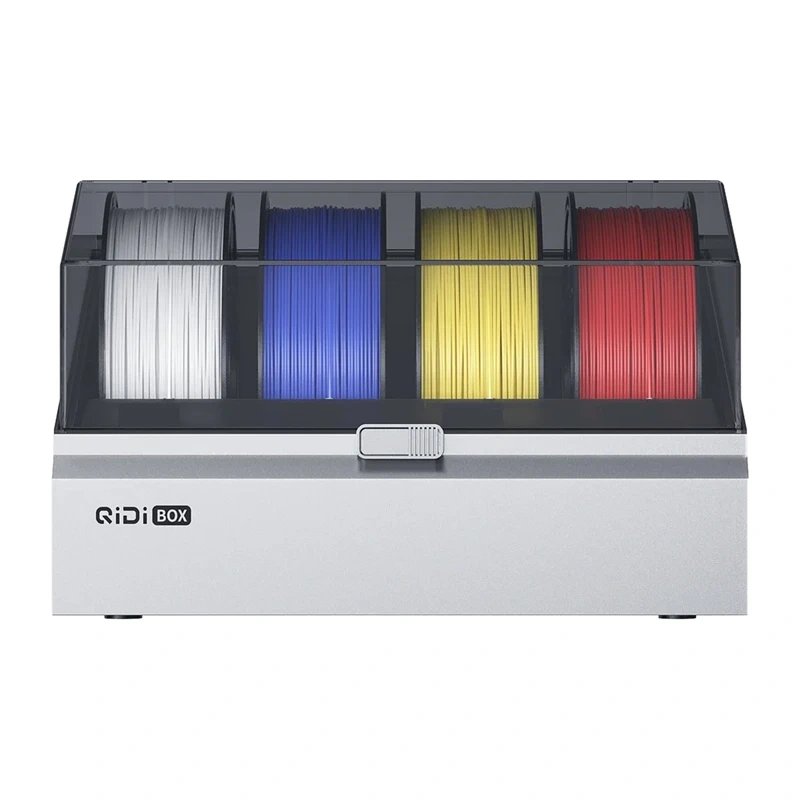

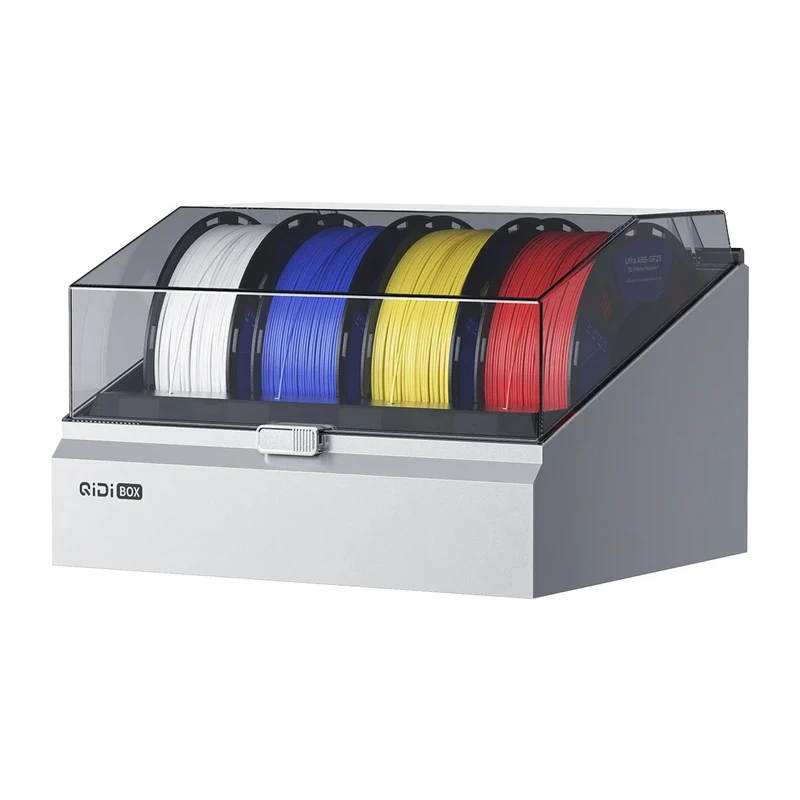

The QIDI Box is a 4-channel multi-filament system designed for the Plus 4 Series, enabling multicolor 3D printing and seamless handling of multiple 1.75 mm materials.
Key Features
- Four independent feeding channels with hardened steel dual gearboxes and type-42 stepper motors
- Filament drying up to 65°C during printing combined with airtight storage
- Real-time temperature and humidity monitoring viewable on screen and in QIDI Studio
- Automatic spare spool changeover with tangle, jam, and runout detection
- NFC recognition for compatible QIDI filaments
- Expandable up to 4 units for handling up to 16 colors or materials
| Manufacturer | QIDI |
|---|---|
| Model | Box |
| Compatibility | Plus 4 |
| Device dimensions | 357 × 300 × 234 mm |
| Weight | 4.35 kg |
| Housing Material | ABS/PC |
| Number of Channels | 4 |
| Maximum Expansion | Up to 4 QIDI Box units with compatible accessories |
| Channel Indicators | 4 independent indicator lights |
| Filament Diameter | 1.75 mm |
| Supported printing filaments | PLA, PETG, ABS, ASA, PET, PA, PC, PVA (dried), BVOH (dried), PP, POM, HIPS, TPU 64D, ABS-CF/GF, PLA-CF/GF, PETG-CF/GF, PPS-CF, PET-CF/GF |
| Unsupported filaments | TPE, standard TPU, TPU 95A, QIDI PAHT-CF, moist PVA and BVOH, select Silk materials (including PLA Silk), PLA Glow-in-the-dark, and materials that are excessively stiff or flexible |
| Supported materials during drying | PLA, ABS, ASA, PA, PC, PET, PETG, PPS, PLA Wood |
| Maximum drying temperature | 65°C |
| Simultaneous drying and printing | yes |
| Airtight filament storage | yes |
| Temperature and humidity monitoring | yes |
| NFC/RFID | yes |
| Filament monitoring | detection of tangles, jams, and filament shortages |
| Automatic switch to a spare spool | Yes |
| Compatible spool width | 50–72 mm |
| Compatible spool diameter | 195–202 mm |
| Power supply | 110 V or 220–240 V AC, 50/60 Hz, depending on regional version |
| Maximum rated power | 245 W |
What spool sizes are compatible with the QIDI Box?
The QIDI Box accommodates spools with a width of 50–72 mm and a diameter of 195–202 mm using 1.75 mm filament.
What items are included in the package?
The set includes the QIDI Box for Plus 4, power cord, 8–4-pin signal cable, BOX Hub signal cable, BOX Hub, five 1000 mm PTFE tubes, 4 desiccant packets, and 2 PTFE tube clamps.
Can the QIDI Box dry filament while printing?
Yes, the device supports simultaneous drying and printing with a maximum drying temperature of up to 65°C.
