QIDI Box Multi-Filament System for Max 4
Price: 210.20 €
| Products ID: | 183992 |
|---|---|
| Manufactured by: | QiDi |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 744581222672 |
Delivery options to:
Choose country

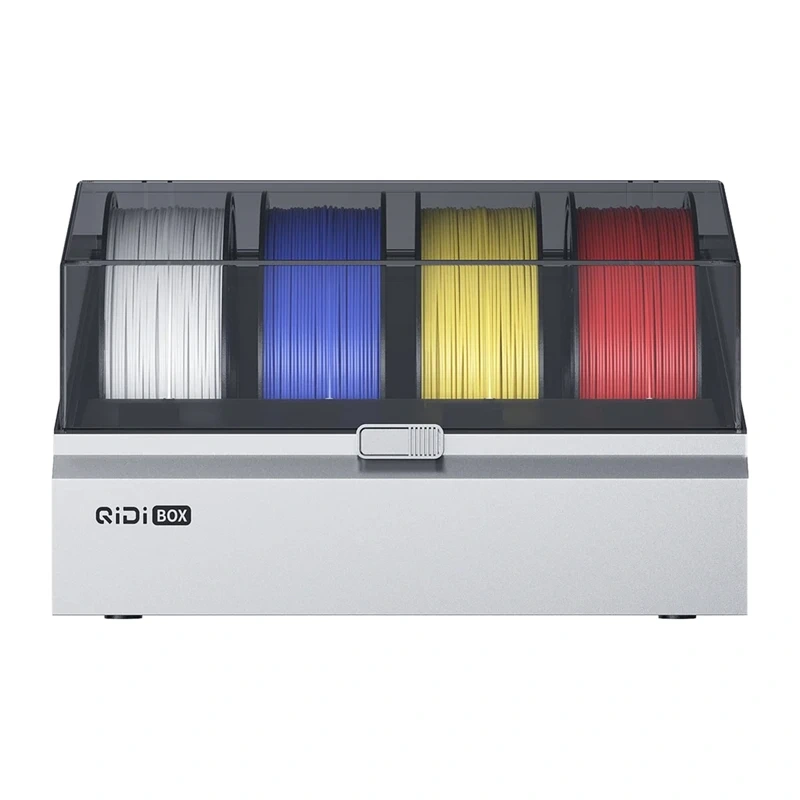

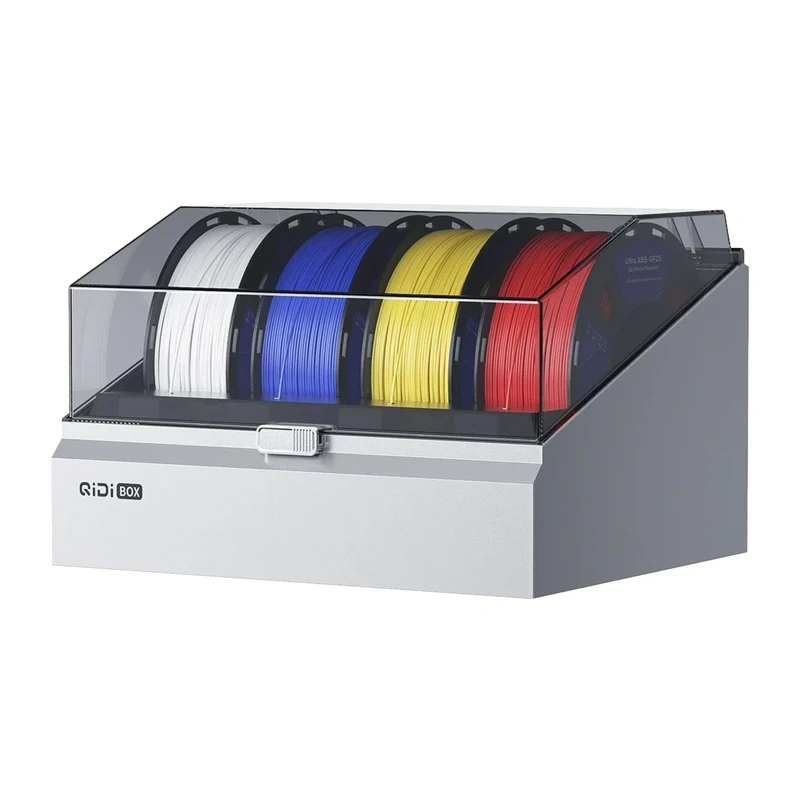

The QIDI Box for the Max 4 Series is a 4-channel multi-filament system engineered for multicolor 3D printing and multi-material projects. It enables simultaneous drying during printing, automated spool switching, and live monitoring of temperature and humidity.
Key Features
- 4 independent channels with dual hardened steel gearboxes
- Filament drying up to 65°C during printing
- Automatic switching to a spare spool when material runs out
- Monitoring for filament tangles, jams, and runouts
- NFC recognition for compatible QIDI filaments
| Manufacturer | QIDI |
|---|---|
| Model | Box |
| Compatibility | Max 4 |
| Device Dimensions | 357 × 300 × 234 mm |
| Weight | 4.35 kg |
| Housing Material | ABS/PC |
| Number of Channels | 4 |
| Maximum Expansion | Up to 4 QIDI Box units with appropriate accessories |
| Channel Indicators | 4 independent indicator lights |
| Filament Diameter | 1.75 mm |
| Supported Filaments | PLA, PETG, ABS, ASA, PET, PA, PC, PVA (dried), BVOH (dried), PP, POM, HIPS, TPU 64D, ABS-CF/GF, PLA-CF/GF, PETG-CF/GF, PPS-CF, PET-CF/GF |
| Unsupported filaments | TPE, standard TPU, TPU 95A, QIDI PAHT-CF, damp PVA and BVOH, select Silk materials (including PLA Silk), glow-in-the-dark PLA, and materials that are excessively stiff or flexible |
| Supported materials during drying | PLA, ABS, ASA, PA, PC, PET, PETG, PPS, PLA Wood |
| Maximum drying temperature | 65°C |
| Simultaneous drying and printing | yes |
| Airtight filament storage | yes |
| Temperature and humidity monitoring | yes |
| NFC/RFID | yes |
| Filament monitoring | detection of tangles, jams, and filament shortages |
| Automatic switch to a spare spool | Yes |
| Compatible spool width | 50–72 mm |
| Compatible spool diameter | 195–202 mm |
| Power supply | 110 V or 220–240 V AC, 50/60 Hz, depending on regional version |
| Maximum rated power | 245 W |
What is included in the package?
The set includes the QIDI Box for Max 4, a power cord, an 8–4-pin signal cable, a BOX Hub signal cable, a BOX Hub, 5 pieces of 1000 mm PTFE tubing, 4 packs of desiccant, and 2 PTFE tubing clamps.
What spool dimensions are supported?
The system accommodates spools with a width of 50–72 mm and an outer diameter of 195–202 mm.
