KNIPEX 97 49 04 Crimping Die for Non-Insulated Plug Connectors
Price: 81.60 €
| Products ID: | 184369 |
|---|---|
| Manufactured by: | Knipex |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4003773030850 |
Delivery options to:
Choose country

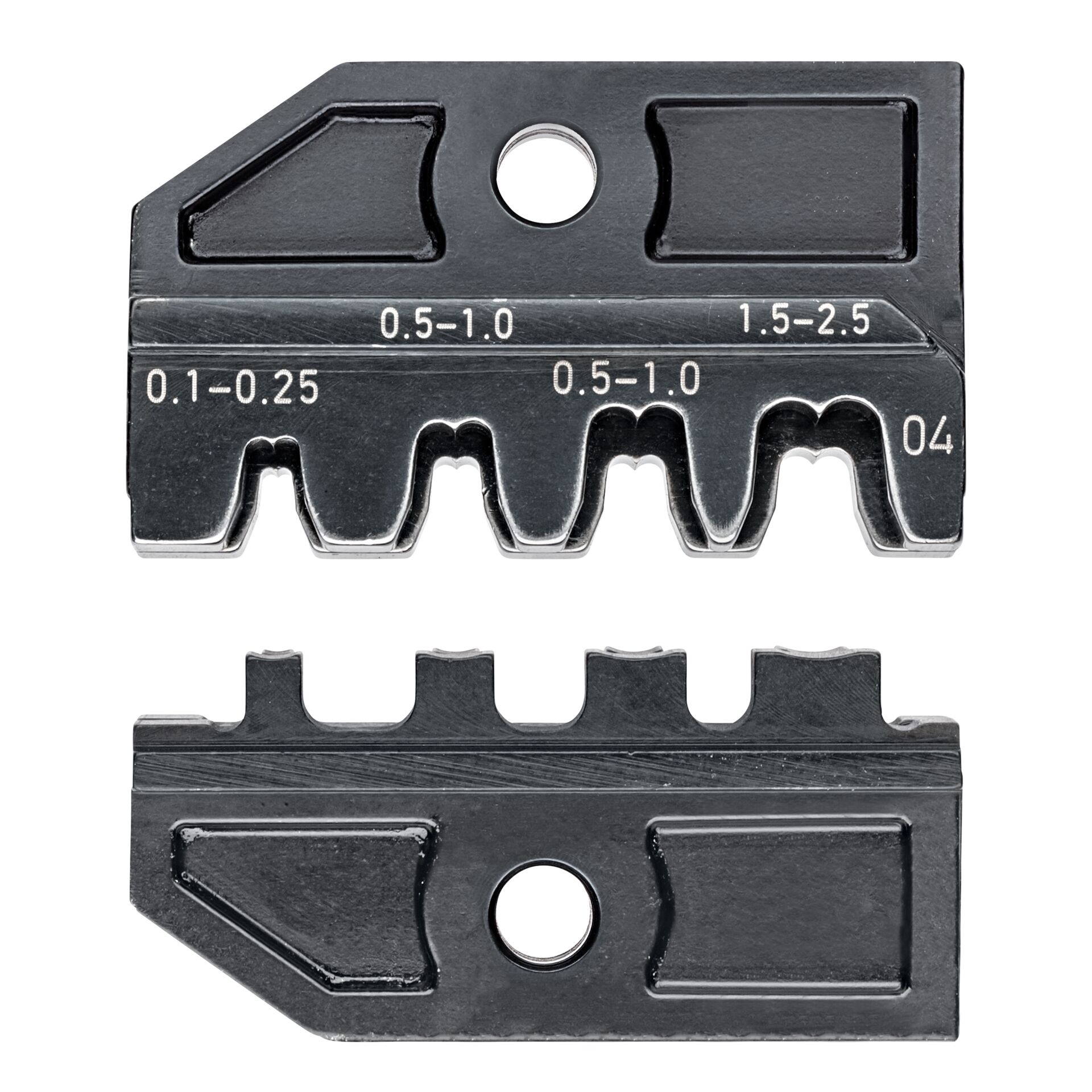

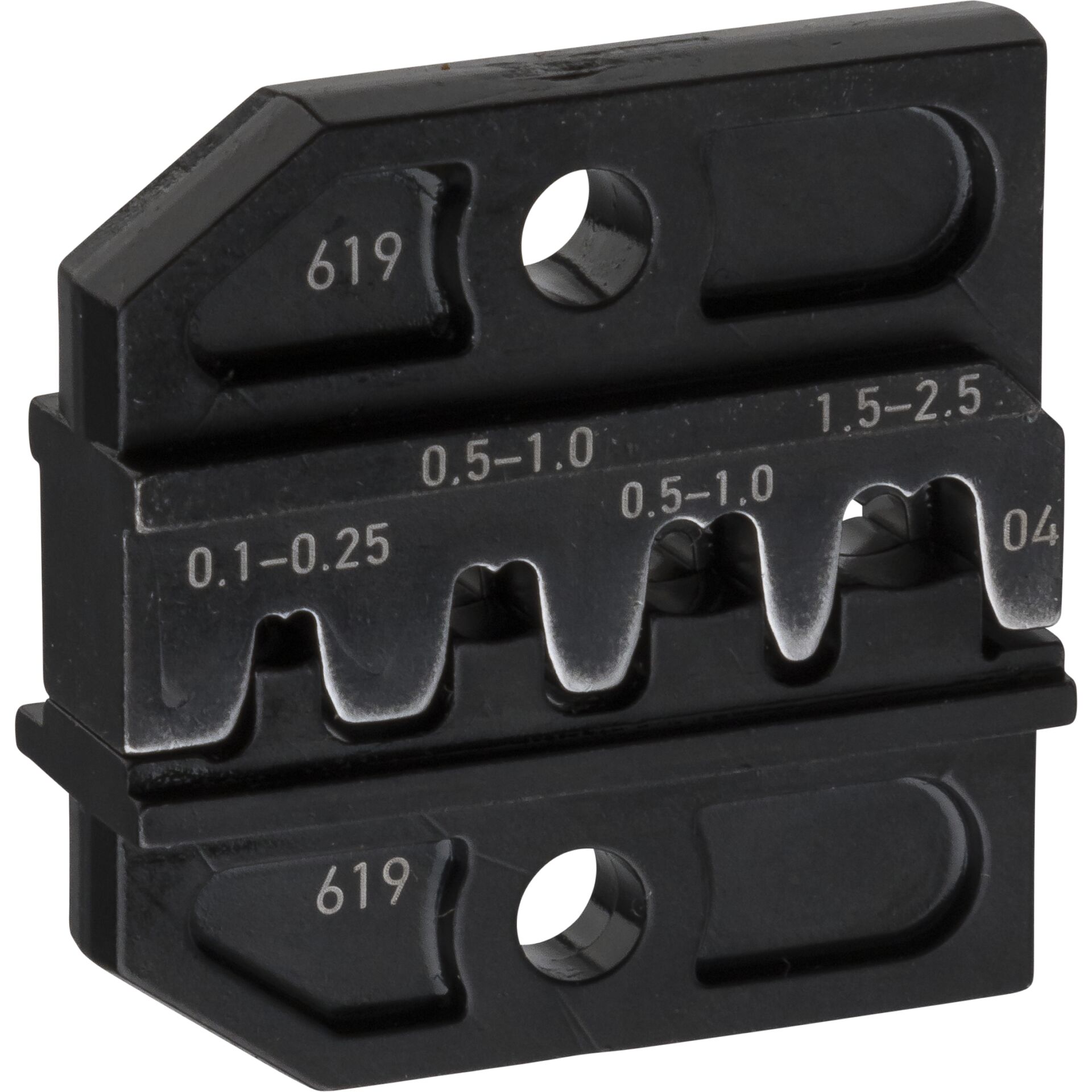

The KNIPEX 97 49 04 crimping die is an interchangeable insert for KNIPEX crimping system pliers, designed for electrical engineering applications with uninsulated open plug connectors.
Key Features
- Insert for KNIPEX crimping system pliers with exchangeable dies
- Capacity for non-insulated open connectors with 2.8 and 4.8 mm width
- Wire cross-section range of 0.1 - 2.5 mm²
- Engineered with 4 crimping nests
| Field of Application | Electrical Engineering |
|---|---|
| Application range | Uninsulated open connectors (2.8 + 4.8 mm connector width) 0.1 - 2.5 mm² |
| Number of nests | 4 |
| Dimensions | 50 x 10 mm |
| Colour | Black |
| Set | No |
| Weight | 42 g |
Which connectors is the KNIPEX 97 49 04 crimping die designed for?
It is designed for uninsulated open plug connectors with a width of 2.8 mm and 4.8 mm and wire cross-sections from 0.1 to 2.5 mm².
Are the crimping system pliers included?
No, the pliers are not included; this product is an interchangeable crimping die insert.
