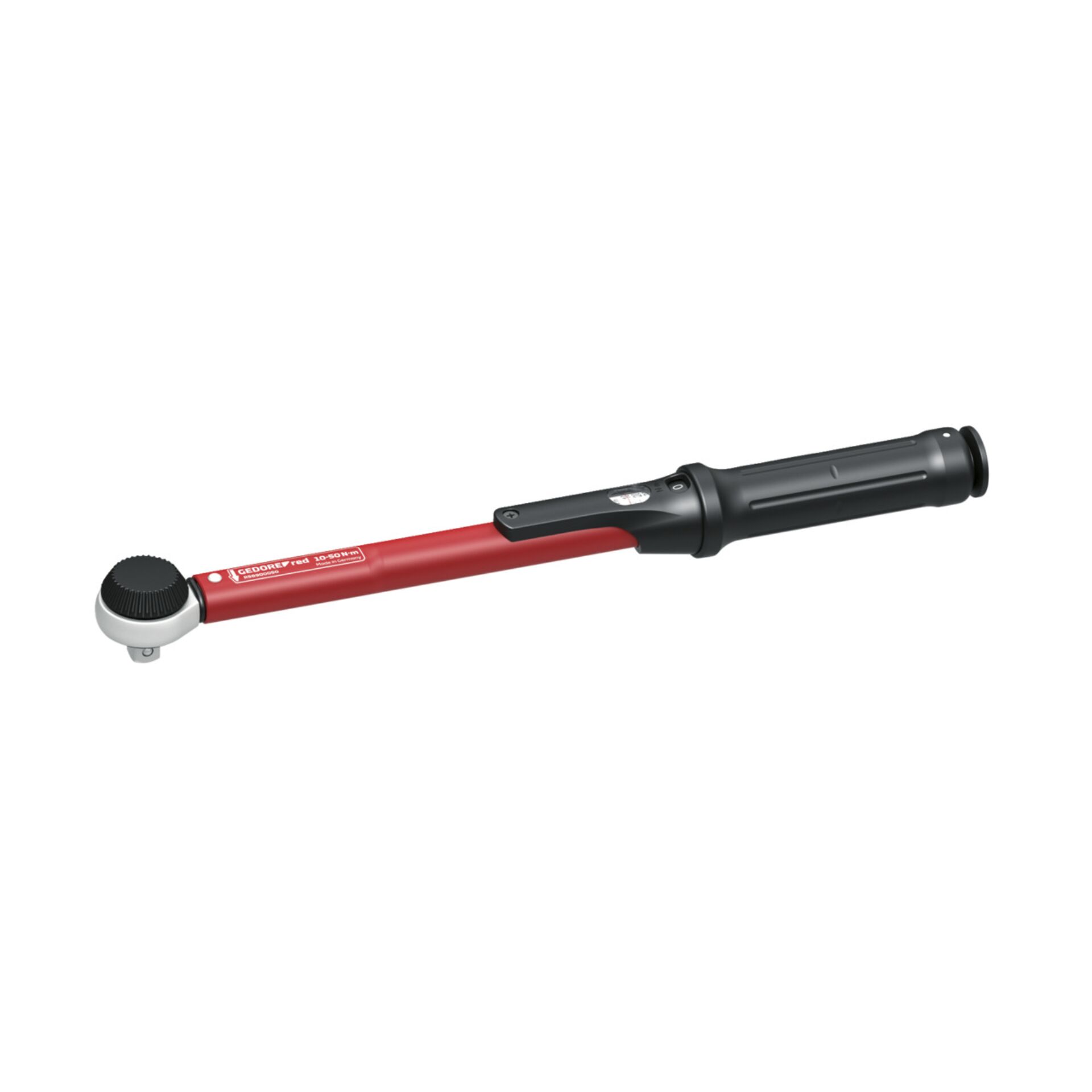

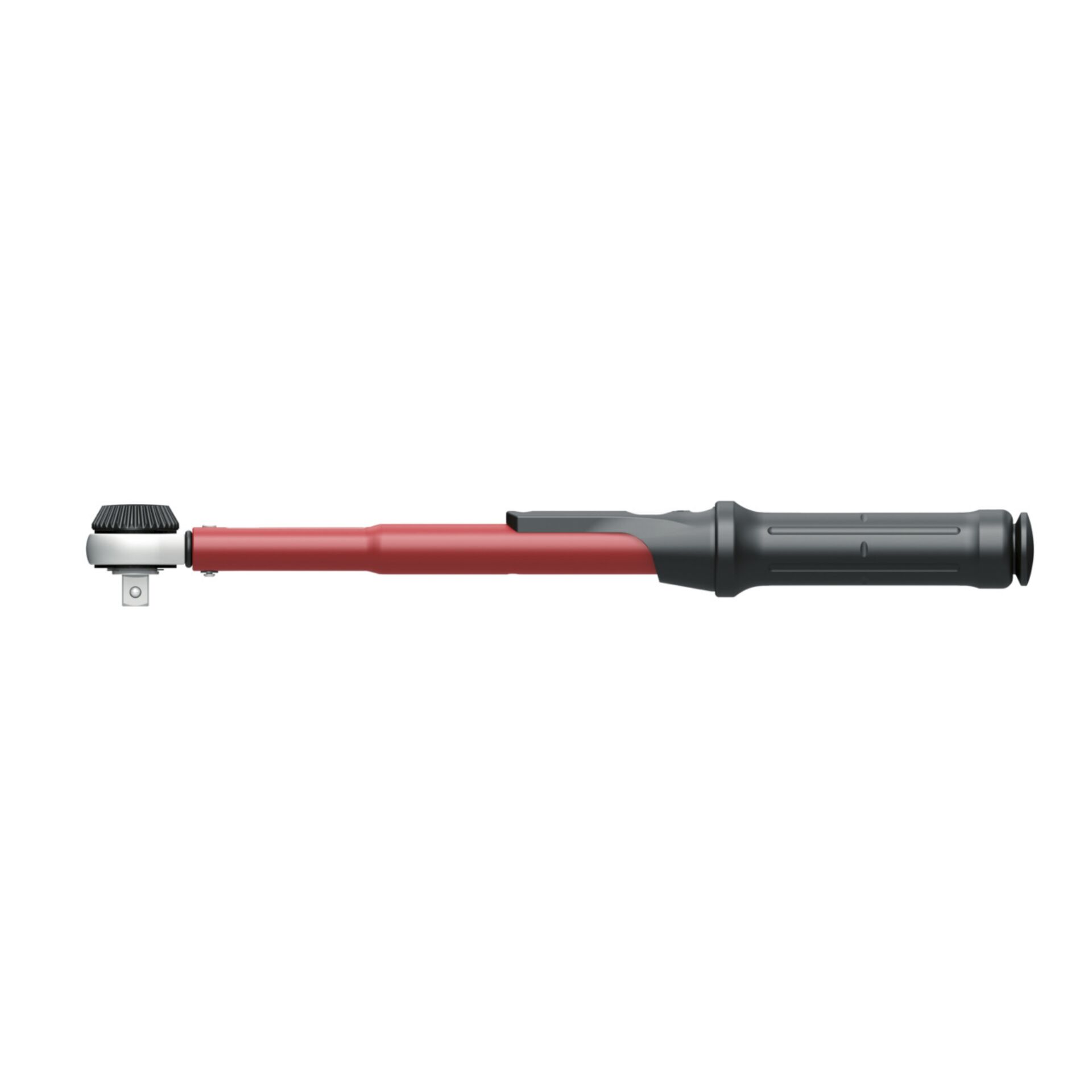

GEDORE red torque wrench 3/8", 10–50 Nm
140.90 €
Products ID: 181187
In supplier warehouse
Available to order: 3 pcs.
Delivery Time 7–15 business days
Delivery options to:
Choose countryThe GEDORE red torque wrench provides controlled tightening from 10 to 50 Nm with a 3/8" square drive. A clearly audible and tactile release indicates when the set torque is reached.
Adjustment and operation
Turn the handle to adjust the torque, then secure the setting with the lock at the end of the handle. A magnifying glass helps with reading the Nm scale, while an additional 1/10 scale supports precise setting.
- Both tightening directions: reposition the push-through square drive for right-hand or left-hand tightening.
- Integrated ratchet: the square drive incorporates a ratchet mechanism.
- Triggering accuracy: ±3% of the set scale value.
This black and red steel wrench conforms to DIN EN ISO 6789. It is supplied as a single tool rather than a set.
| Drive size (inch) | 3/8 |
|---|---|
| Torque | 10–50 Nm |
| Square drive (inch) | 3/8 |
| Set | No |
| Number of parts | 1 |
| Material | Steel |
| Colour | Black / red |
| Type | Torque wrench |
| Triggering accuracy | ±3% of the set scale value |
| Tightening directions | Right-hand and left-hand, by repositioning the push-through square drive |
| Ratchet function | Integrated |
| Torque adjustment | By turning the handle; lock at the end of the handle |
| Scale | Nm scale with magnifying glass and additional 1/10 scale |
| Release indication | Audible and tactile |
| Standard | DIN EN ISO 6789 |
| EAN | 4060833018715 |
|---|
Can it tighten in both directions?
Yes. Repositioning the push-through square drive allows right-hand and left-hand tightening.
How is the torque setting secured?
Adjust the torque by turning the handle, then secure it using the lock at the end of the handle.
