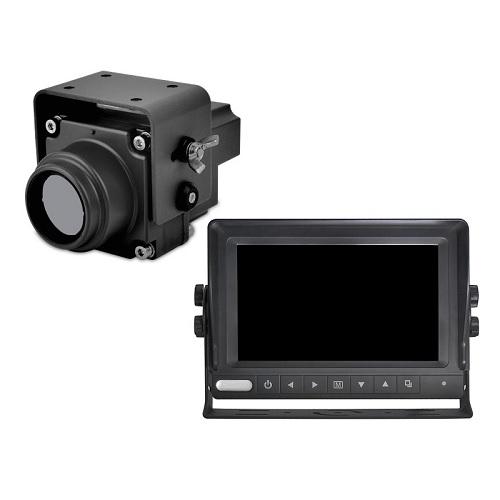

Thermal Imaging Car Camera and 7" Waterproof Night Vision Monitor
Price: 2594.40 €
| Products ID: | 170709 |
|---|---|
| Manufactured by: | Dali |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000991990 |
Delivery options to:
Choose countryThermal imaging camera and 7-inch TFT-LCD color monitor night vision system designed for safe vehicle operation in challenging visibility conditions.
Key Features
- 384x288 uncooled FPA thermal microbolometer sensor
- Visibility and detection range up to 350m through fog, smoke, and dust
- 7-inch IP69k waterproof TFT-LCD screen with 800x480 resolution
- IP67 water and dust resistant camera enclosure
- Supports 2 CVBS video camera inputs with OSD menu controls
- Camera operating voltage DC 12-32V with up to 6W power consumption
| Camera sensor resolution | 384x288 |
|---|---|
| Sensor type | Uncooled FPA |
| Camera field of view (FOV) | 37.9°×28.5° |
| Focal length | Fixed, >= 6m |
| Wavelength | 8-14 microns |
| Camera power supply | DC 12-32V |
| Camera power consumption | Up to 6W |
| Camera protection rating | IP67 |
| Monitor screen size | 7 inches |
| Monitor display type | TFT-LCD |
| Monitor resolution | RGB 800x480 |
| Monitor brightness | 400 cd/m² |
| Monitor protection rating | IP69k |
| Video inputs | 2x CVBS |
What is the visibility range of the thermal camera?
The camera provides visibility and traffic detection up to 350 meters without any light source.

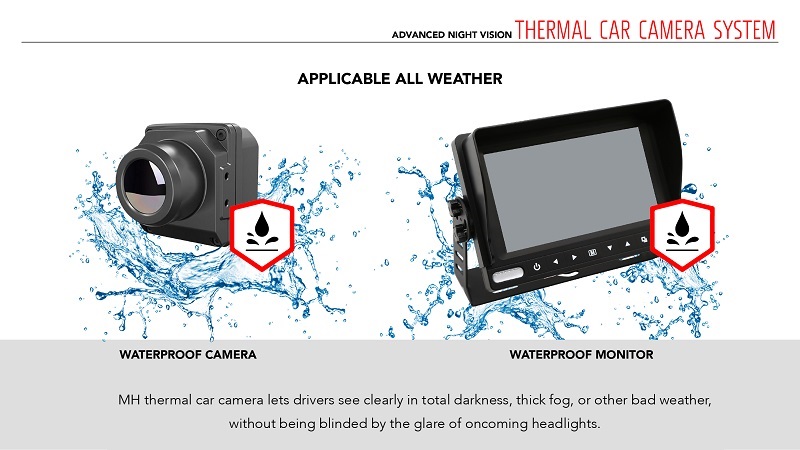

What are the waterproof ratings of the camera and monitor?
The camera features an IP67 rating, while the 7-inch monitor is rated IP69k.
What video inputs does the monitor support?
The monitor supports two CVBS camera video inputs.
