FNIRSI DPS150 Programmable DC Mini Laboratory Power Supply 30V 5A 150W

FNIRSI DPS150 Programmable DC Mini Laboratory Power Supply 30V 5A 150W — image 3

Price: 66.20 €

Products ID:	175968
Manufactured by:	Fnirsi
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	5907085527239

Delivery options to:

Choose country

FNIRSI DPS150 Programmable DC Mini Laboratory Power Supply 30V 5A 150W

The FNIRSI DPS150 is a compact, programmable DC laboratory power supply offering regulated voltage up to 30 V and current up to 5 A with a maximum output of 150 W. It is equipped with a 2.8-inch color IPS screen and supports power input from standard DC sources as well as USB-C Power Delivery and Quick Charge adapters.

Key Features

Adjustable output: 0–30 V voltage and 0–5 A current with up to 150 W power

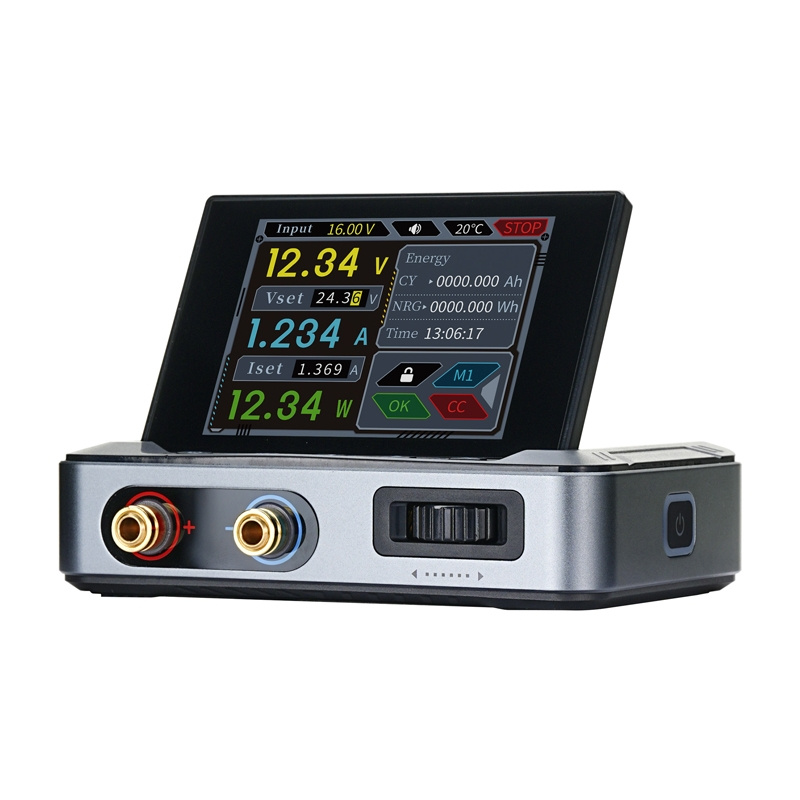

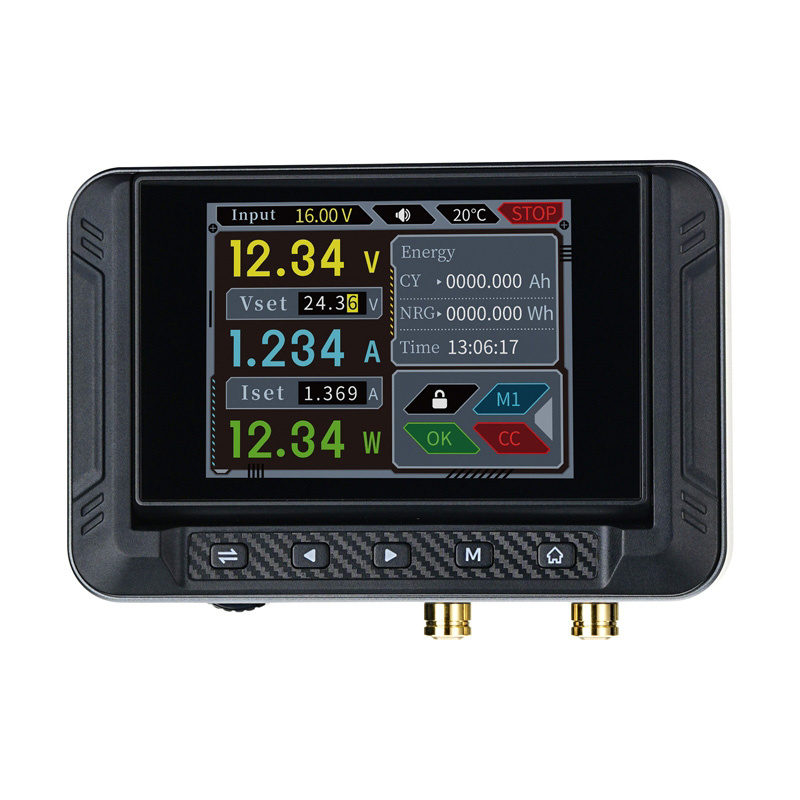

2.8-inch color IPS display with 320×240 px resolution and 90° screen rotation

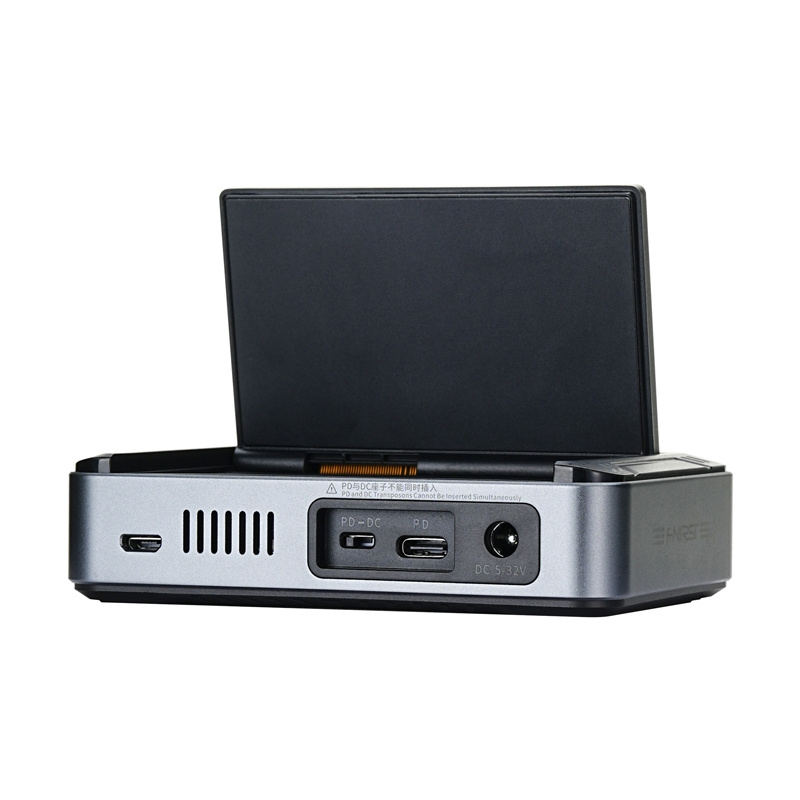

Flexible input power via DC 5–32 V jack or USB-C supporting PD and QC
Comprehensive protection against overvoltage (OVP), overcurrent (OCP), short circuit (SCP), and overheating (OTP)
Storage for up to 6 user-defined voltage and current presets
Low output ripple below 20 mV and passive cooling via an aluminum chassis

Manufacturer	Fnirsi
Model	DPS-150
Input voltage	DC 5.0 V - 32 V
Input current	100 mA - 5 A
Output voltage	0 - 30 V
Output current	0 - 5 A
Output power	0 - 150 W
Resolution	Voltage: 10 mV; Current: 1 mA
Display	2.8 inches (320×240 px)
Full load efficiency	96.30%
Dimensions	106 × 76 × 28 mm
Weight	Approximately 178 g

What is included in the package?

The package contains the FNIRSI DPS150 power supply, 2 cables with crocodile clamps, a USB cable, and a user manual.

How can the FNIRSI DPS150 be powered?

It can be powered via a standard DC 5–32 V supply or through a USB-C connection using Power Delivery (PD) or Quick Charge (QC) sources such as power banks and chargers.
